DIN Rail Components

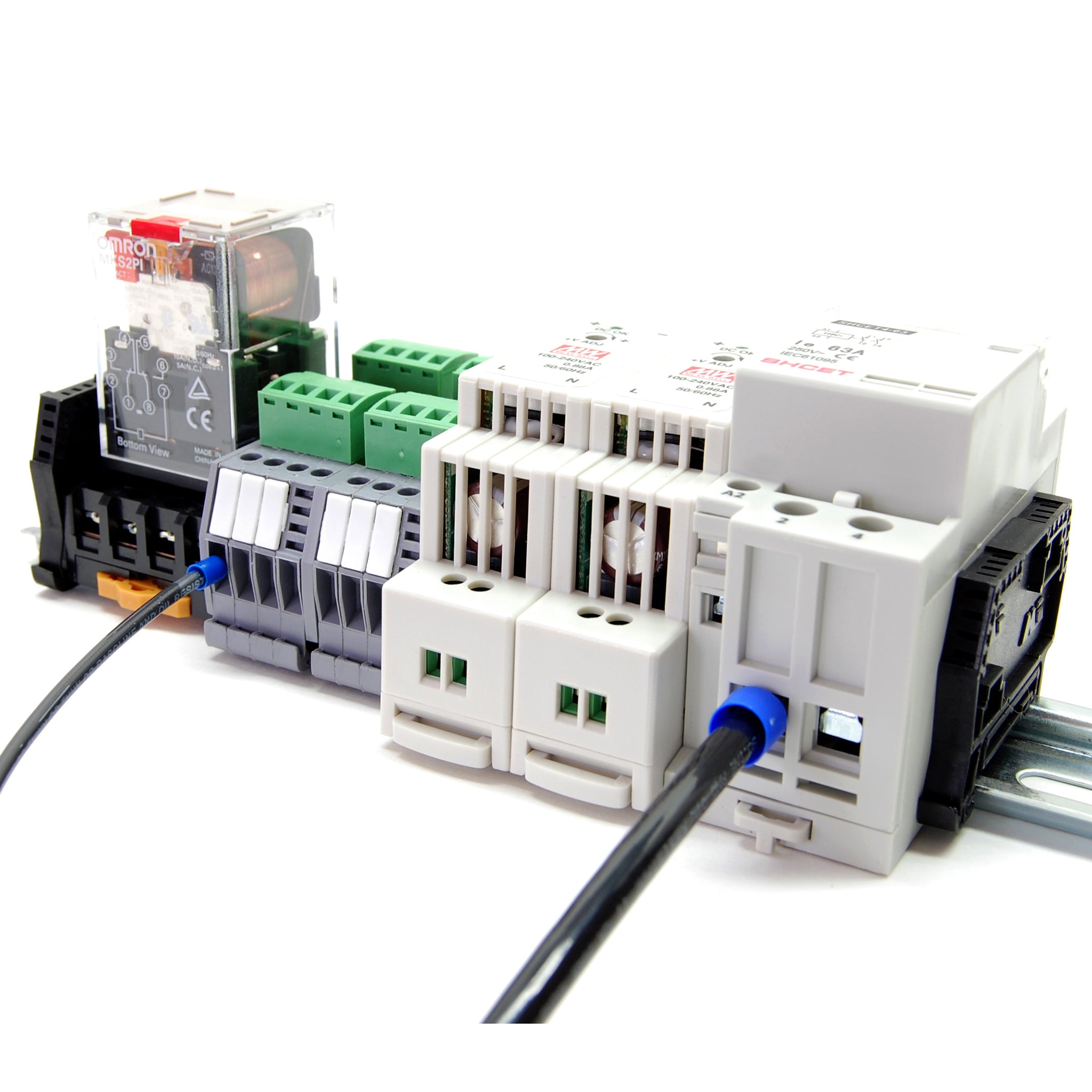

DIN rail components are specially designed to snap in directly to a rail that is attached to an enclosure backplate. Stoppers are used on either end of components to hold them in place.
Functionality and quality is the same as standard bolt mounted parts. Advantages usually include smaller part size and quicker installation for an experienced user (those new to electrical work may find DIN rail initially confusing). Cost to implement can be higher as specialized tools are sometimes required.
Since DIN rail components do not accept spade or ring type terminals, wire ferrules must be first be attached to stranded wires using a wire ferrule crimper. We do not recommend attaching stranded wires directly to DIN rail components as they may become loose over time.

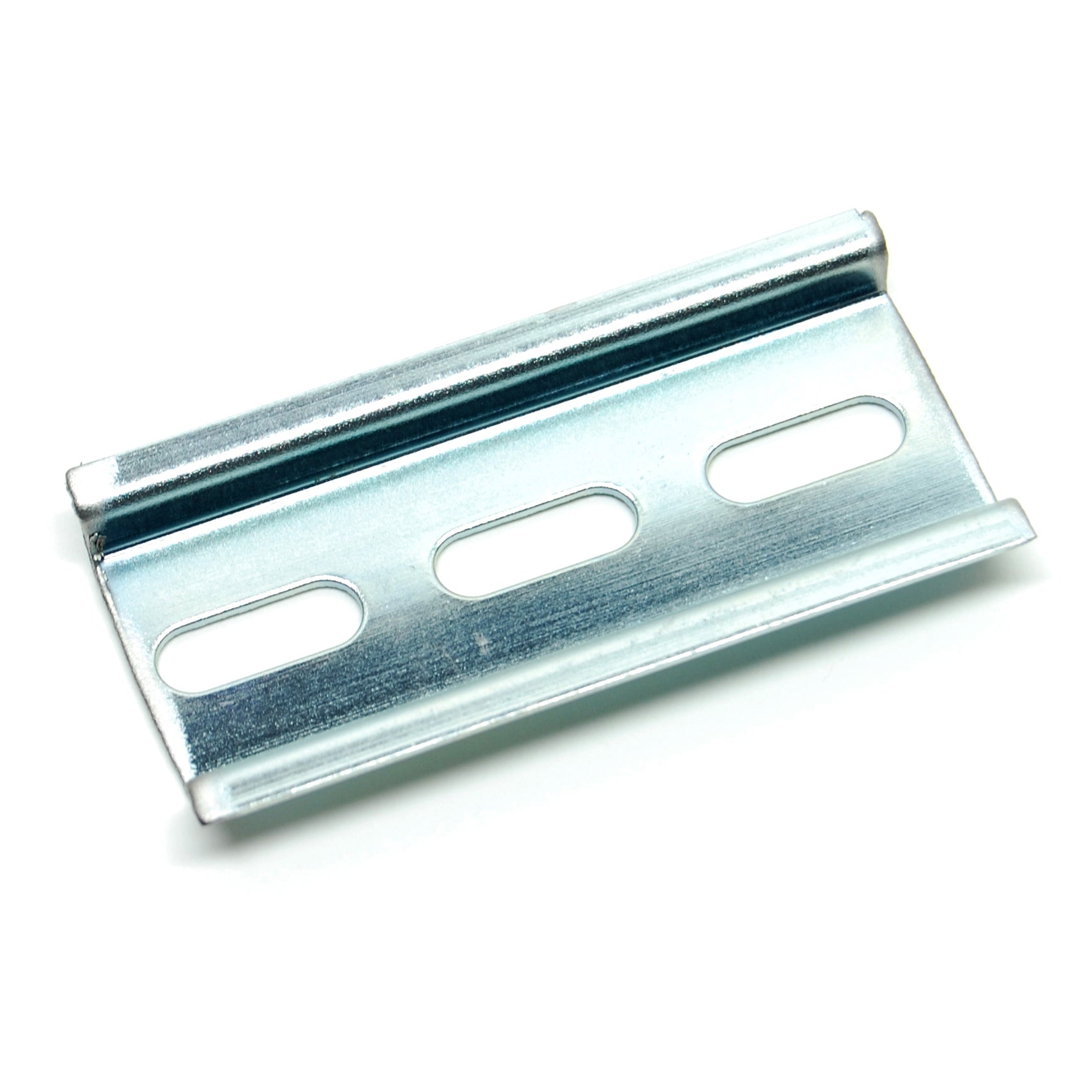

35mm DIN rail
$1.50 USD
35mm DIN rail for mounting DIN rail style components. Sold in lengths of 3, 6, 9 or 12". (12" length fits our 16x16x8" enclosure back plates perfectly)

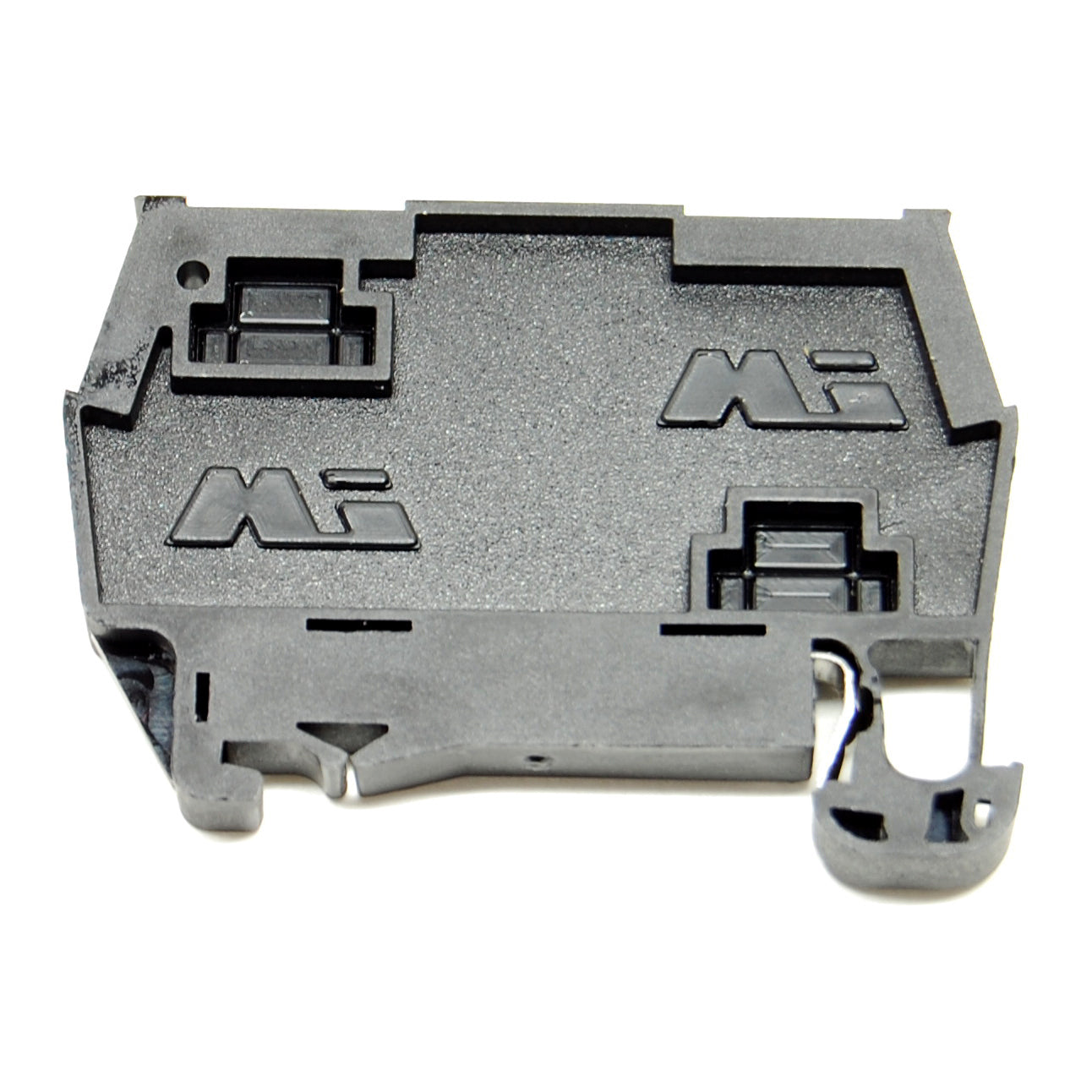

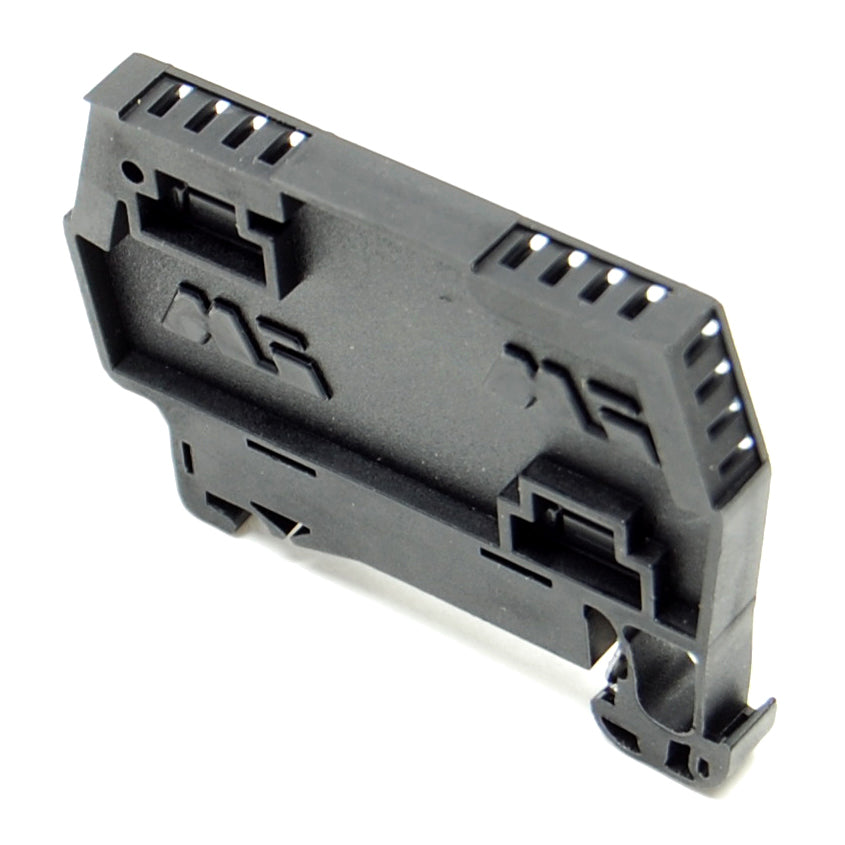

DIN rail stopper (snap)
$1.95 USD
DIN rail stoppers are used for preventing DIN rail devices from sliding. Two are required, one on each end of the DIN rail. 6mm wide. For 35mm DIN Rail. For long DIN rail sections with many components we recommend the DIN...

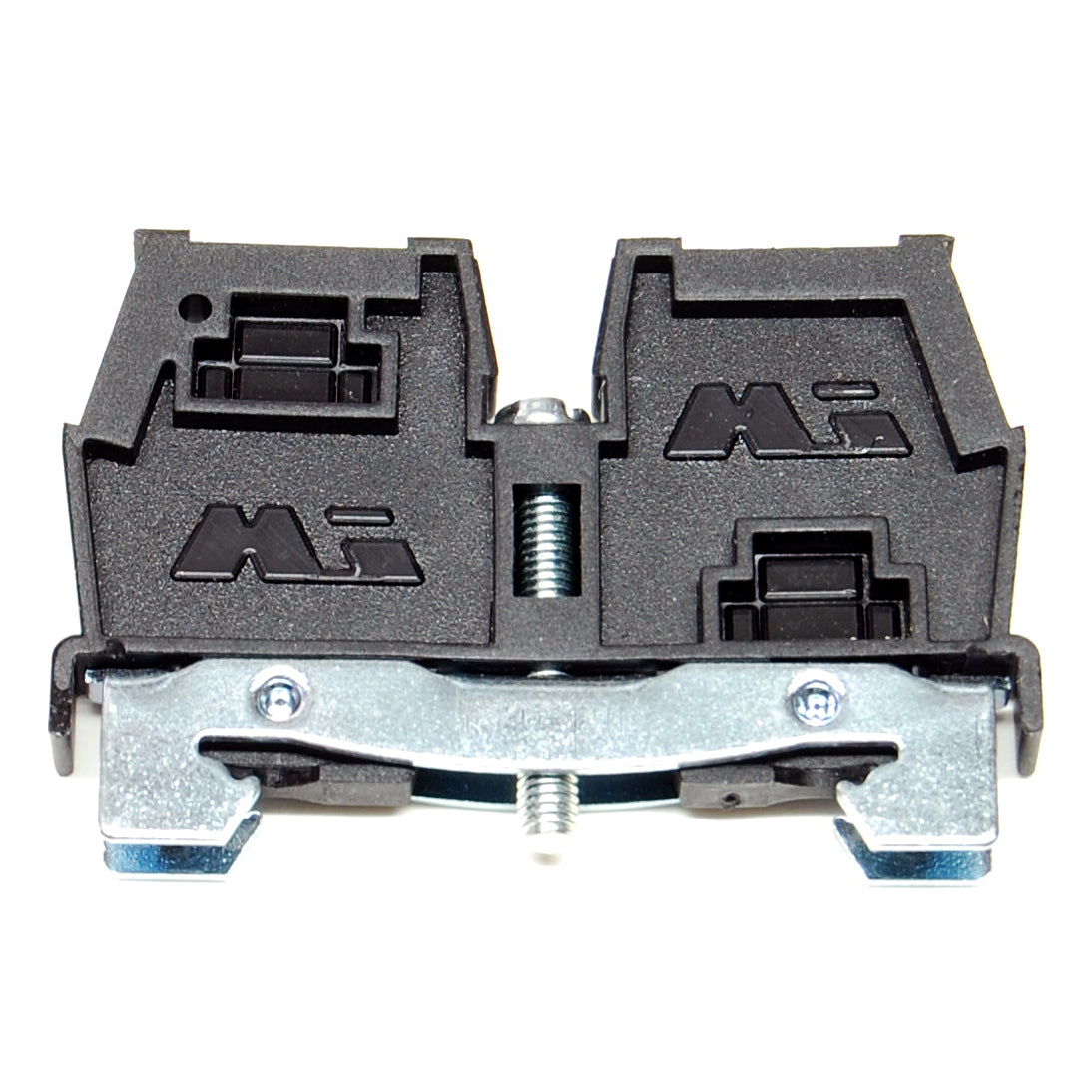

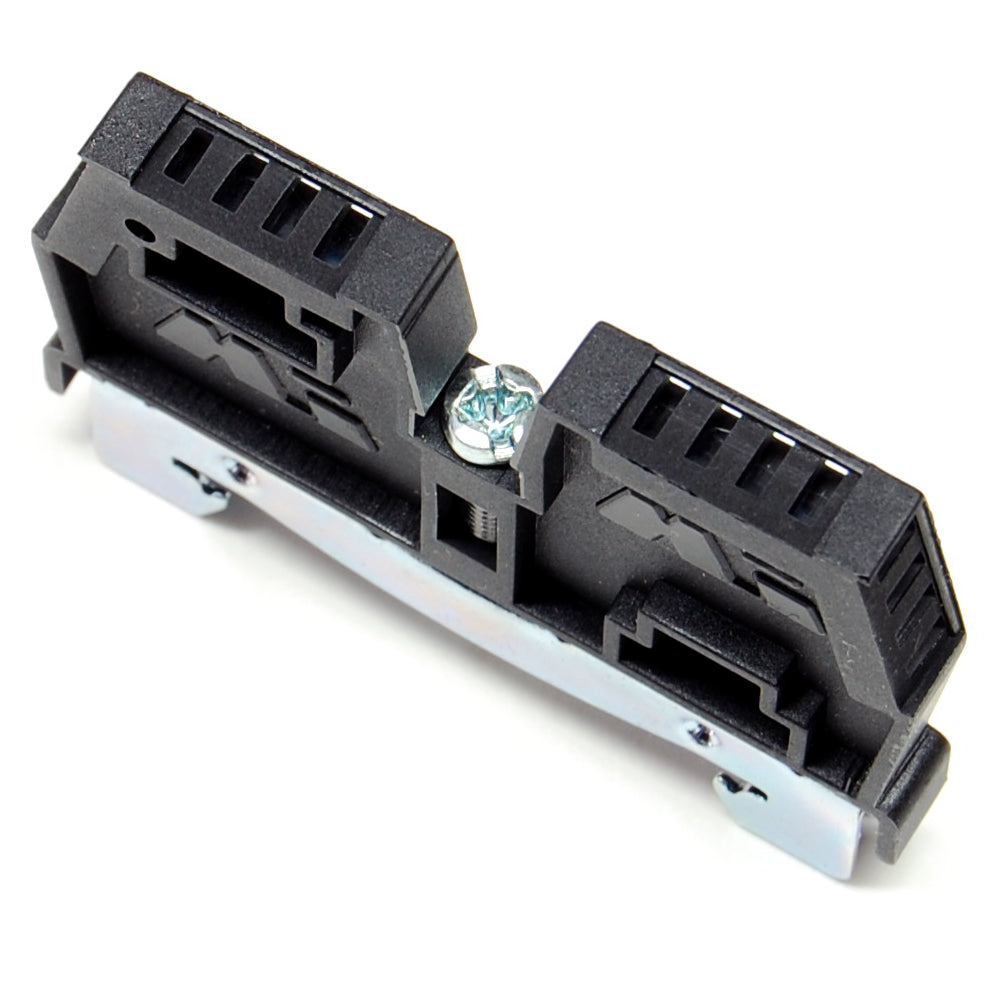

DIN rail stopper (screw)
$1.95 USD
DIN rail stoppers are used for preventing DIN rail devices from sliding. Two are required, one on each end of the DIN rail. 6mm wide. For 35mm DIN Rail.This version uses a screw to secure the end stop in place. Used...

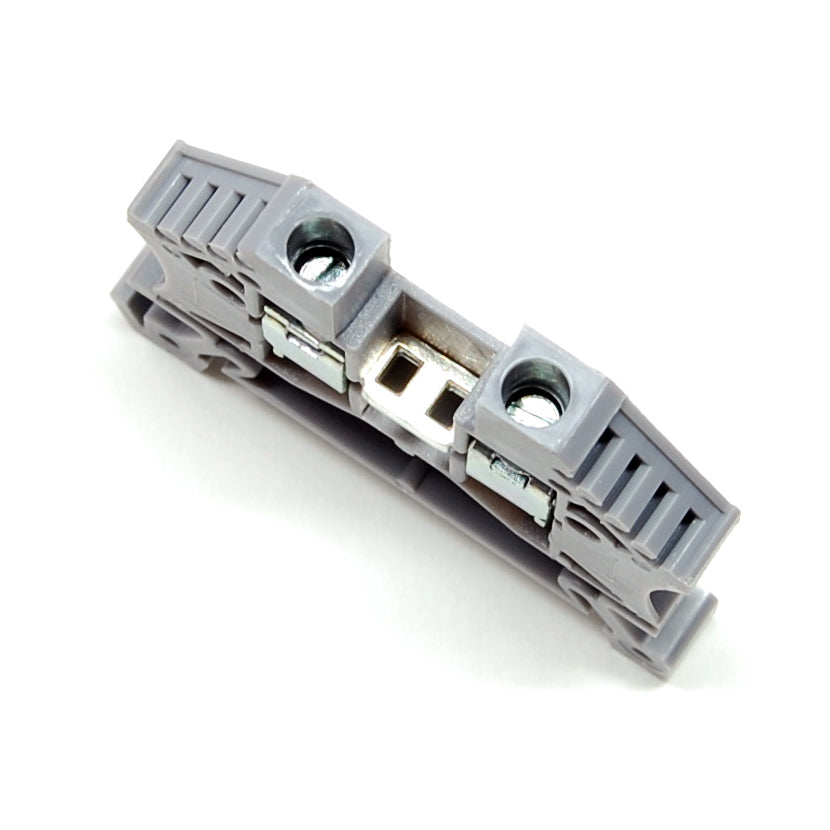

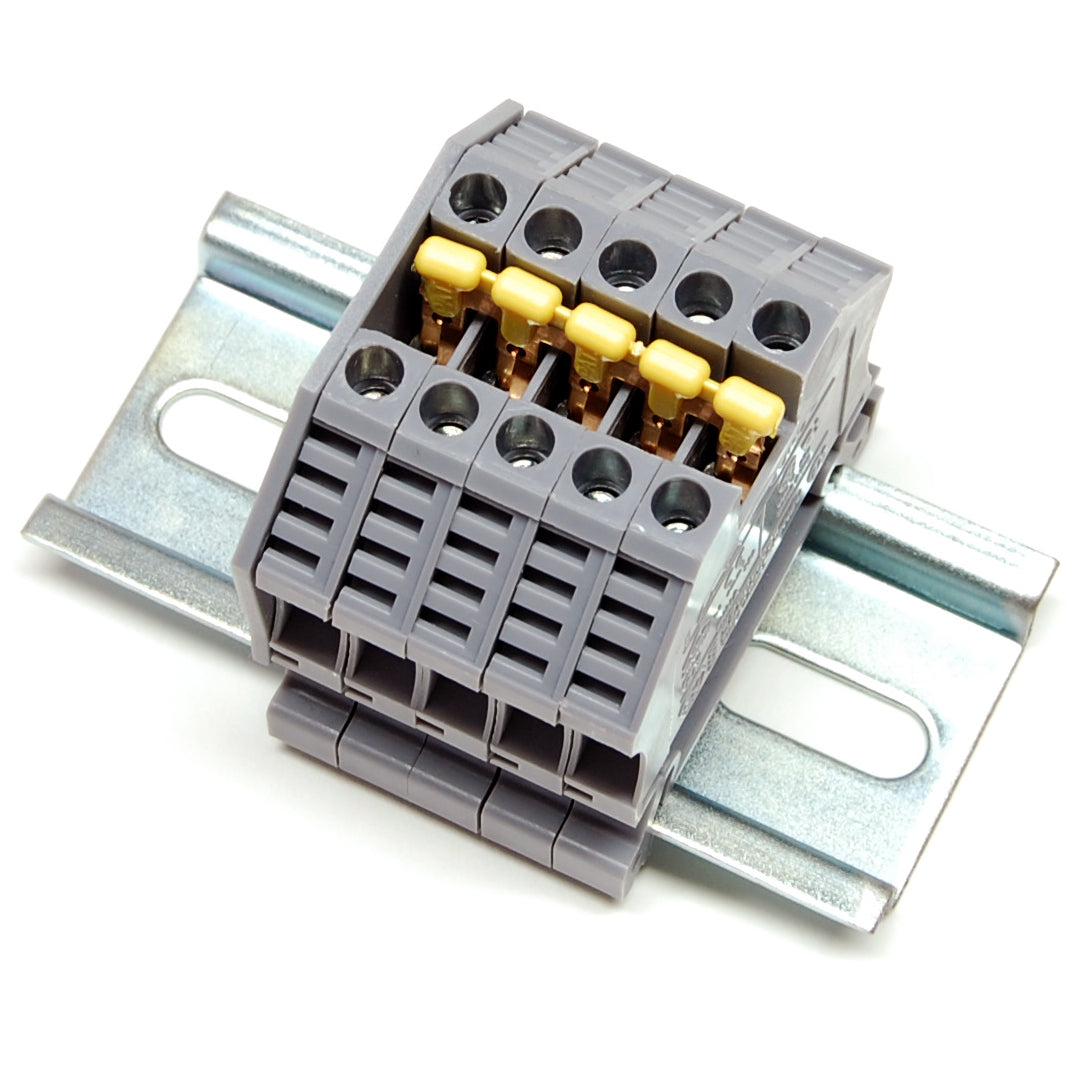

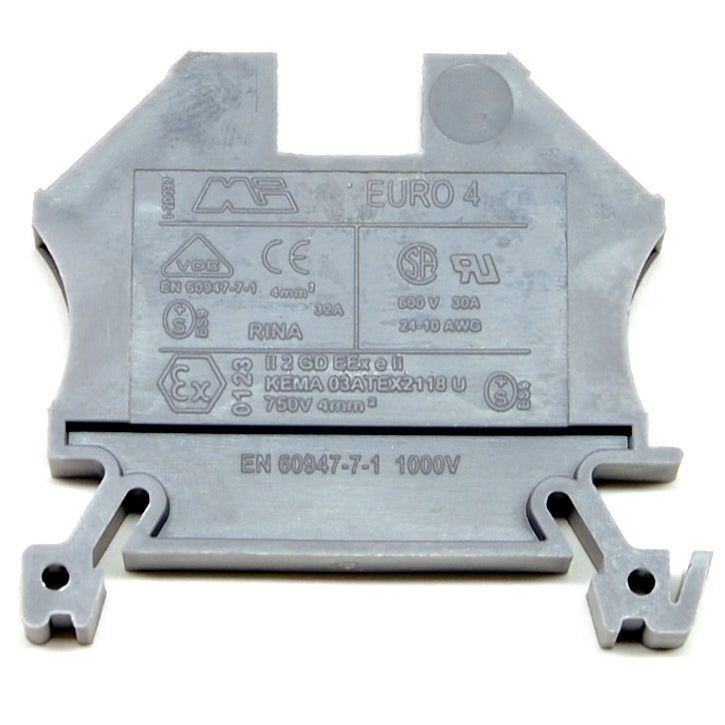

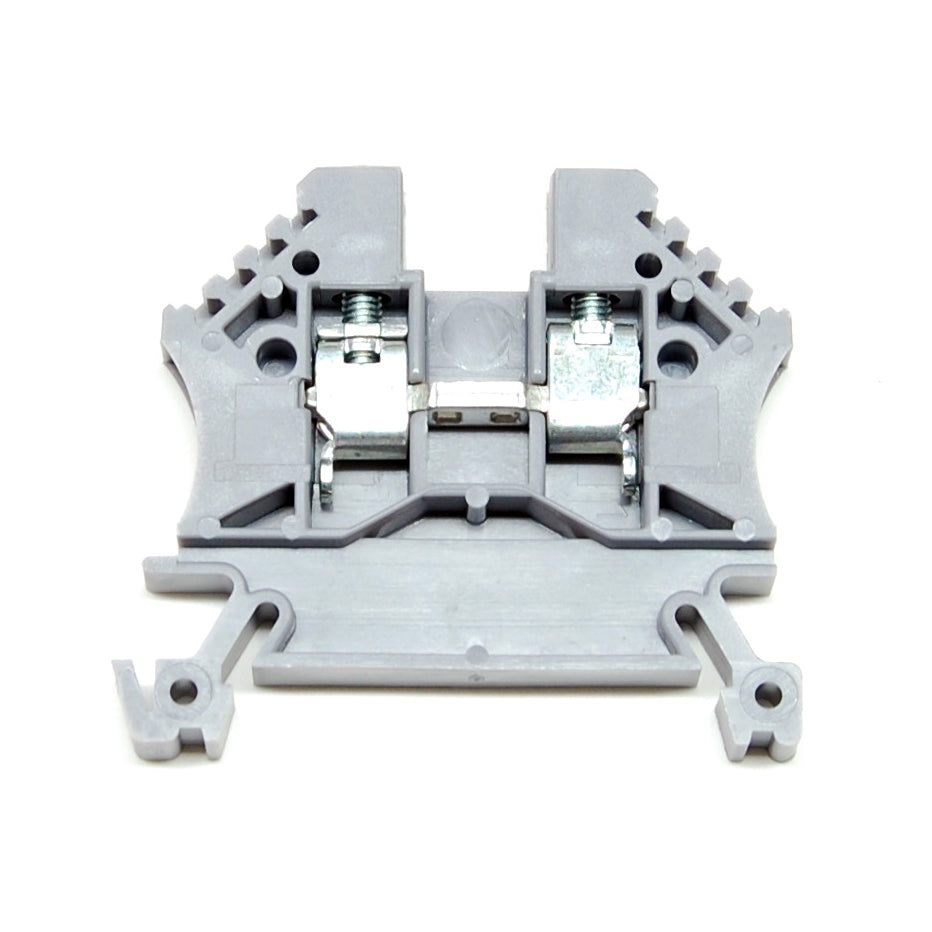

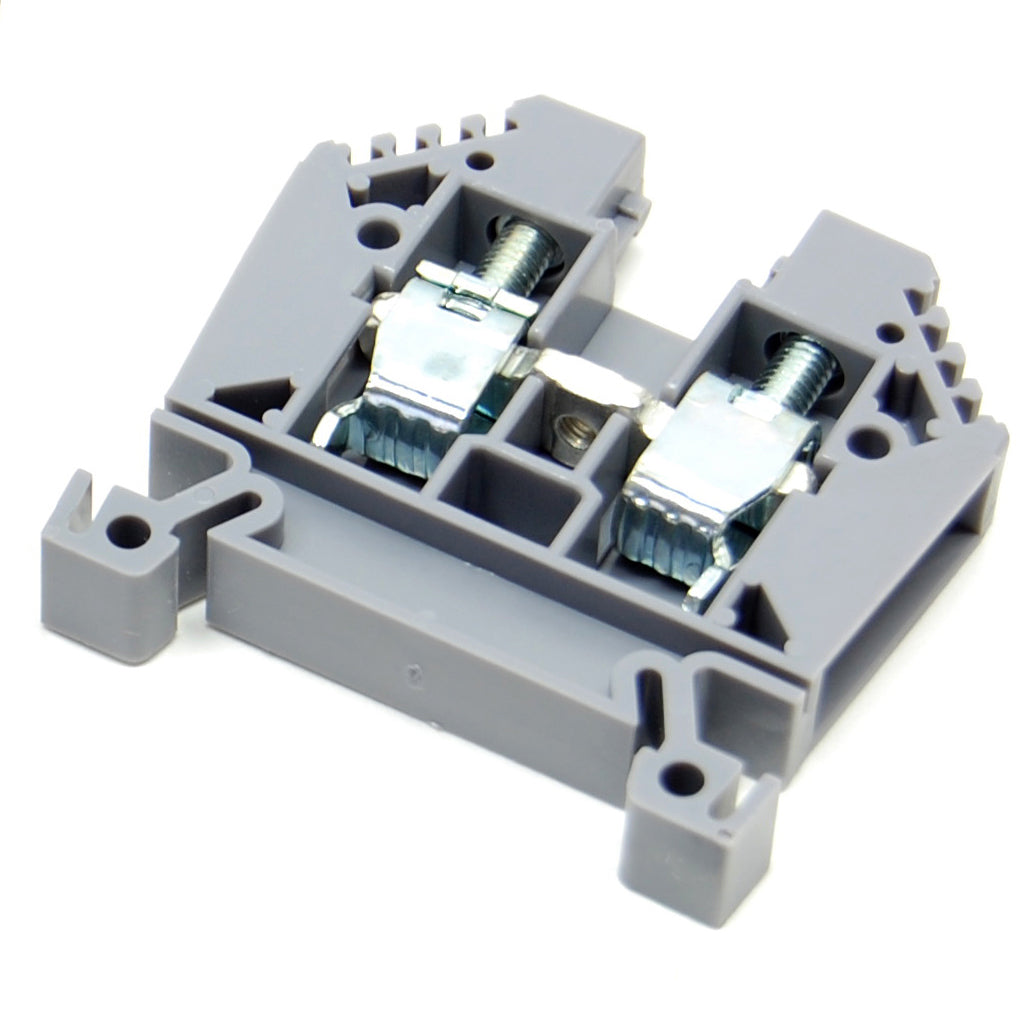

30A terminal block, DIN rail mount
$1.49 USD
30A DIN rail mountable terminal block bus with 2 positions. Used to split out 24-10 gauge wiring on 30A and 50A control panels. Amperage Rating: 30AVoltage Rating: 600VWire Size: 24-10 AWGApprovals: UL (Recognized) Includes: (1) 30A terminal block End covers...

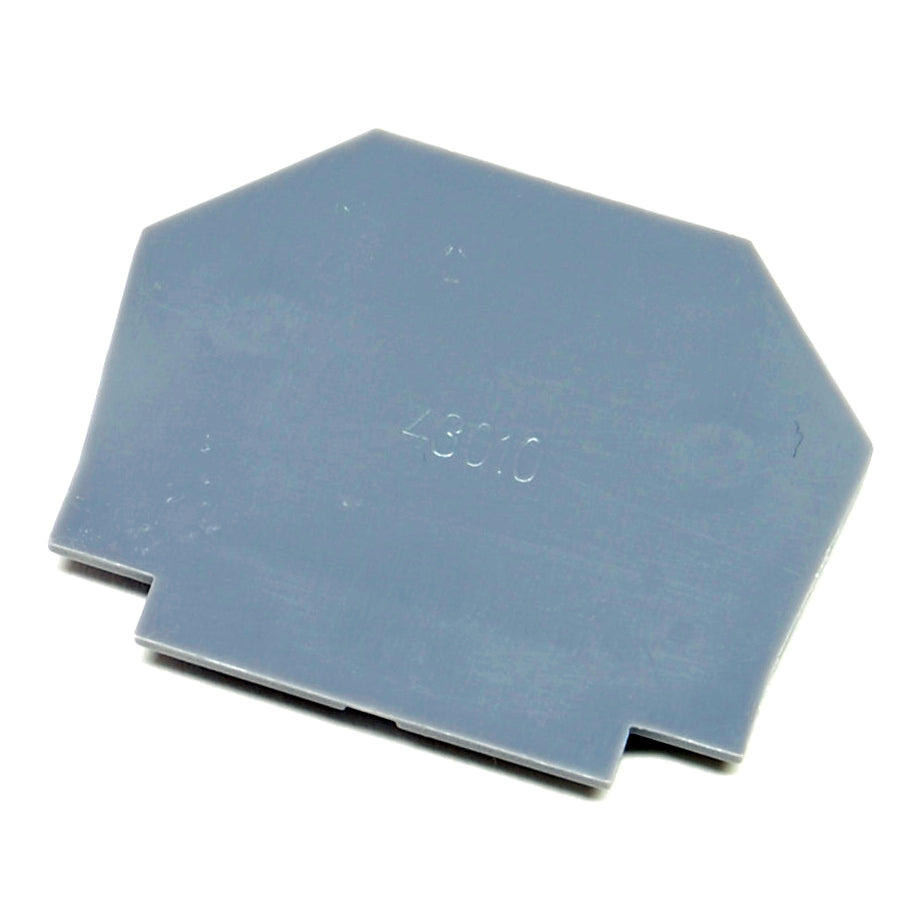

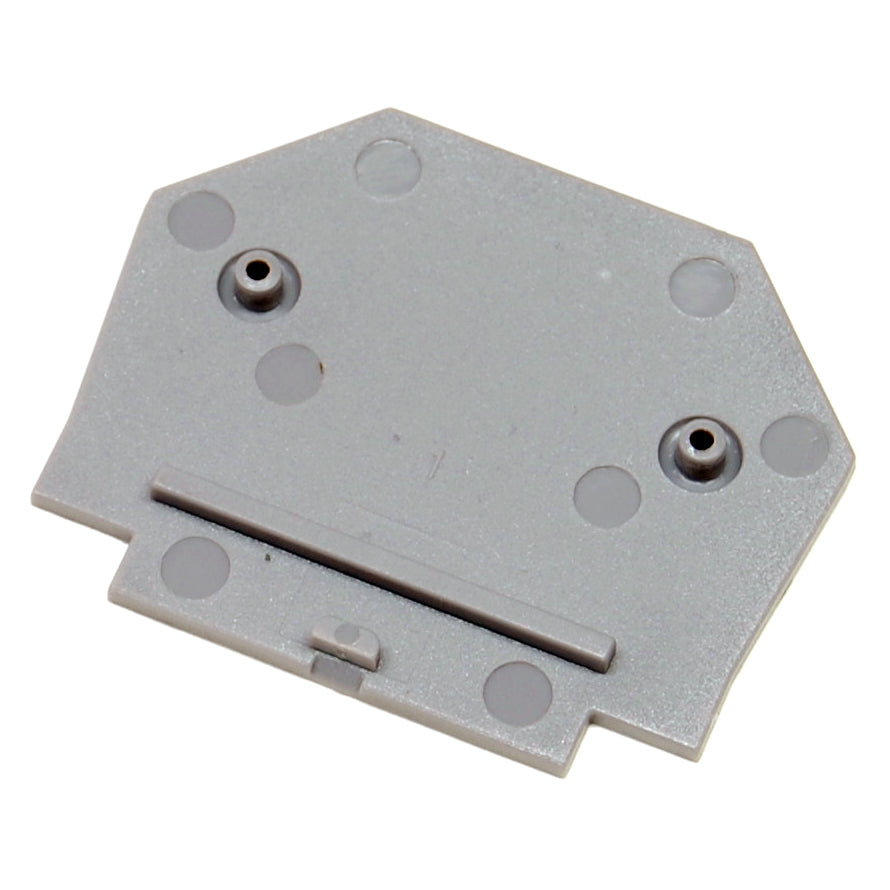

30A terminal block end cover
$1.25 USD
End cover for 30A DIN rail mountable terminal block bus with a single level. Required at the end of a terminal block row when the size or component changes to cover the open side of the terminal block. Approvals: UL...

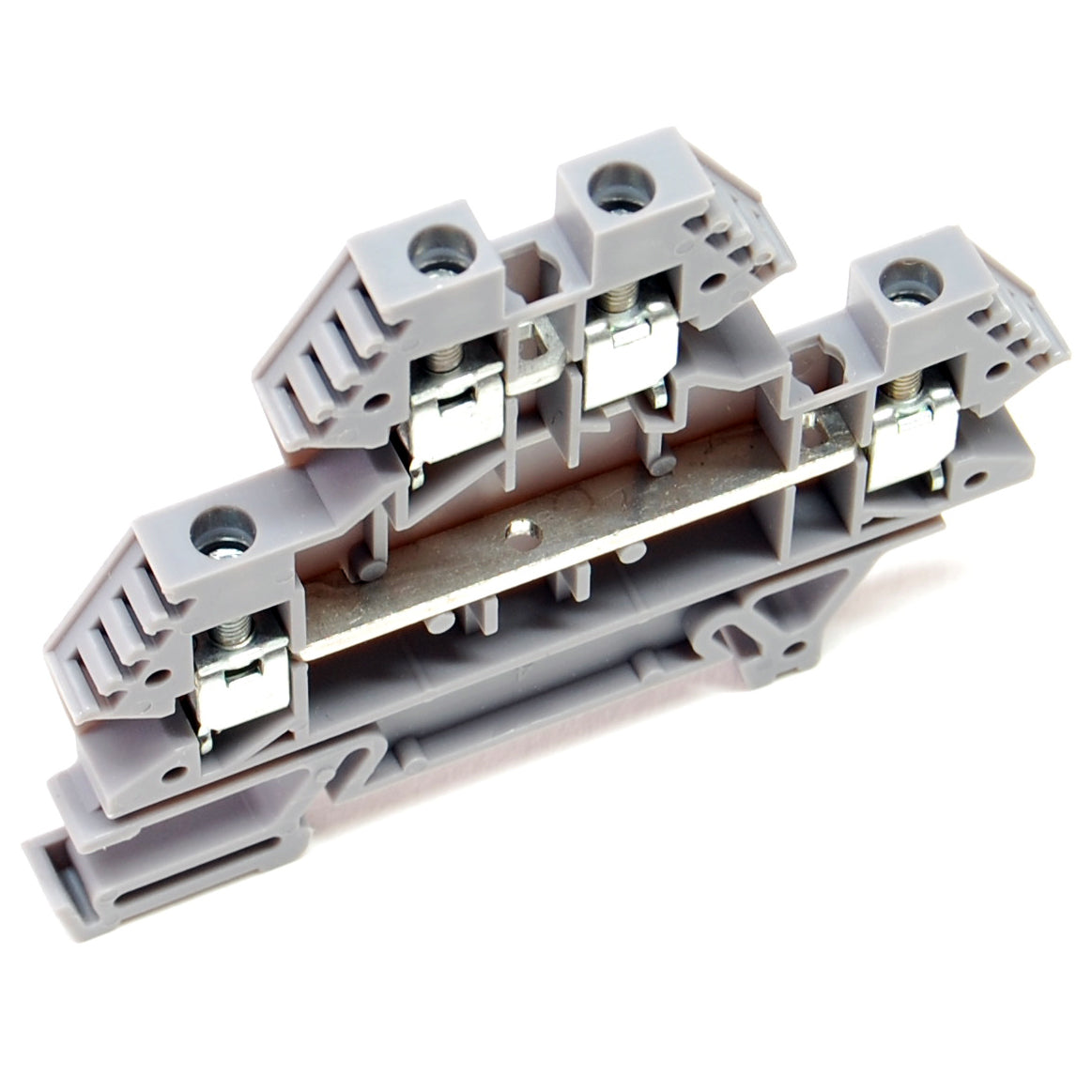

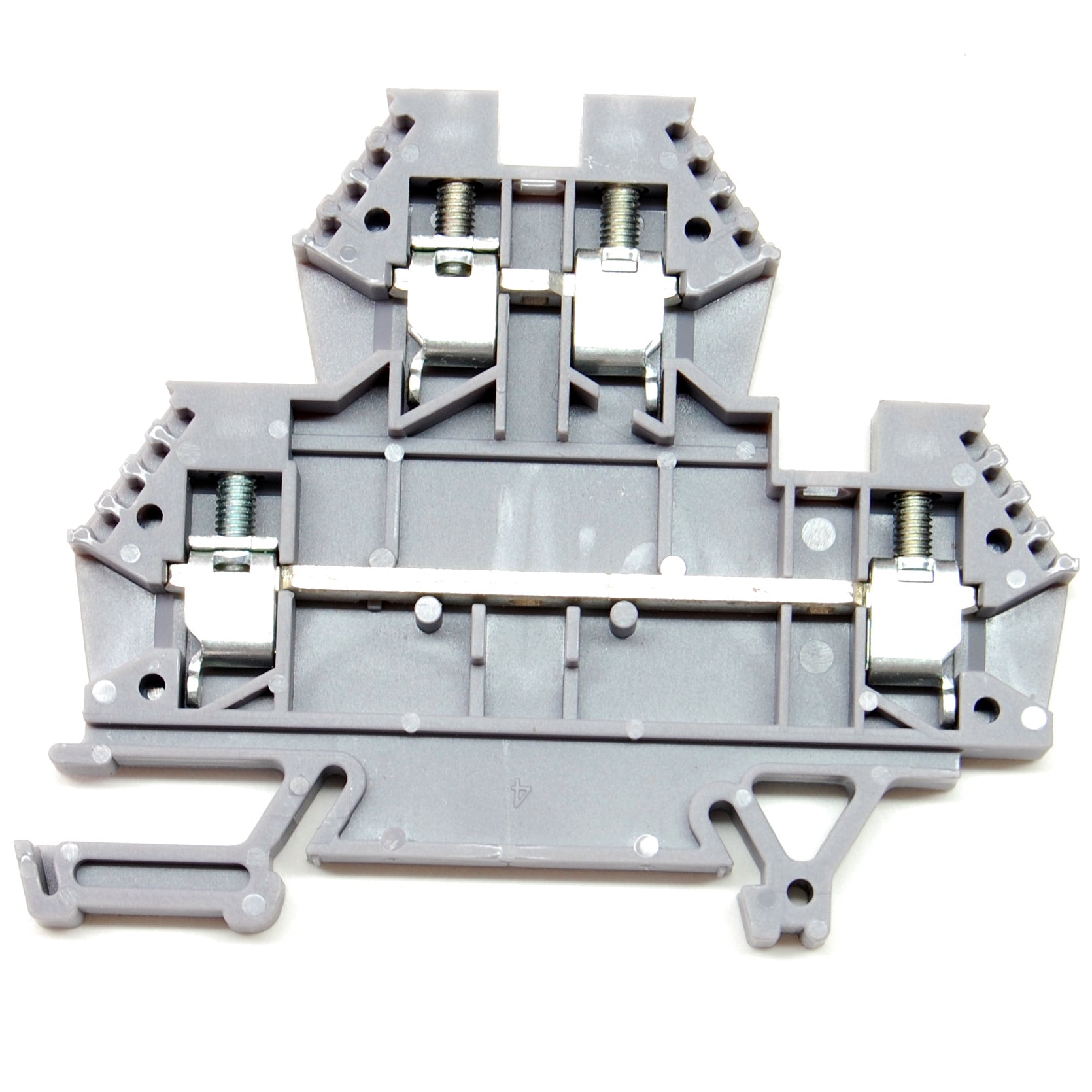

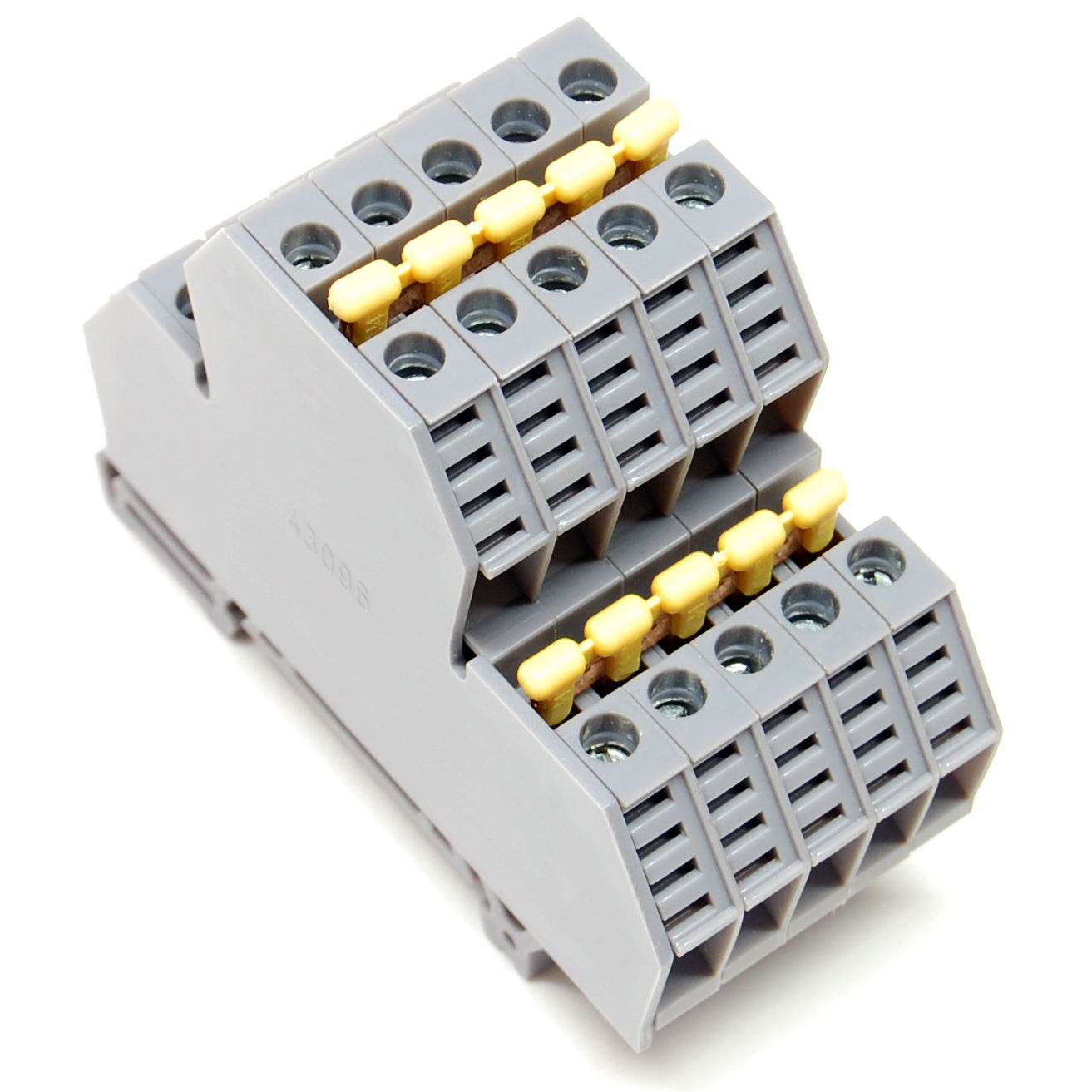

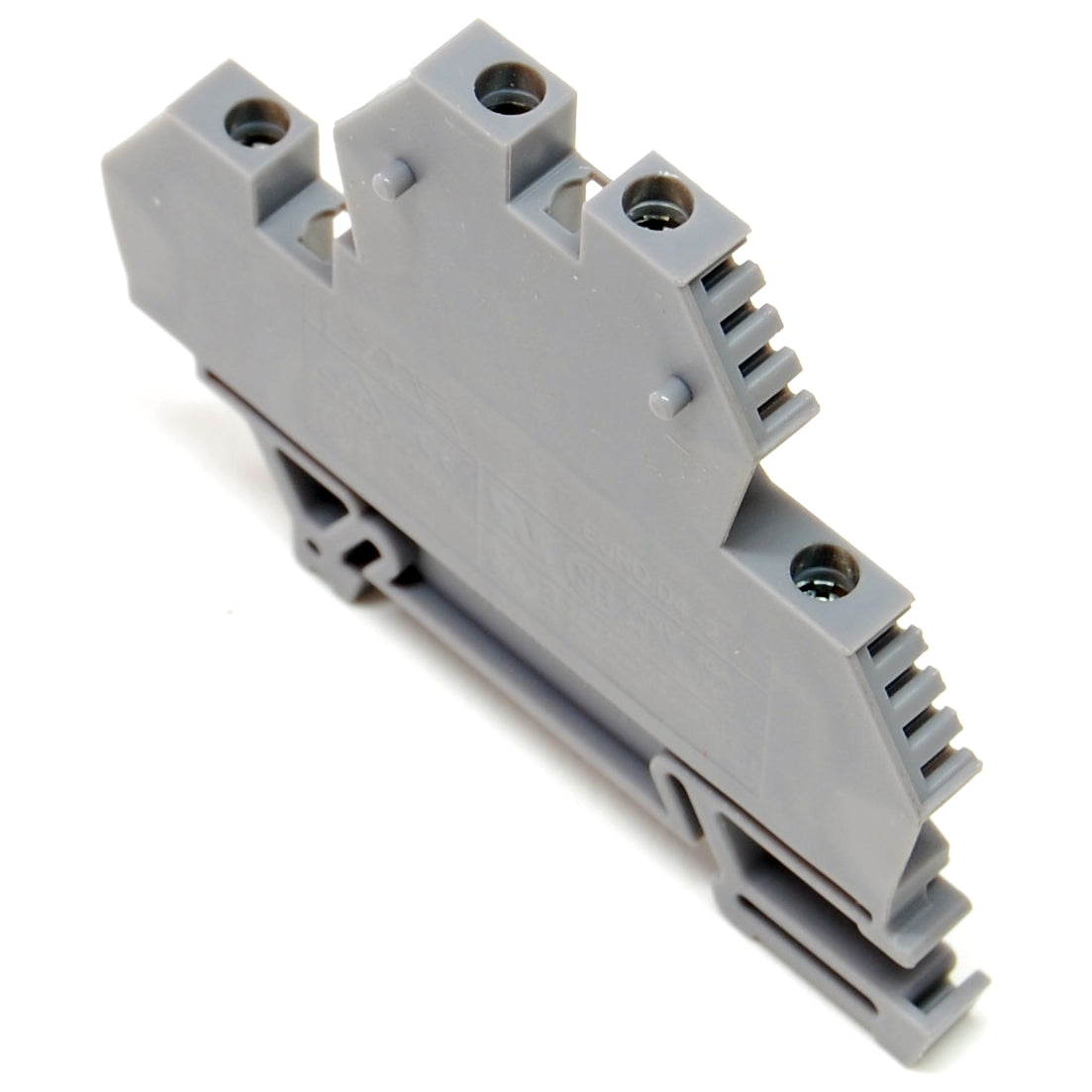

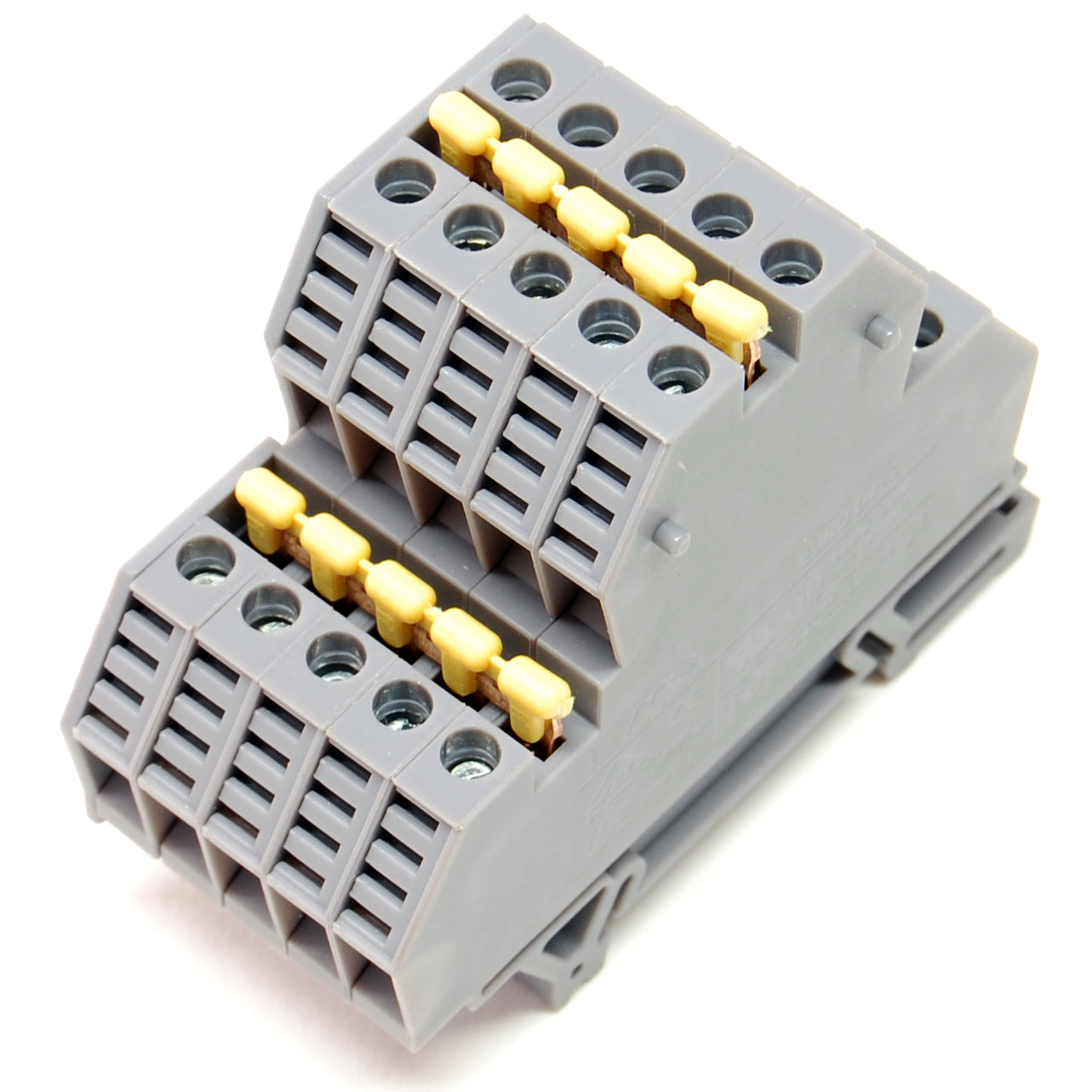

30A terminal block, 2 level, DIN rail mount
$5.49 USD
30A DIN rail mountable terminal block bus with 2 positions and 2 levels to save space. The 2 levels are isolated so separate jumpers may be used on each level. Used to split out 10 gauge wiring on 30A and...

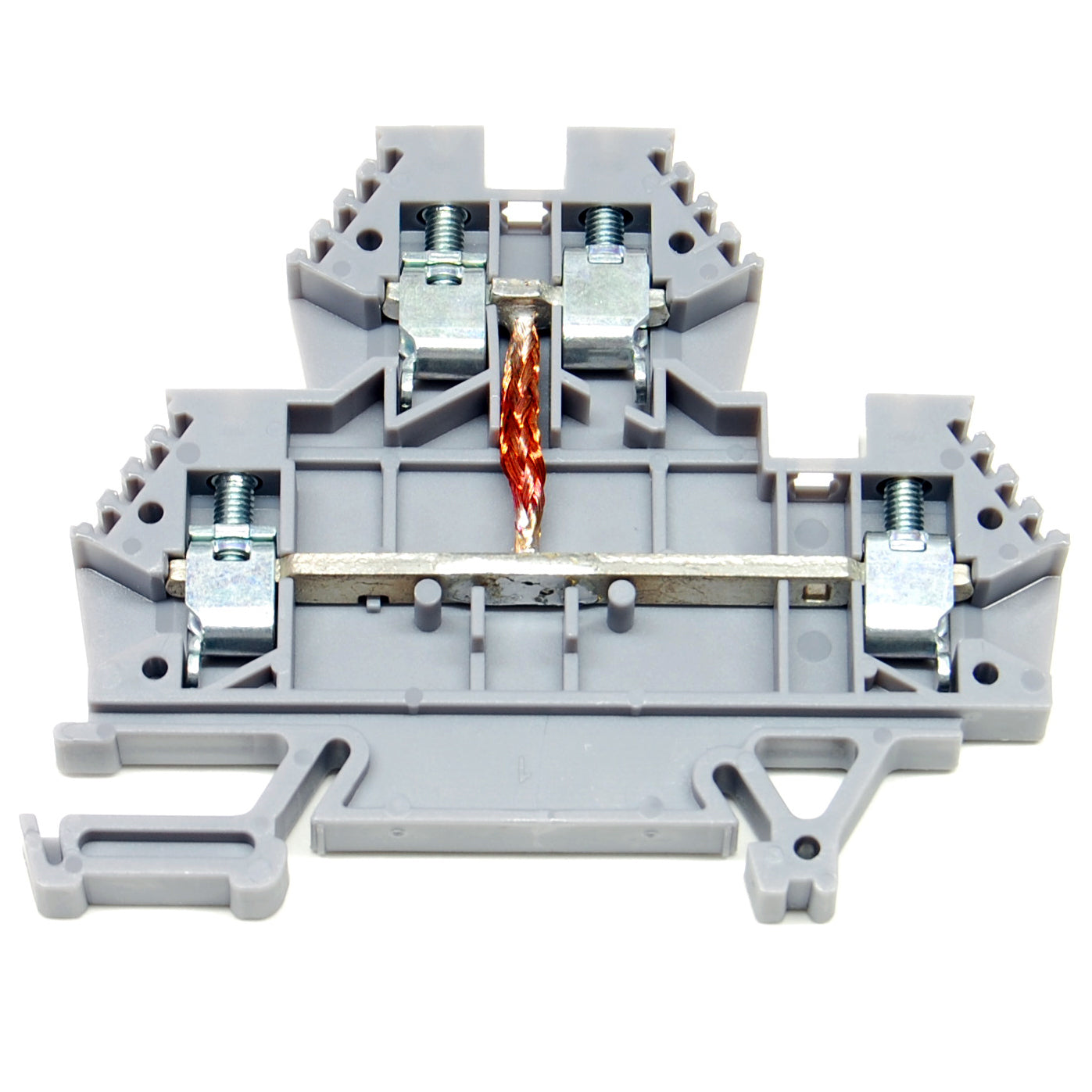

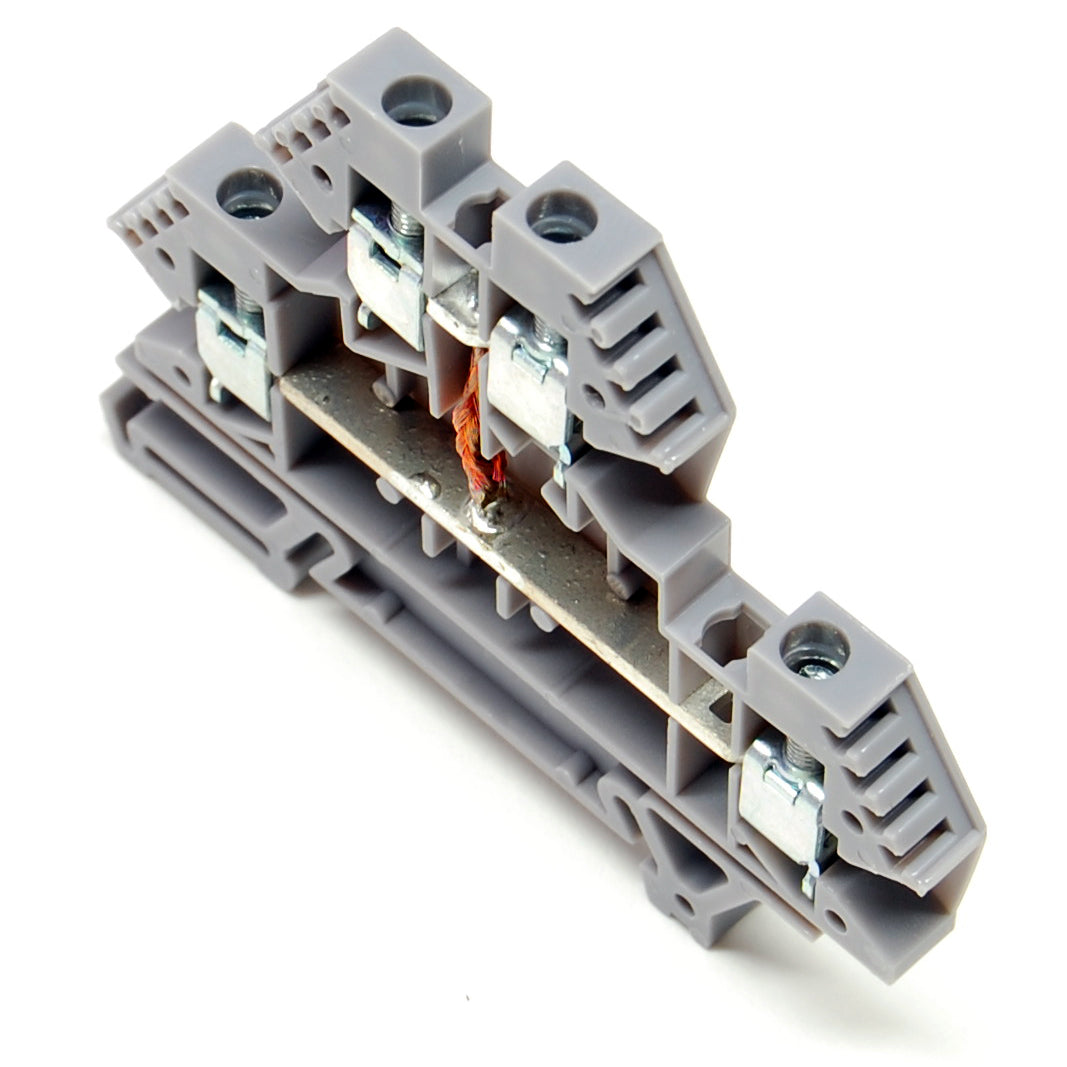

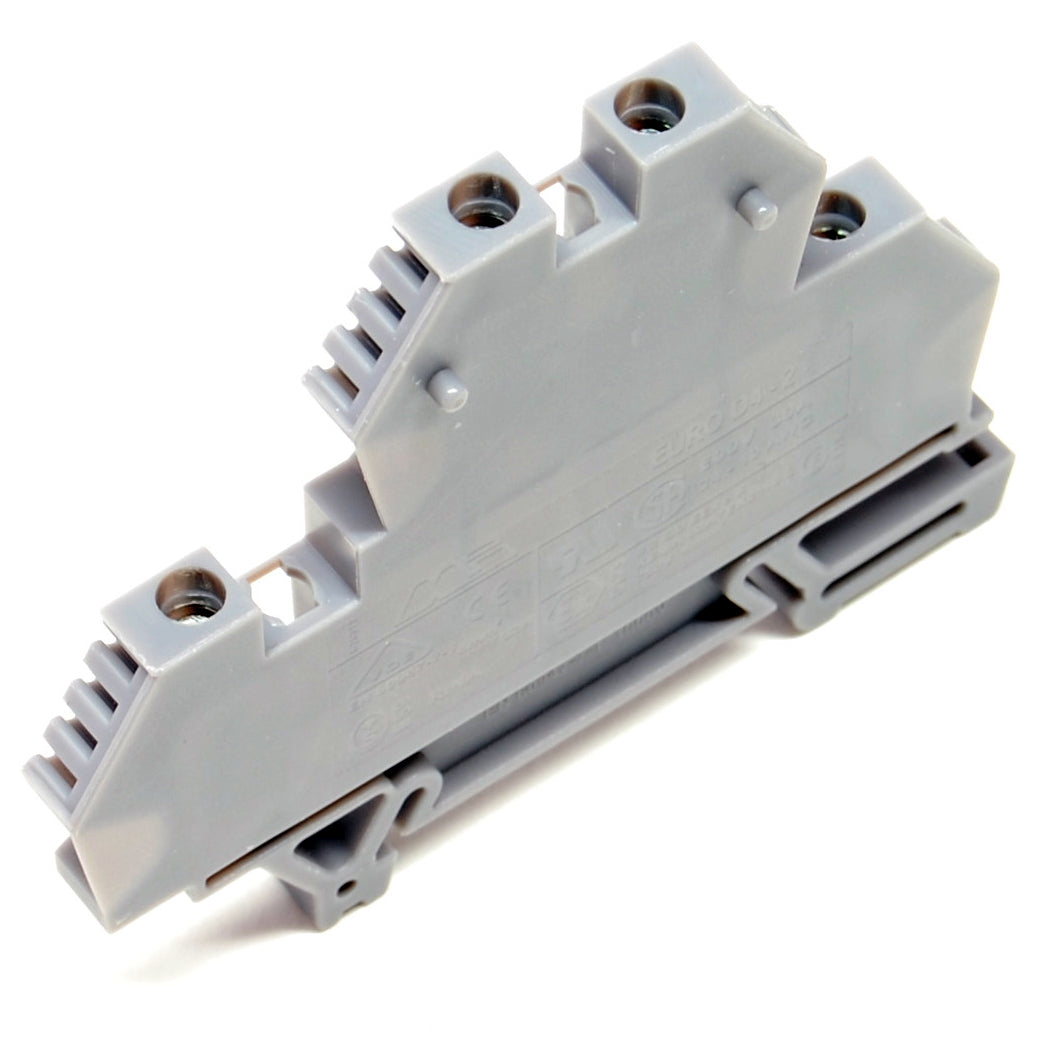

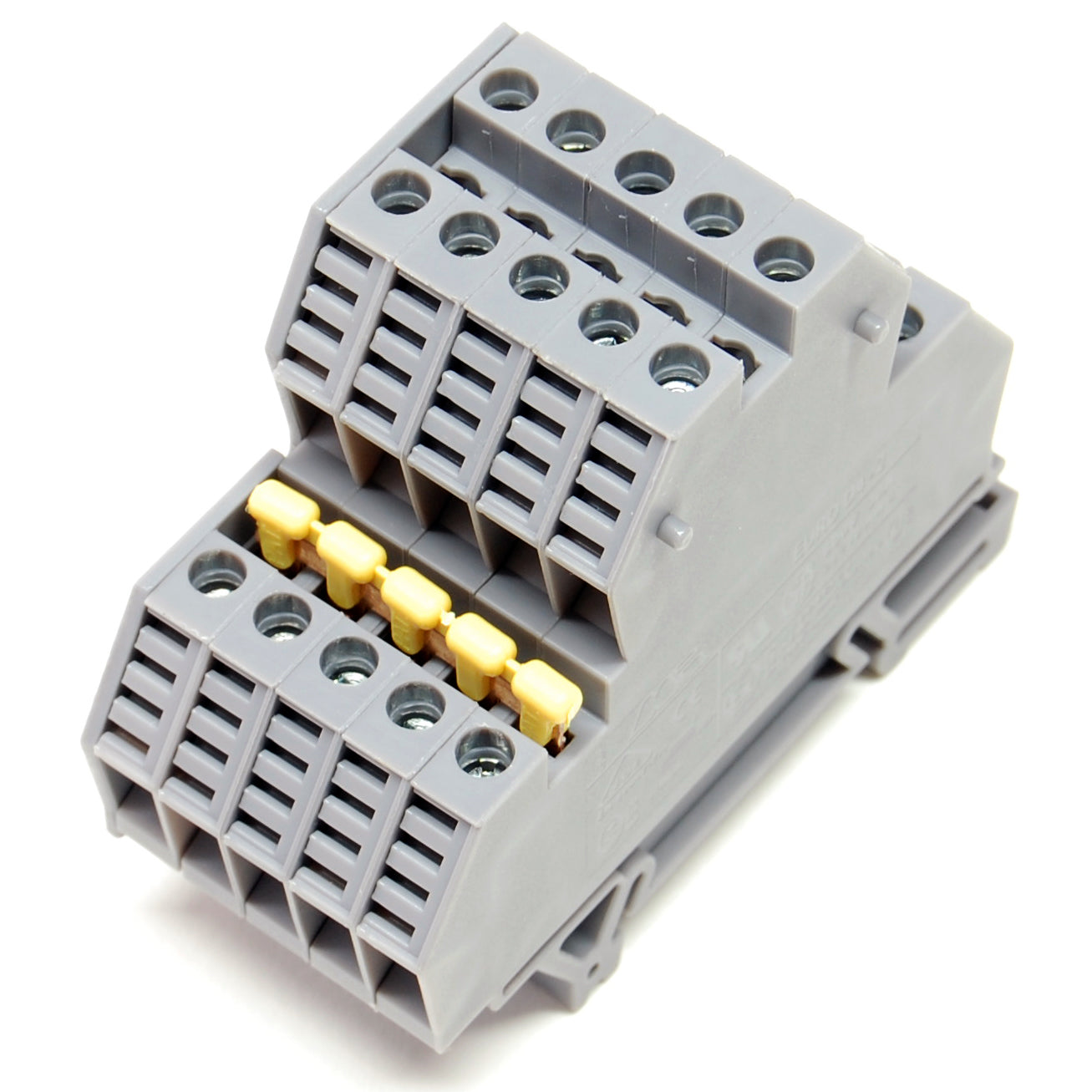

30A terminal block, 2 level, feed through, DIN rail mount
$7.95 USD
30A DIN rail mountable terminal block bus with 2 positions and 2 levels to save space. The two levels are connected (feed through) so only one jumper is required. Used to split out 10 gauge wiring on 30A and 50A...

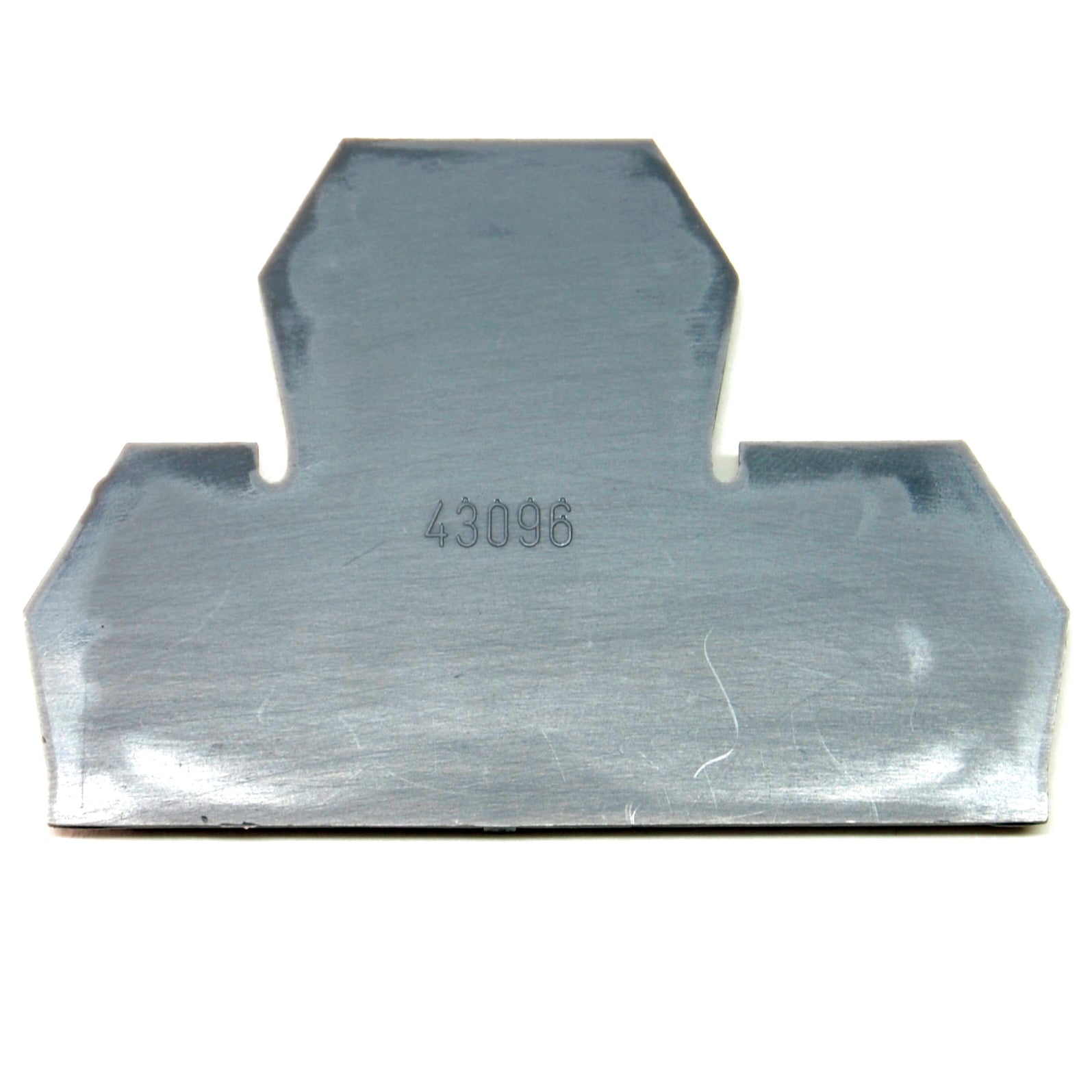

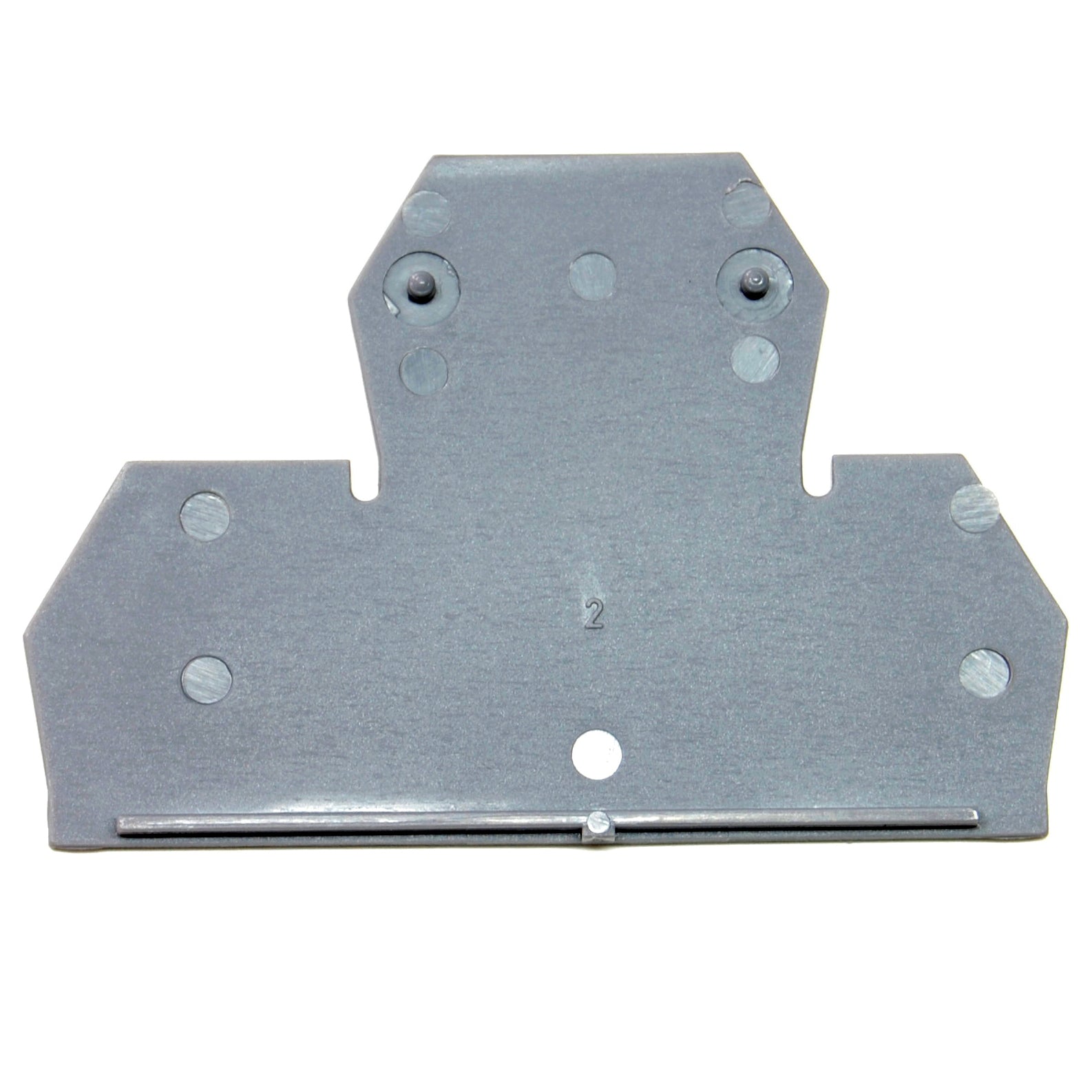

30A terminal block end cover, 2 level
$1.25 USD
End cover for 30A DIN rail mountable terminal block bus with 2 levels. Approvals: UL (Recognized) Includes: (1) Double Level 30A terminal block end cover 30A terminal block, 2 level and 30A terminal block, 2 level, feed through are available for order...

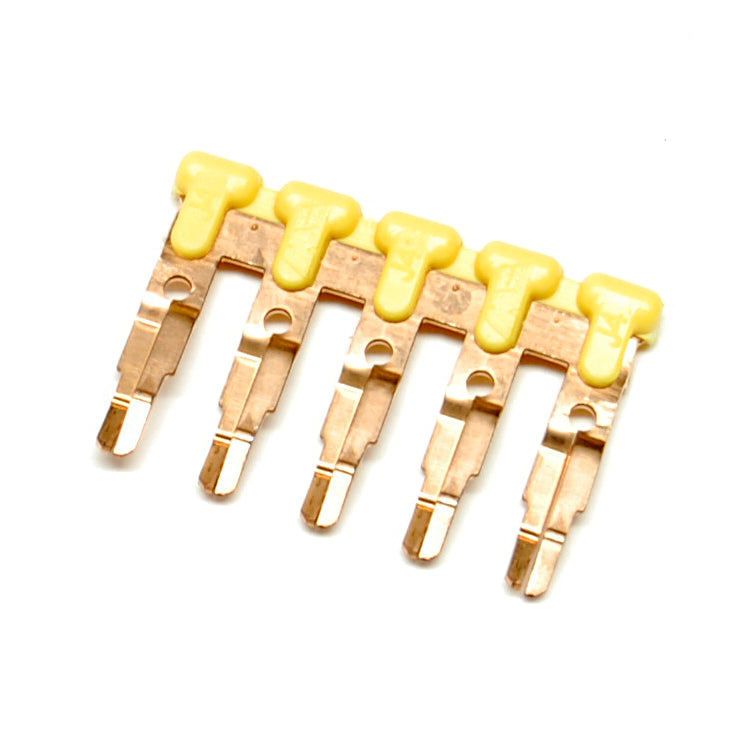

30A terminal block jumper
$2.00 USD
Jumper for all 30A DIN rail mountable terminal block buses (sold separately), including: 30A terminal block 30A terminal block, 2 level 30A terminal block, 2 level, feed through Amperage Rating: 30AVoltage Rating: 600VApprovals: UL (Recognized) Used in our pre-assembled 50A control...

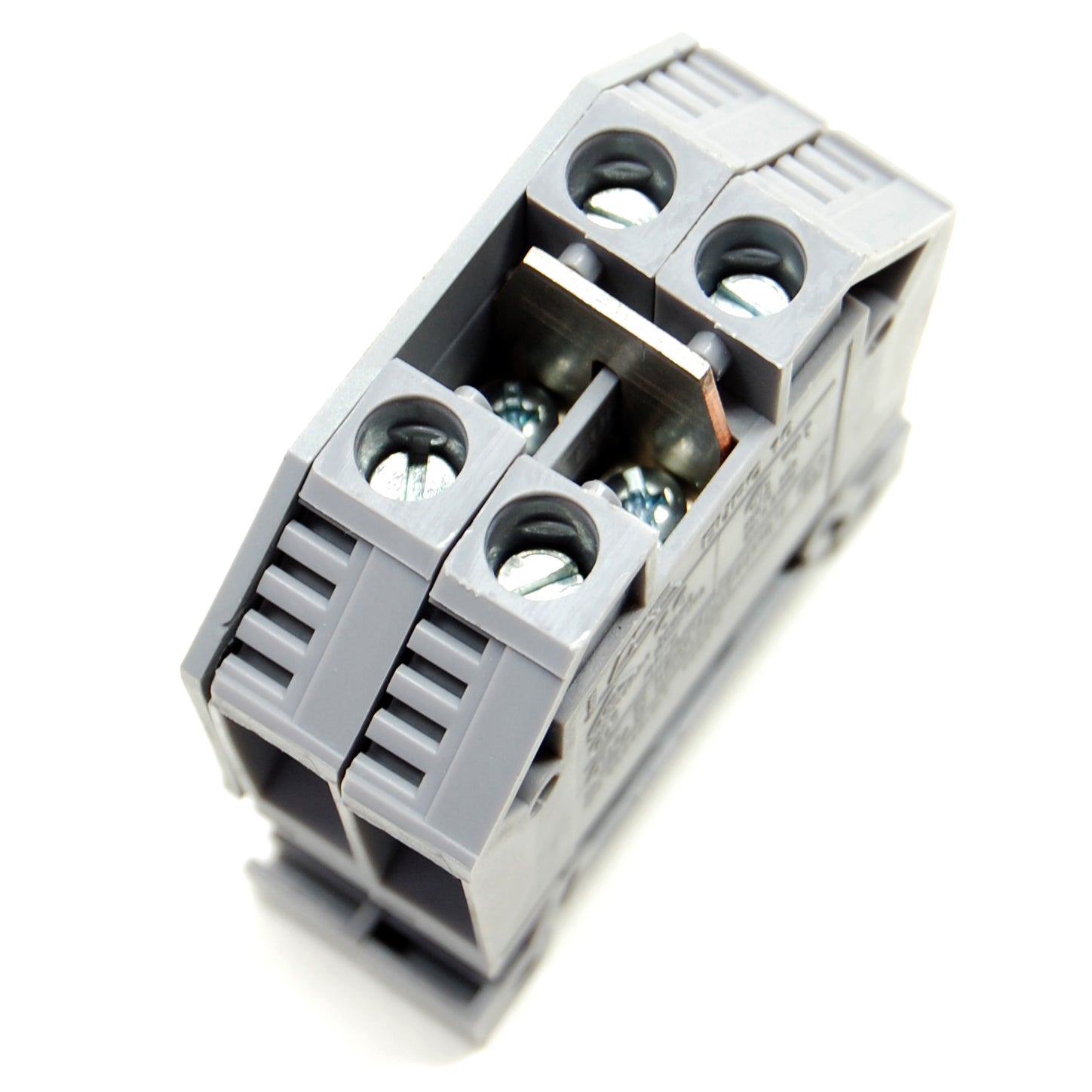

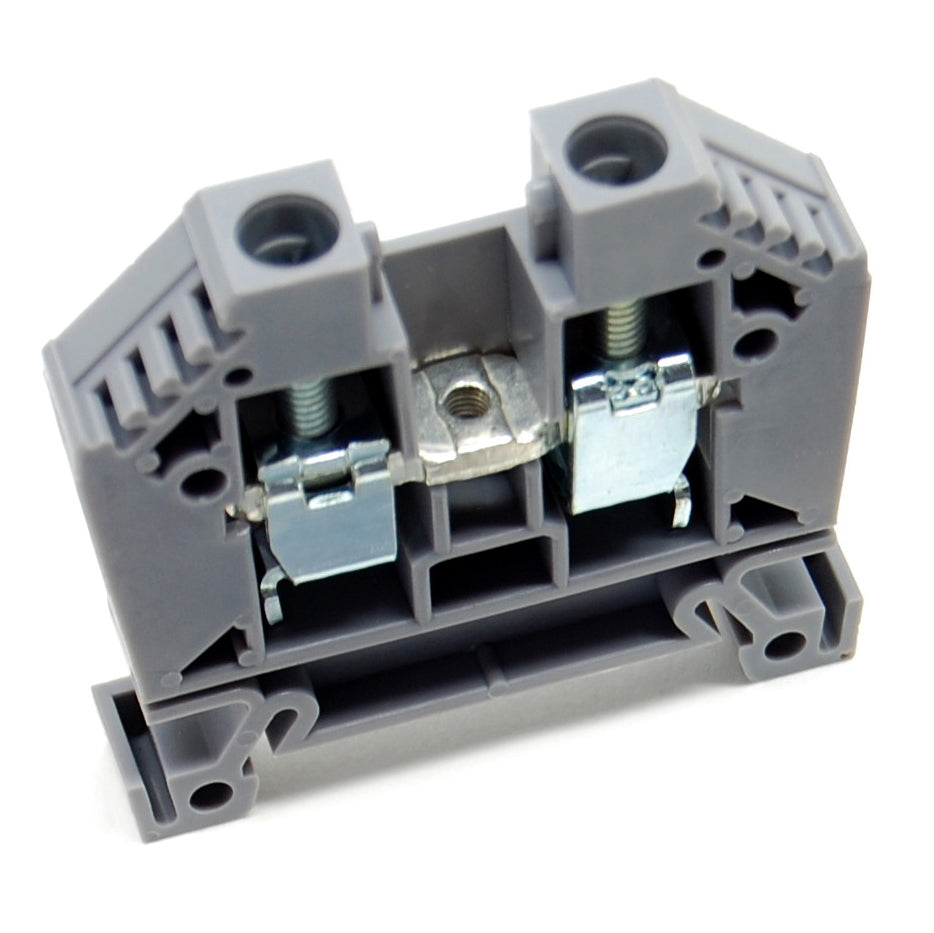

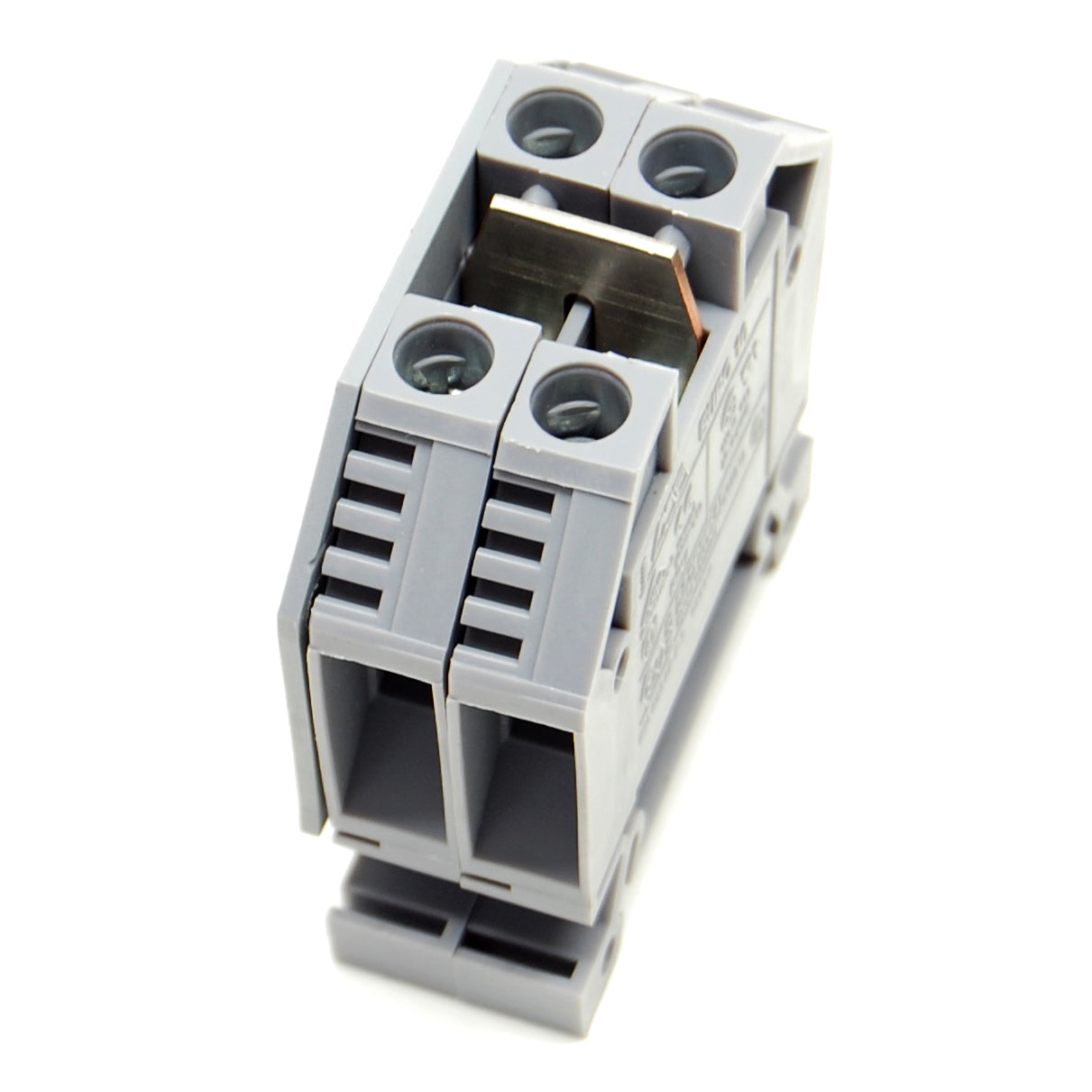

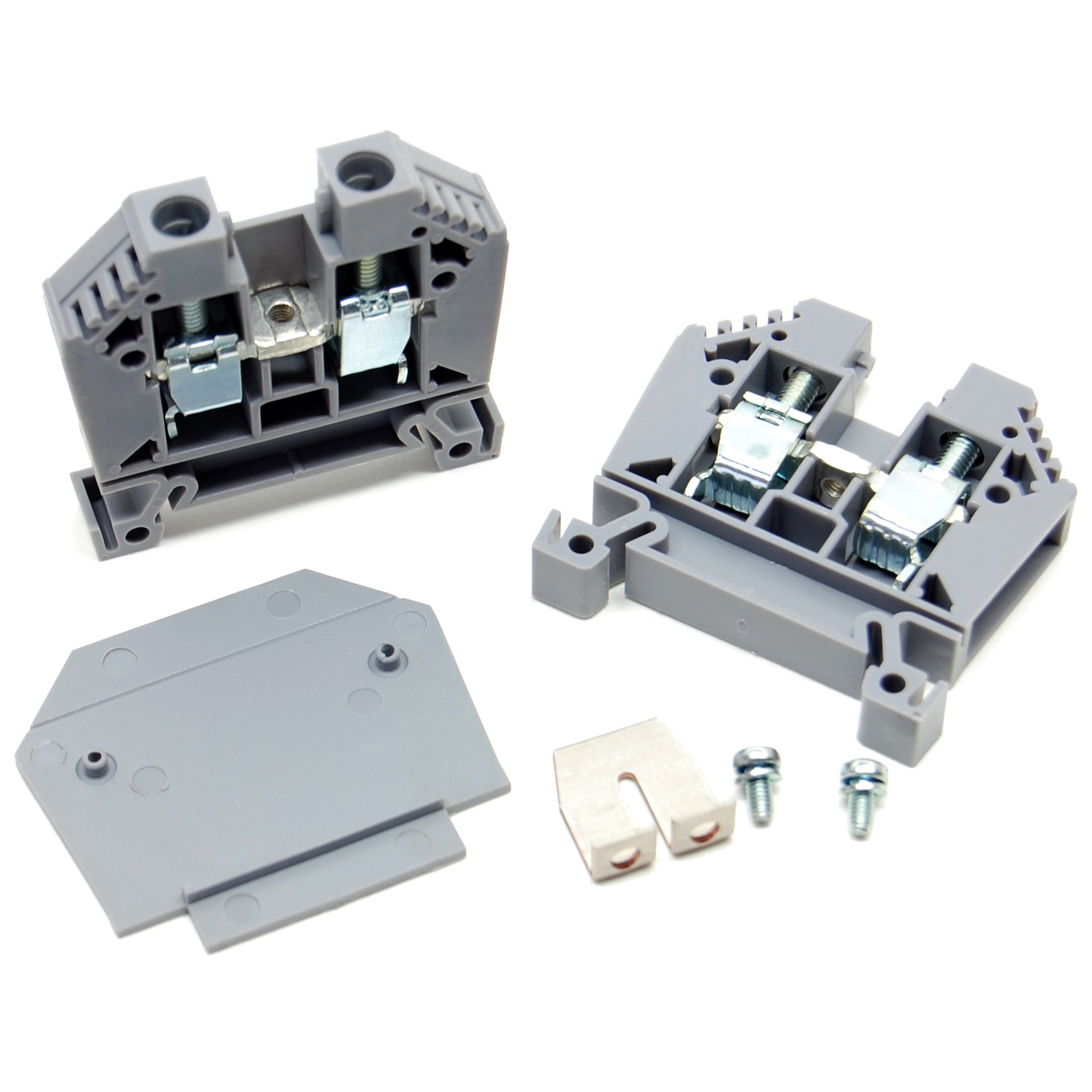

65A single terminal block, DIN rail mount
$2.95 USD
65A DIN rail mountable terminal block bus with 2 positions. Amperage Rating: 65AVoltage Rating: 600VWire Size: 18-6 AWGApprovals: UL (Recognized) Includes: (1) 65A terminal block 65A terminal block end covers and protective/warning covers are available for order separately.
65A dual terminal block, DIN rail mount
$7.95 USD
65A DIN rail mountable terminal block bus with 4 positions. Used to split out 6 gauge wiring on 50A control panels (namely to distribute the red 6 gauge to each breaker). Amperage Rating: 65AVoltage Rating: 600VWire Size: 18-6 AWGApprovals: UL...

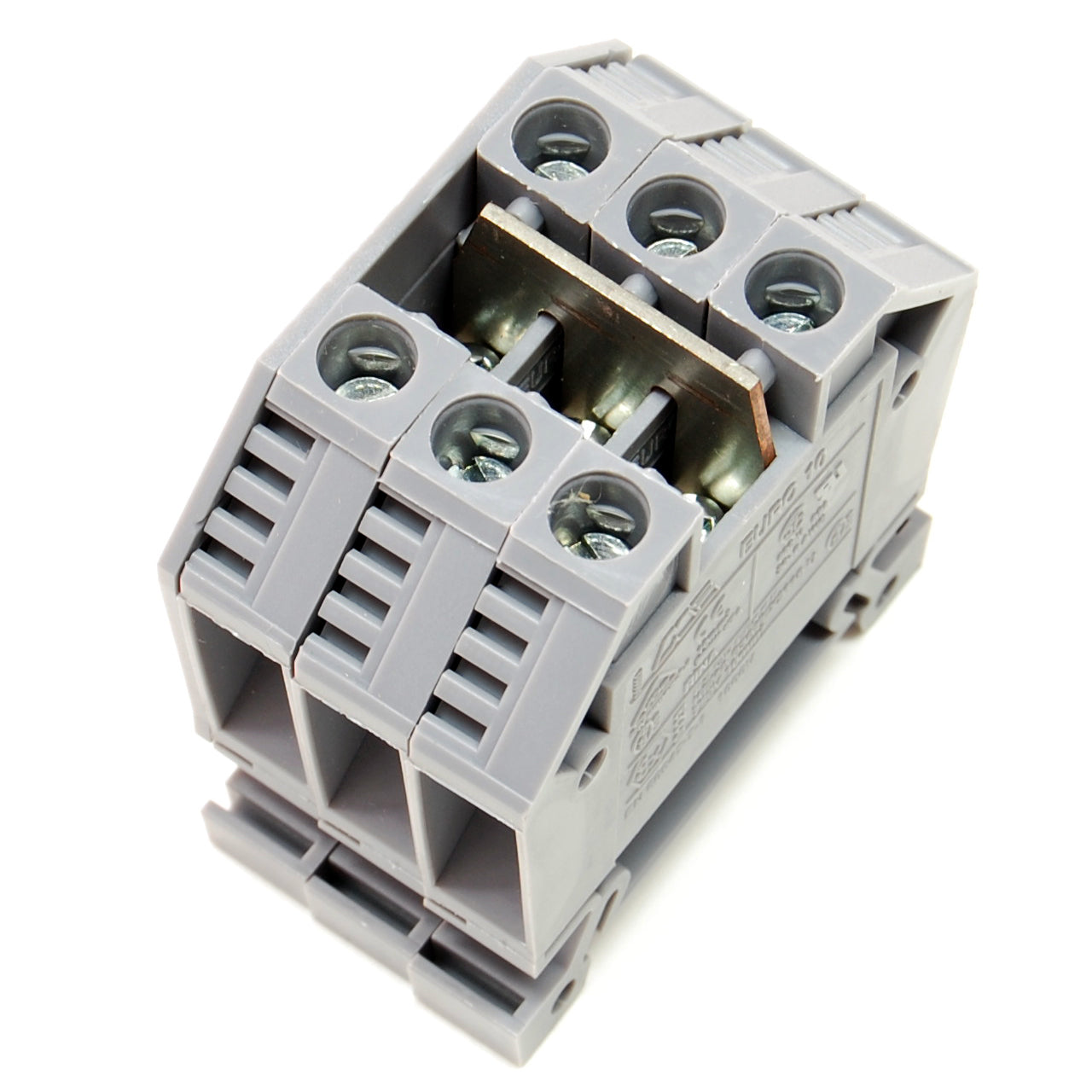

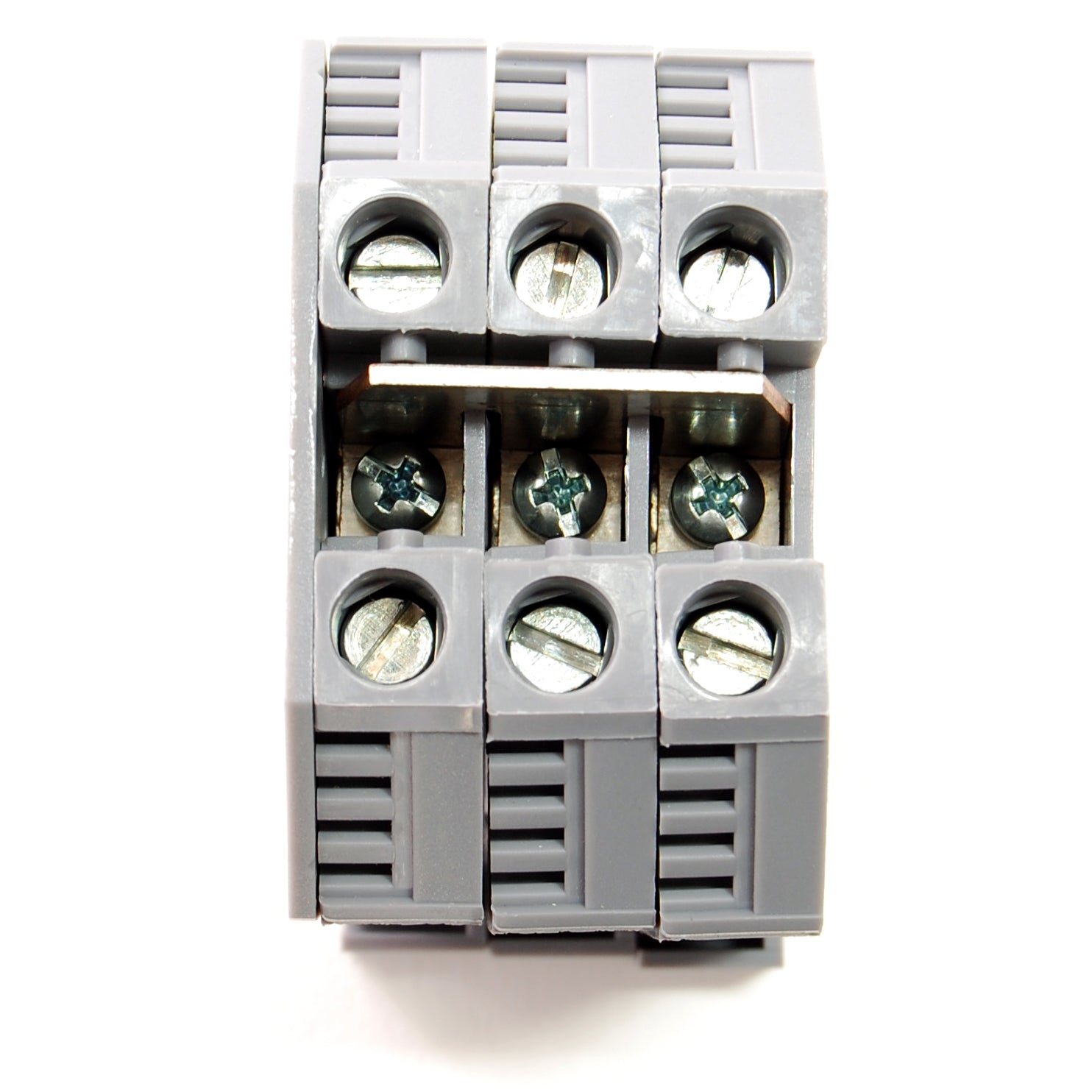

65A triple terminal block, DIN rail mount
$11.95 USD
65A DIN rail mountable terminal block bus with 6 positions. Used to split out 6 gauge wiring on 50A control panels (namely to distribute the red 6 gauge to each breaker). Amperage Rating: 65AVoltage Rating: 600VWire Size: 18-6 AWGApprovals: UL...

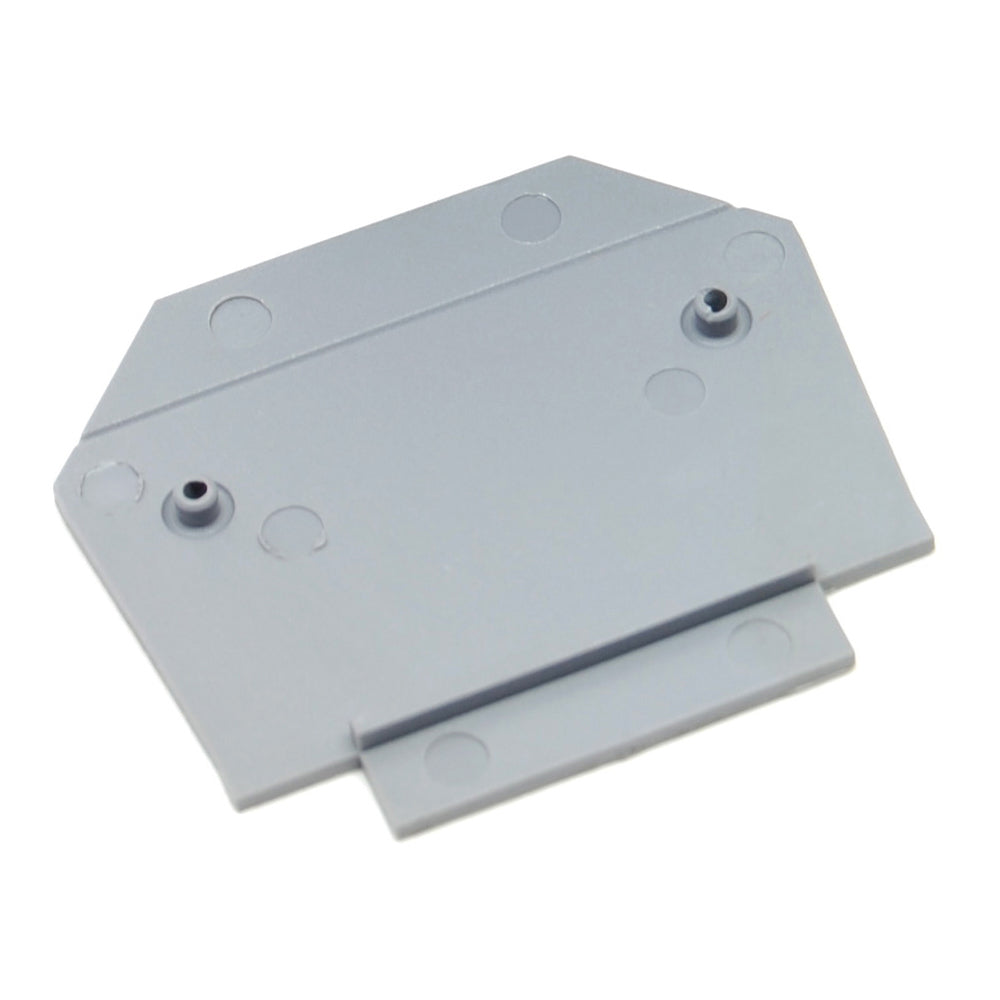

65A terminal block end cover
$0.99 USD
End cover for 65A DIN rail mountable terminal block bus with a single level. Required at the end of a terminal block row when the size or component changes to cover the open side of the terminal block. Already included in...

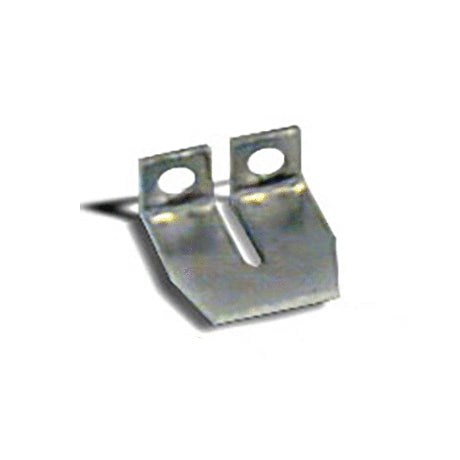

65A terminal block jumper, 2-pole
$1.49 USD
2-pole jumper for 65A DIN rail mountable terminal block buses (sold separately). Screws included. Amperage Rating: 65AVoltage Rating: 600VApprovals: UL (Recognized) Already included in our 65A dual terminal blocks.

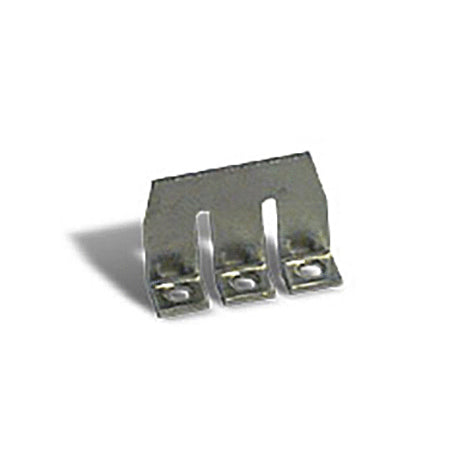

65A terminal block jumper, 3-pole
$2.69 USD
3-pole jumper for 65A DIN rail mountable terminal block buses (sold separately). Screws included. Amperage Rating: 65AVoltage Rating: 600VApprovals: UL (Recognized) Already included in our 65A triple terminal blocks.

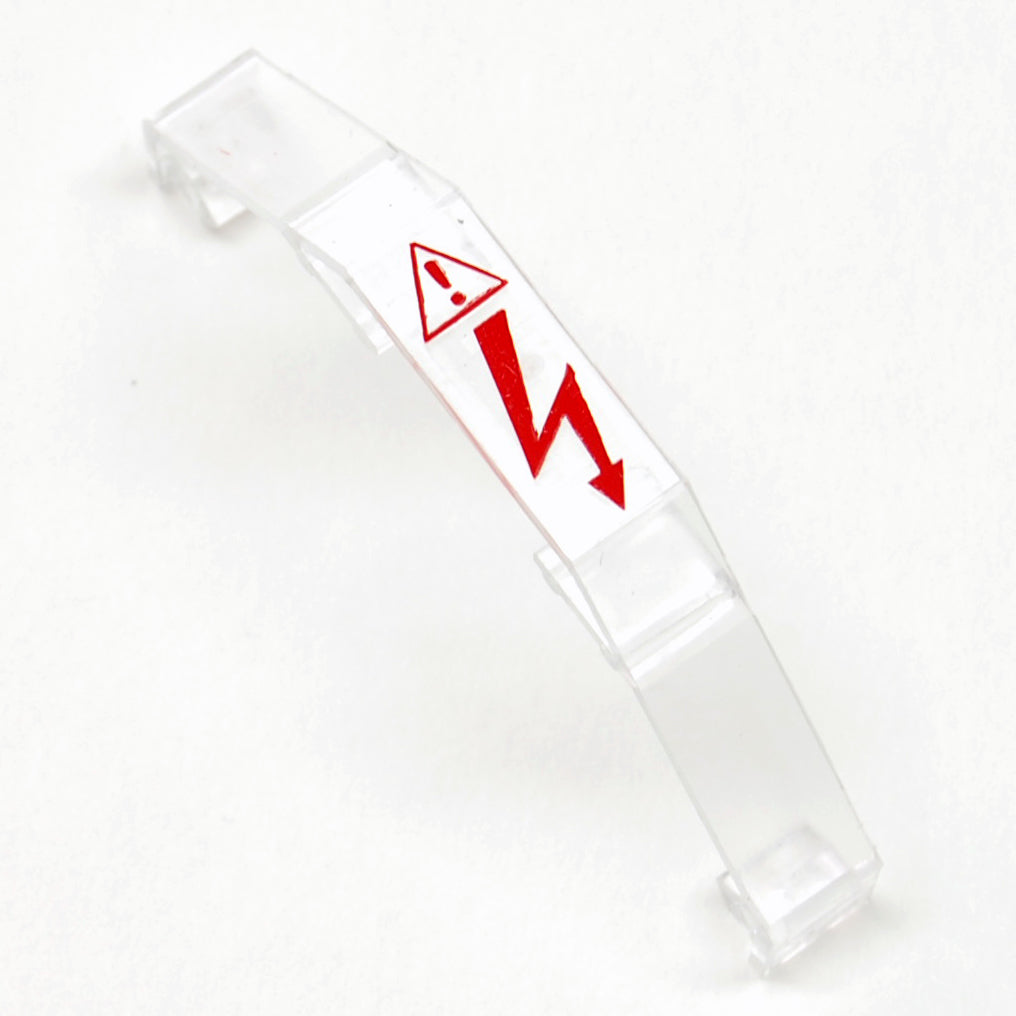

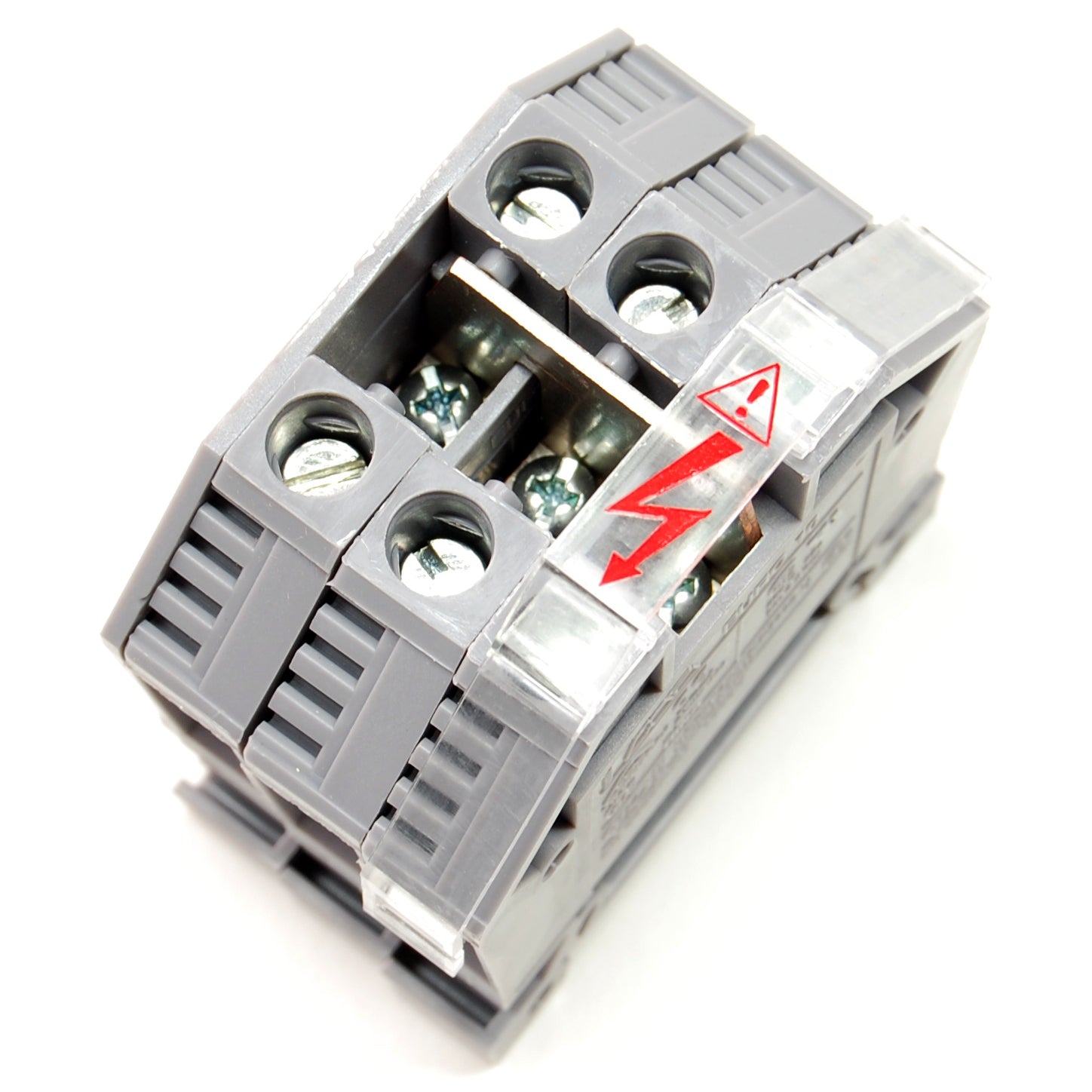

65A terminal block cover
$1.29 USD
Protective/warning cover for 65A terminal blocks. 65A single terminal blocks, 65A dual terminal blocks, and 65A triple terminal blocks are available for order separately. Used in our pre-assembled 50A control panels.

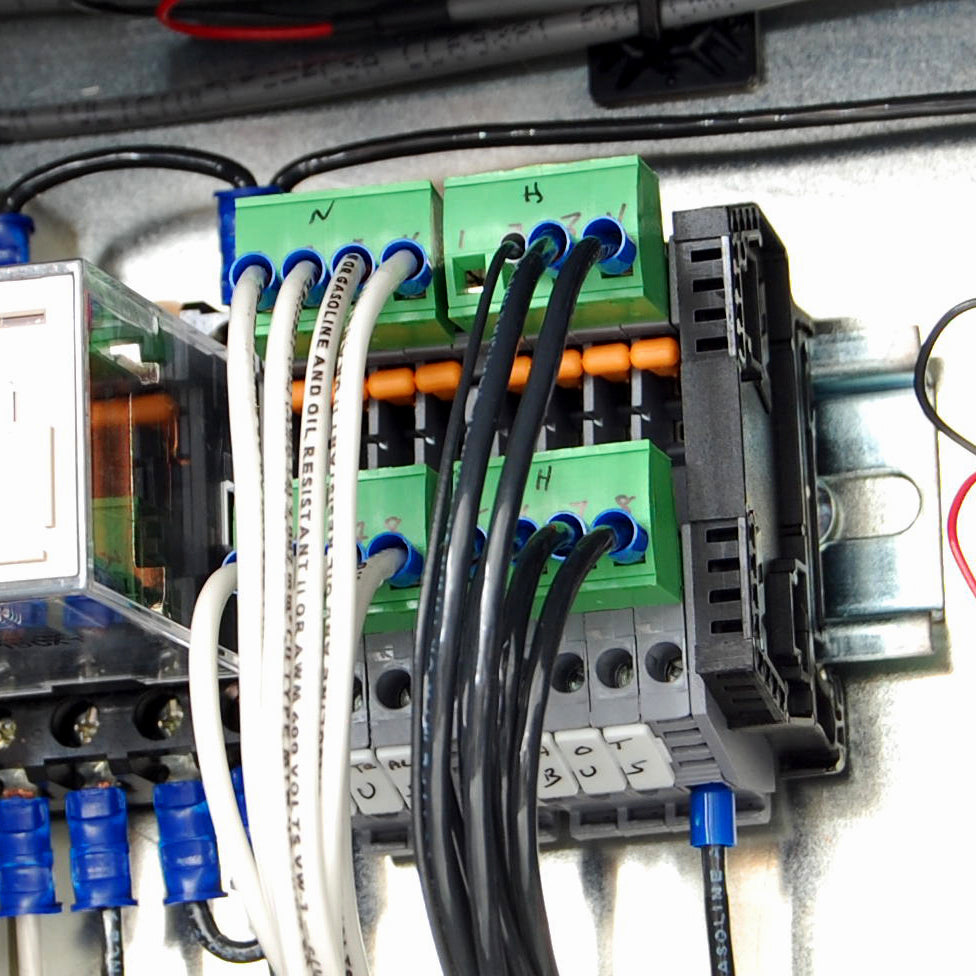

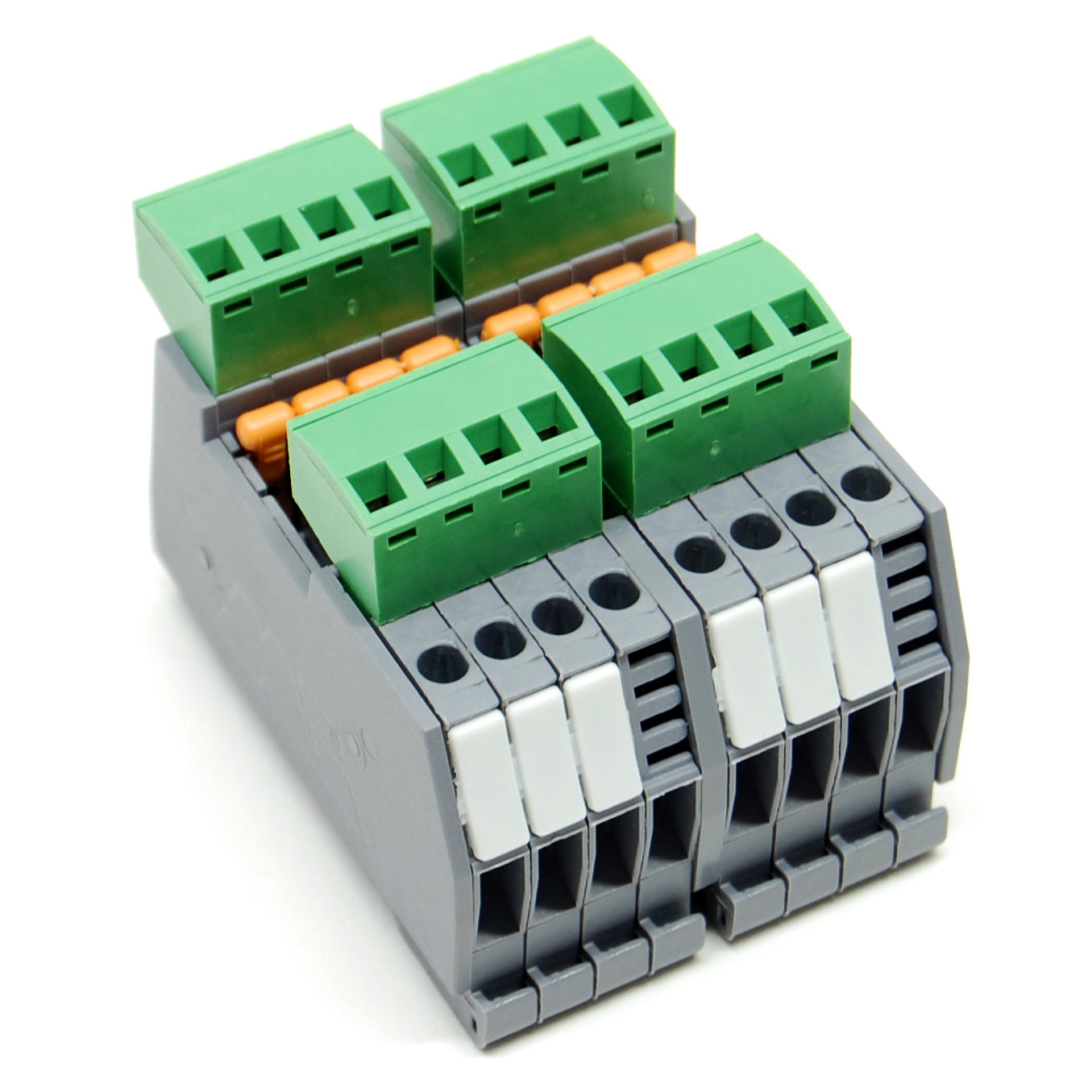

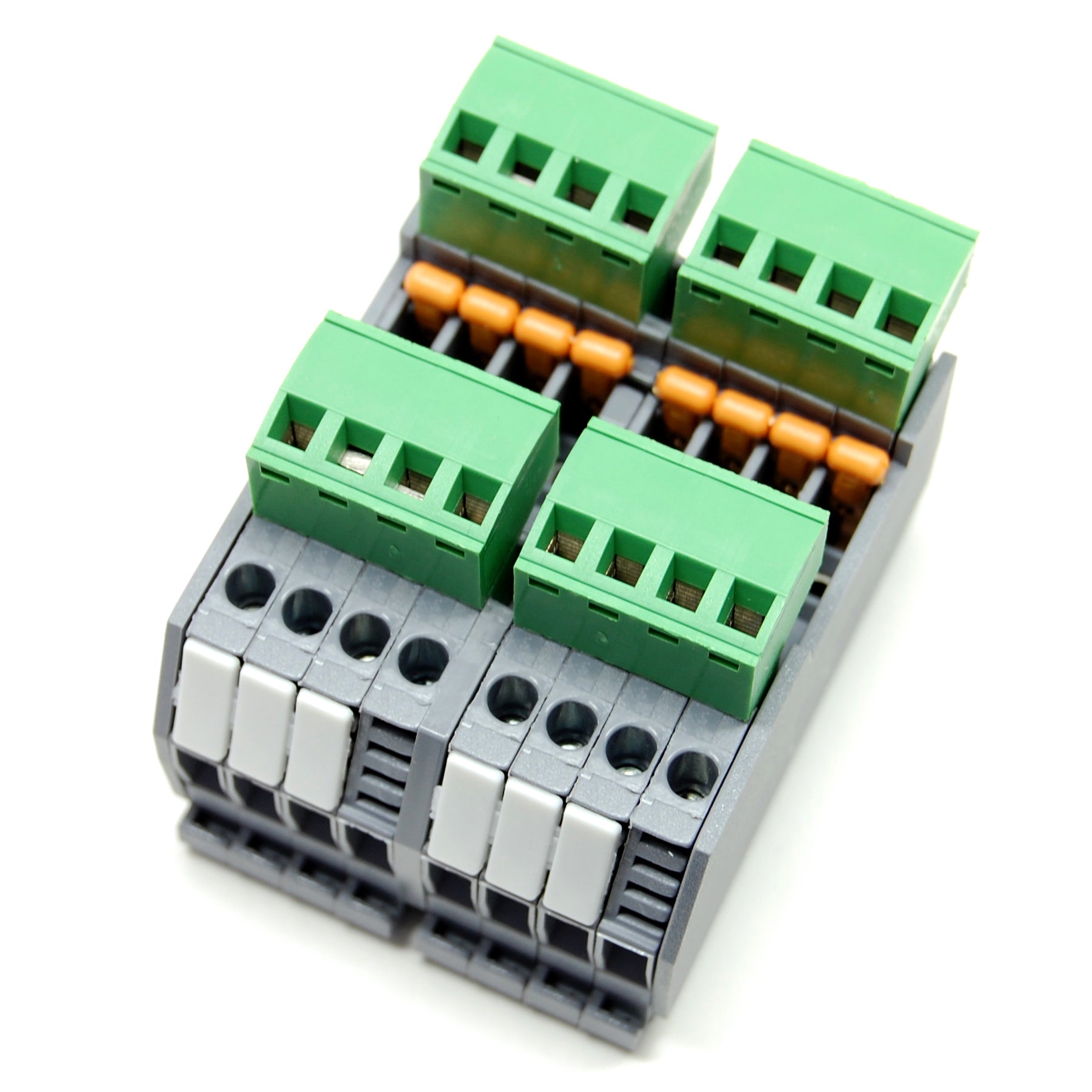

12A terminal block bus, DIN rail mount
$39.95 USD
A 24 position DIN rail mountable terminal block bus with 4 removable plugs (2 per bus) for wiring control panels. Saves space and simplifies wiring for the hot and neutral buses. Amperage Rating: 12AVoltage Rating: 300VWire Size: 24-12 gauge12 positions per...

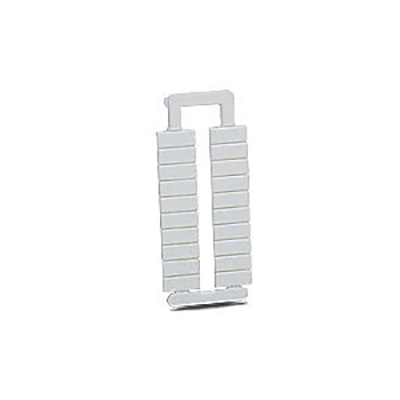

DIN tags for terminal blocks (20 pack)
$3.95 USD
DIN tags for labelling terminal blocks. Tags are 5x12mm and blank. Includes 20 tags.

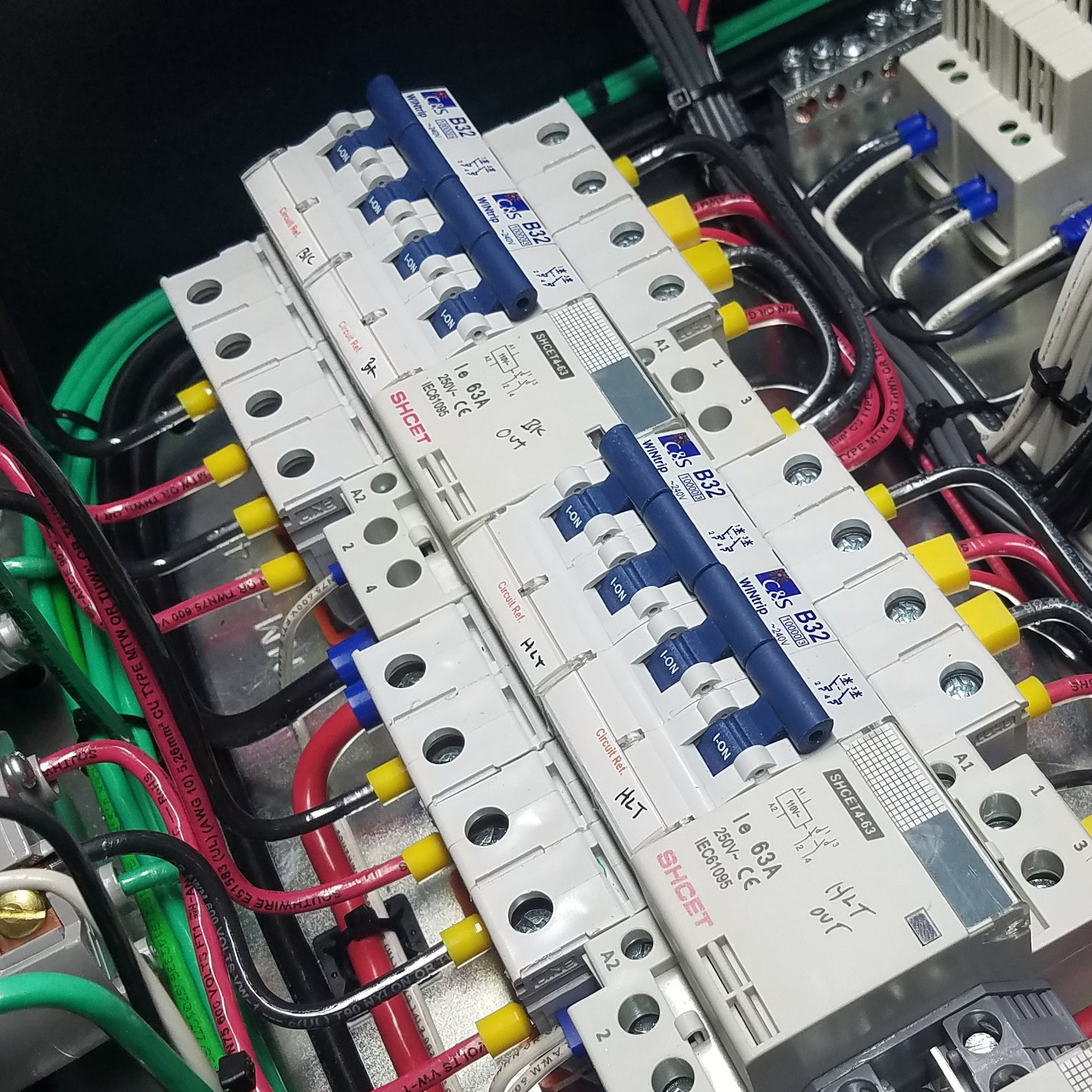

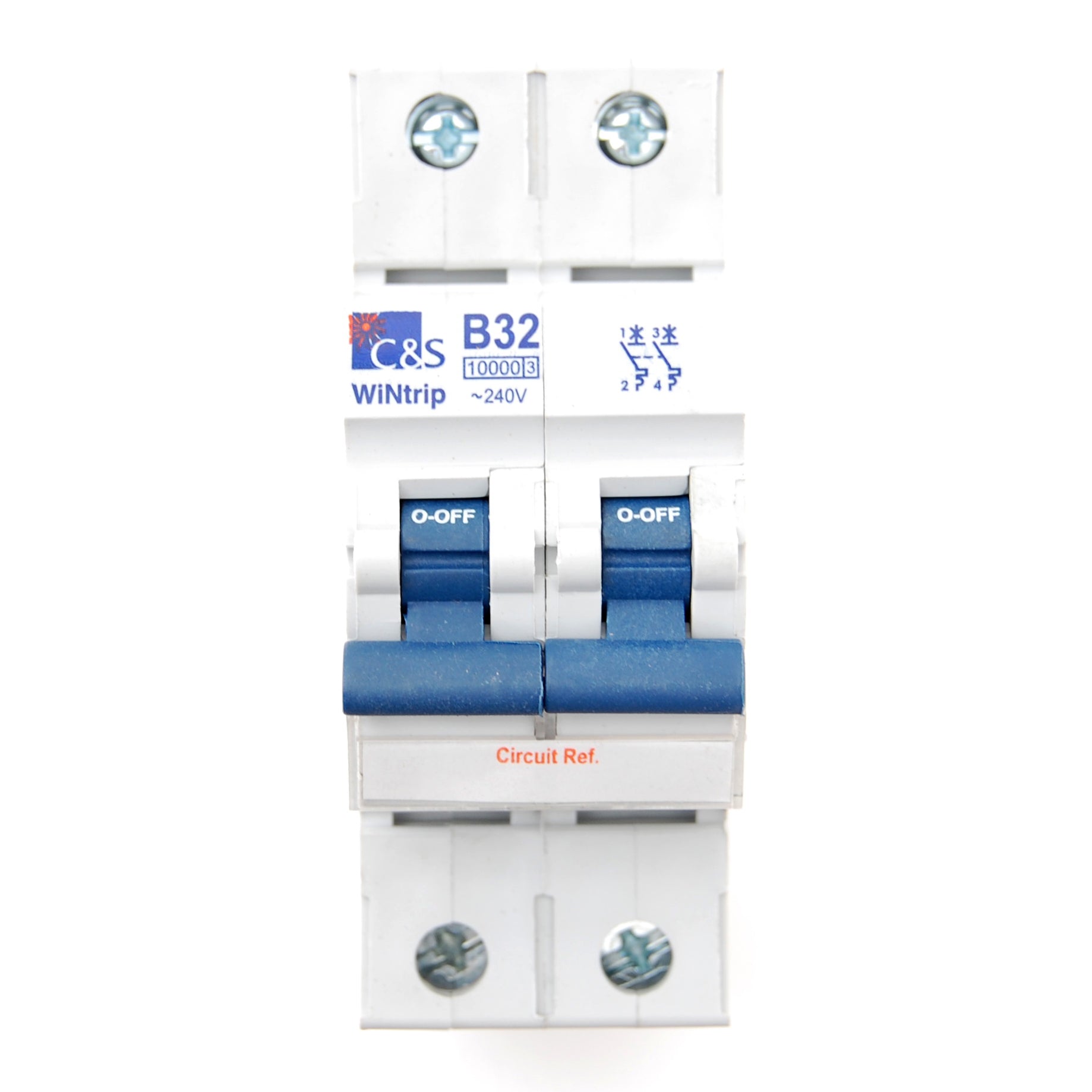

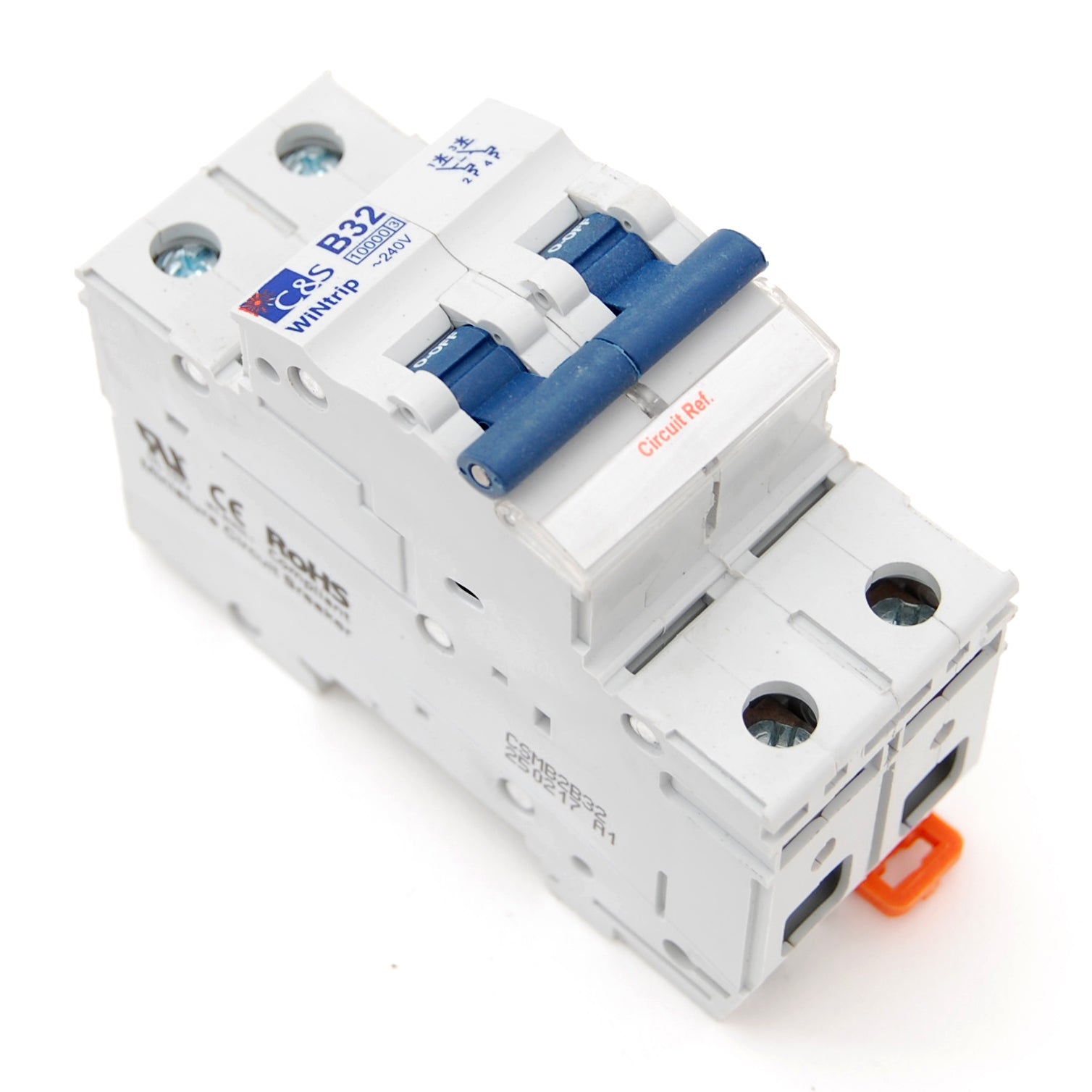

32A 2-pole breaker, DIN rail mount
$18.95 USD
32A 2-pole miniature circuit breaker that is DIN rail mountable. Used to protect wiring/equipment for heating elements (30A). This breaker does not protect the brewer. Rated Current: 32ARated Voltage: 240VRated Frequency: 50/60 HzTrip Curve: BMounting: 35mm DIN railIP20 ProtectionApprovals: UL,...
Adjustable DC power supply, 85-264V AC input, 4.75-5.5V DC output, DIN rail mount
$28.95 USD
DIN rail mount 85-264VAC to 5VDC power supply. Eliminates the need for doorbell transformers and AC/DC Power converters used in the original design. One required for each meter. You'll need a short piece of DIN rail and two DIN rail...

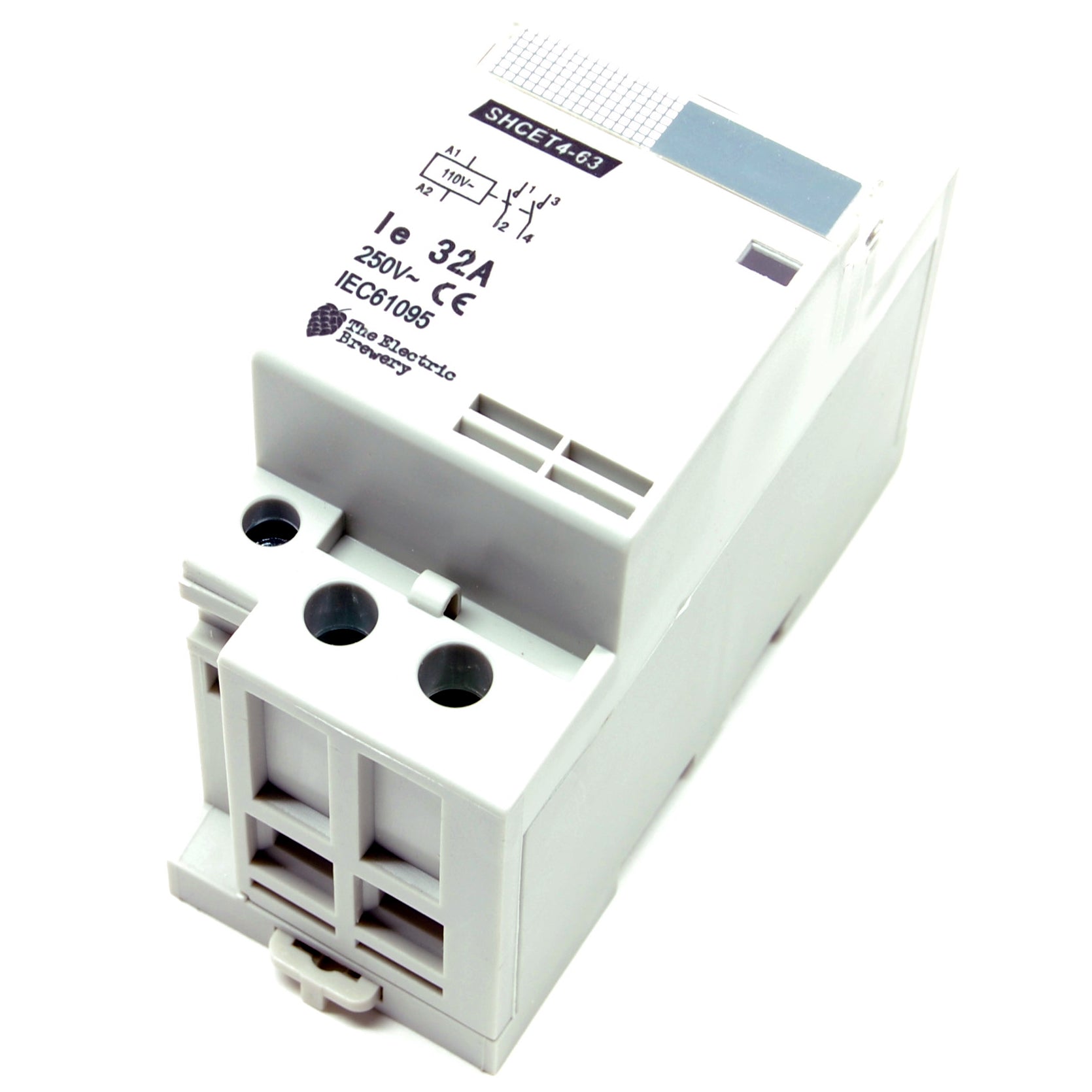

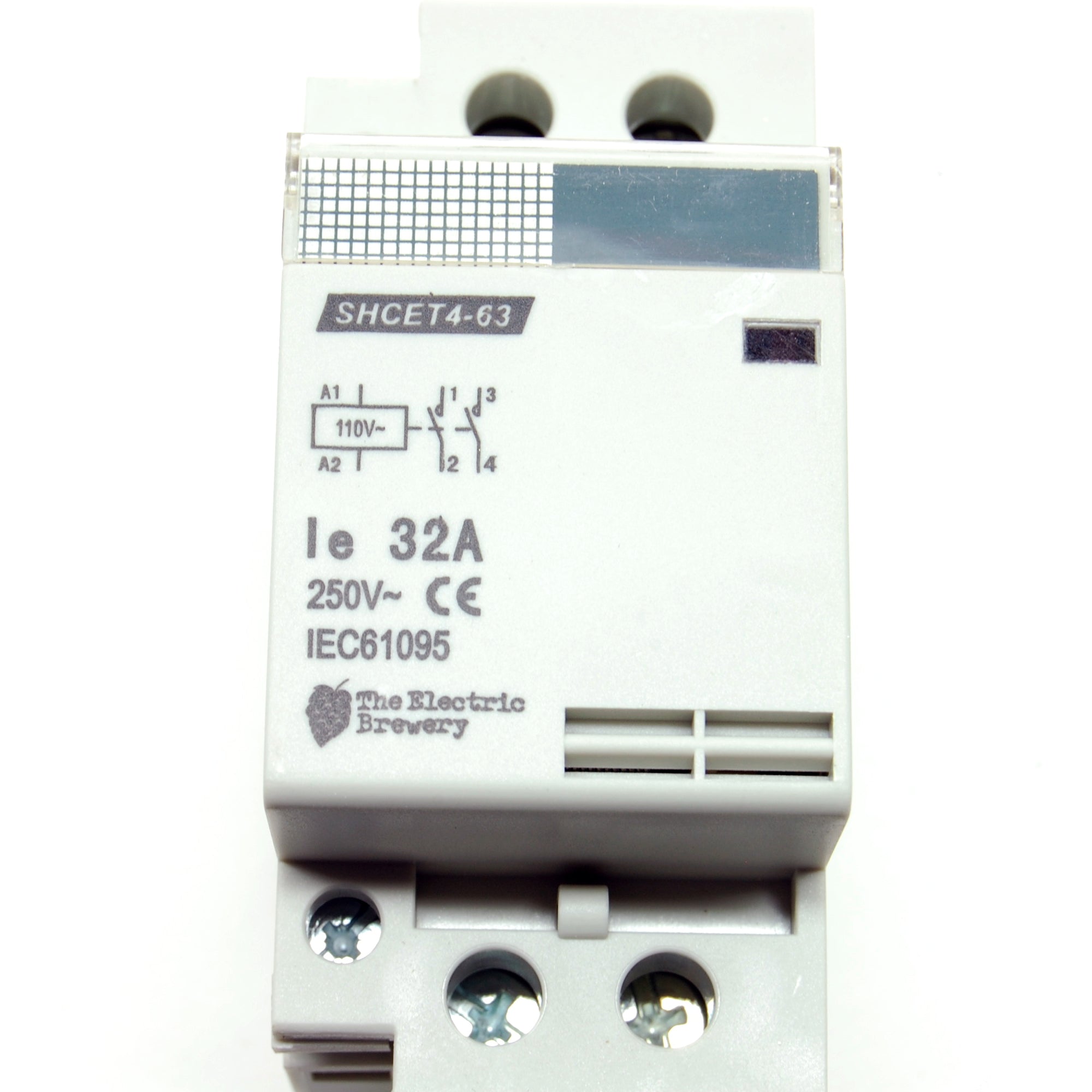

32A/250V DPST contactor, 110-120V AC coil, DIN rail mount
$34.95 USD
Two pole definite purpose contactor, DIN rail mountable. 110-120 VAC coil voltageDPSTNormally open32A max contact rating (resistive load) Can be used to switch lower current ratings as well (such as 15-30A).

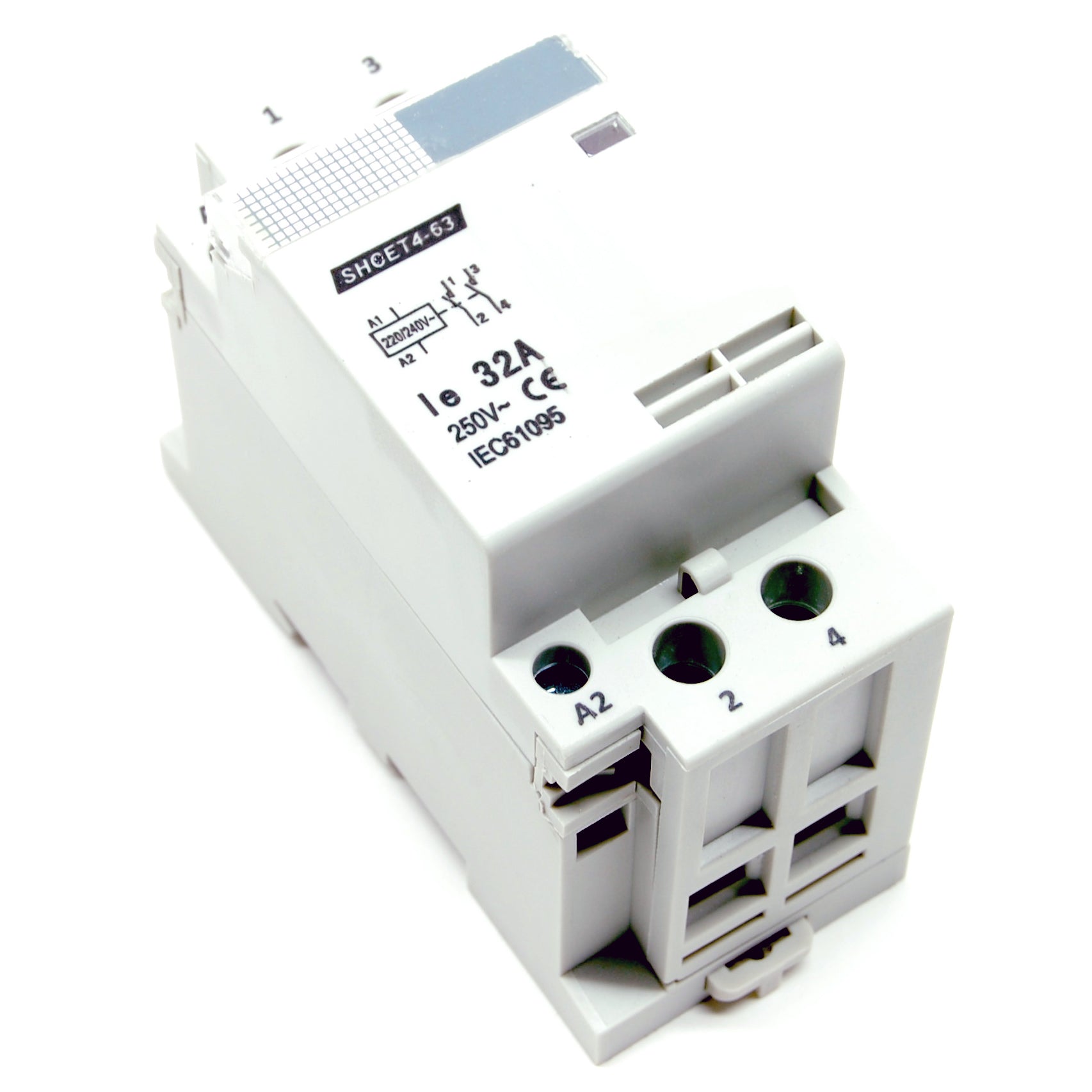

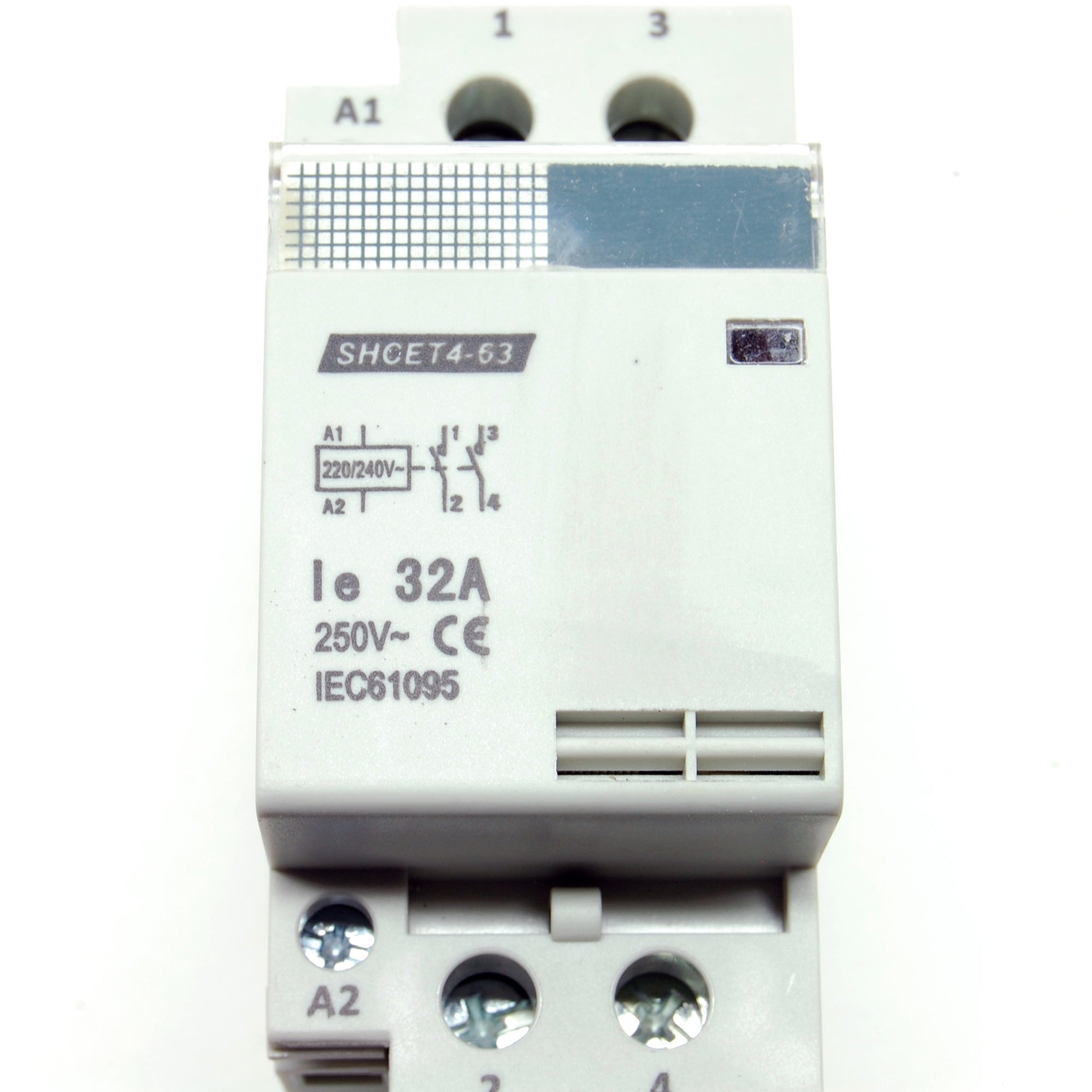

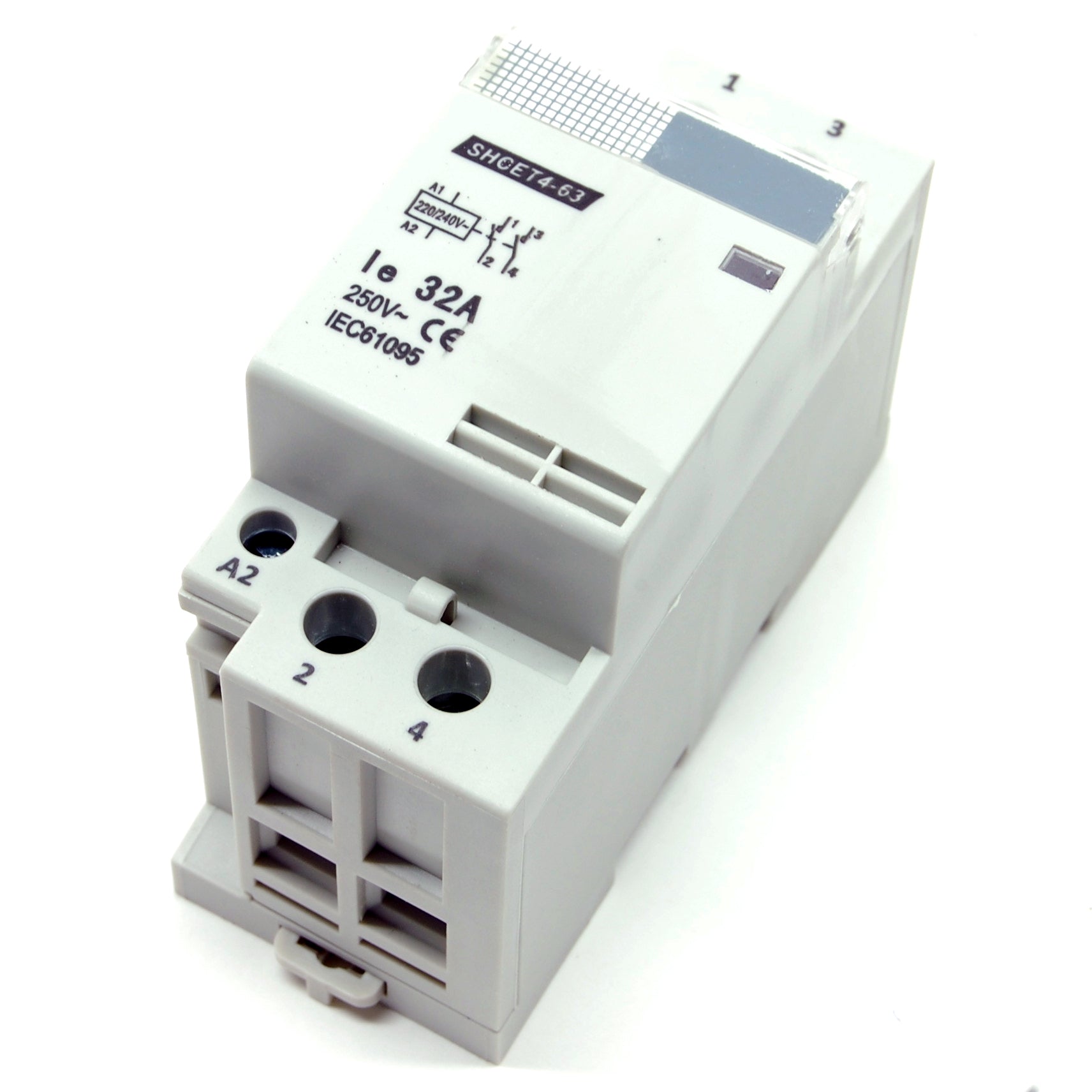

32A/250V DPST contactor, 220-240V AC coil, DIN rail mount
$34.95 USD
Two pole definite purpose contactor, DIN rail mountable. 220-240 VAC coil voltageDPSTNormally open32A max contact rating (resistive load) Can be used to switch lower current ratings as well (such as 15-30A).

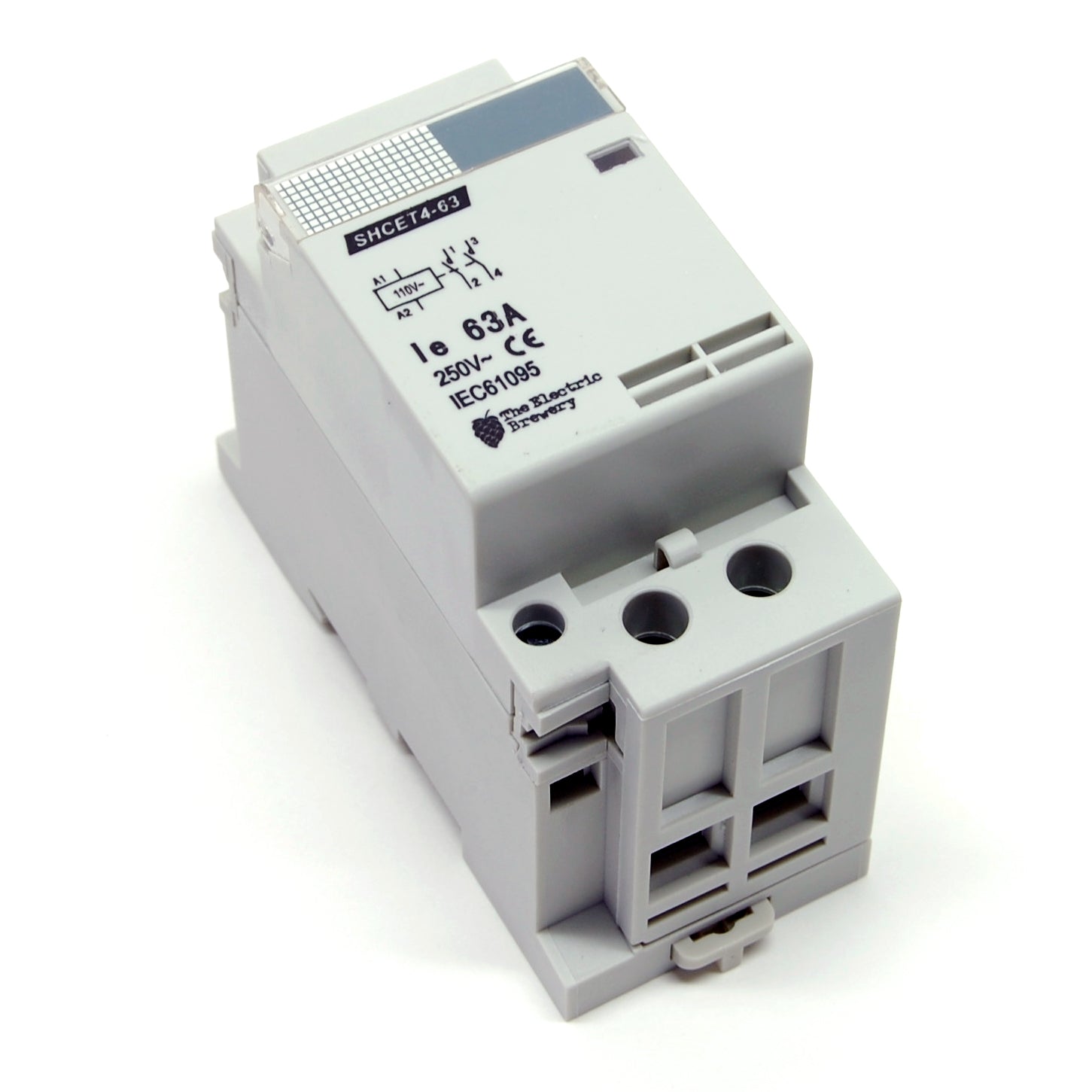

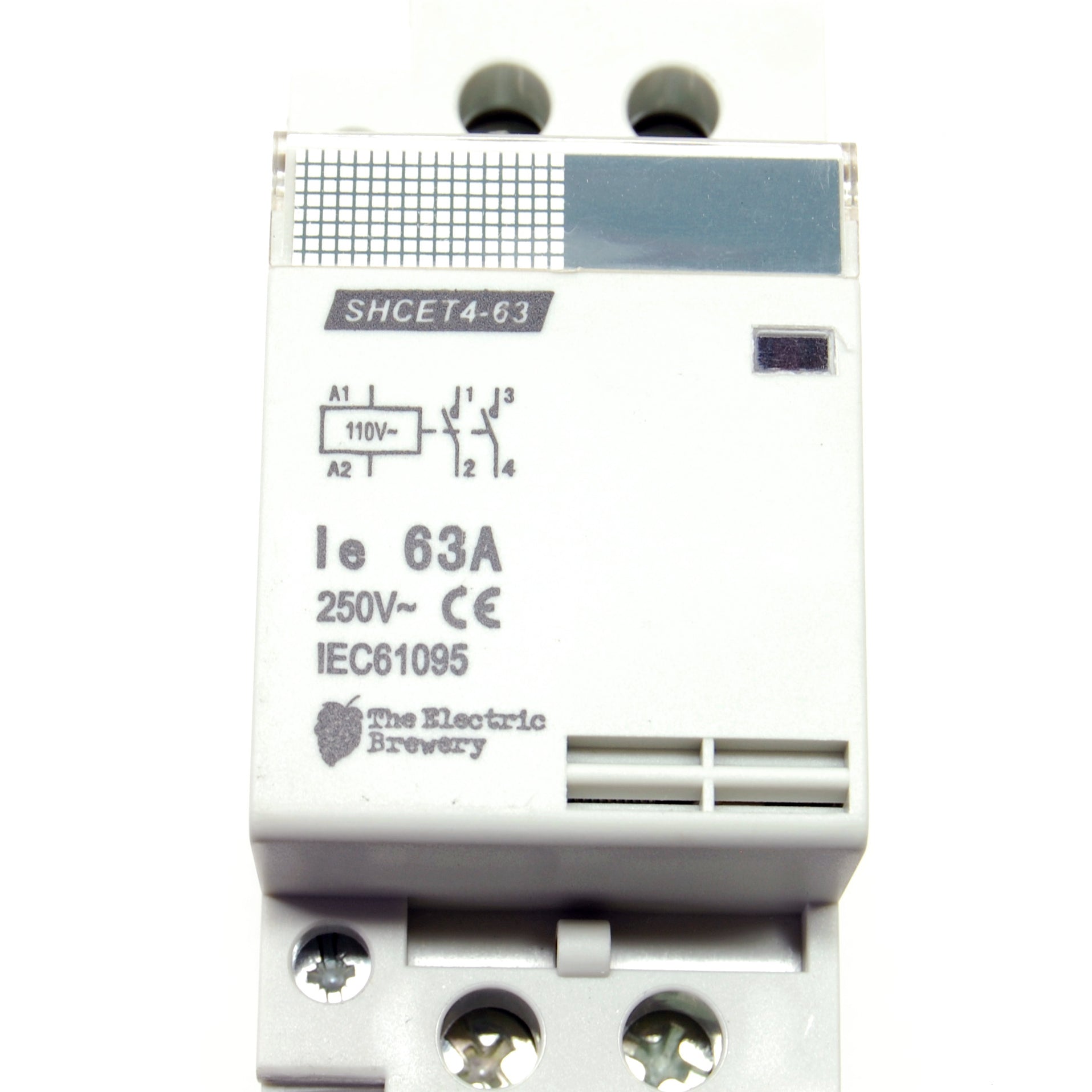

63A/250V DPST contactor, 110-120V AC coil, DIN rail mount
$34.95 USD
Two pole definite purpose contactor, DIN rail mountable. 110-120 VAC coil voltageDPSTNormally open63A max contact rating (resistive load) Can be used to switch lower current ratings as well (such as 50A and 30A). Used in our pre-assembled 50A control panels.

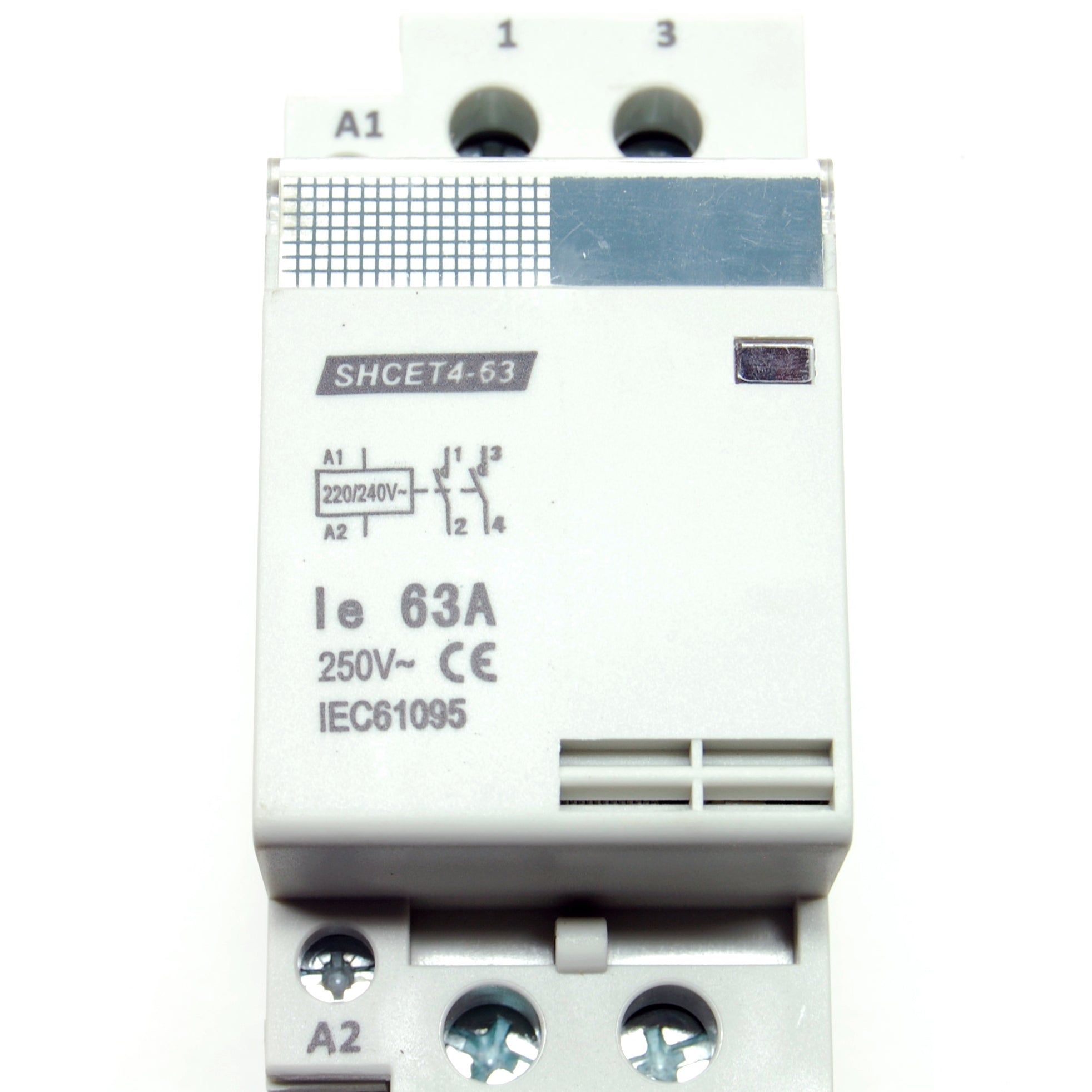

63A/250V DPST contactor, 220-240V AC coil, DIN rail mount
$34.95 USD
Two pole definite purpose contactor, DIN rail mountable. 220-240 VAC coil voltageDPSTNormally open63A max contact rating (resistive load) Can be used to switch lower current ratings as well (such as 50A and 30A).

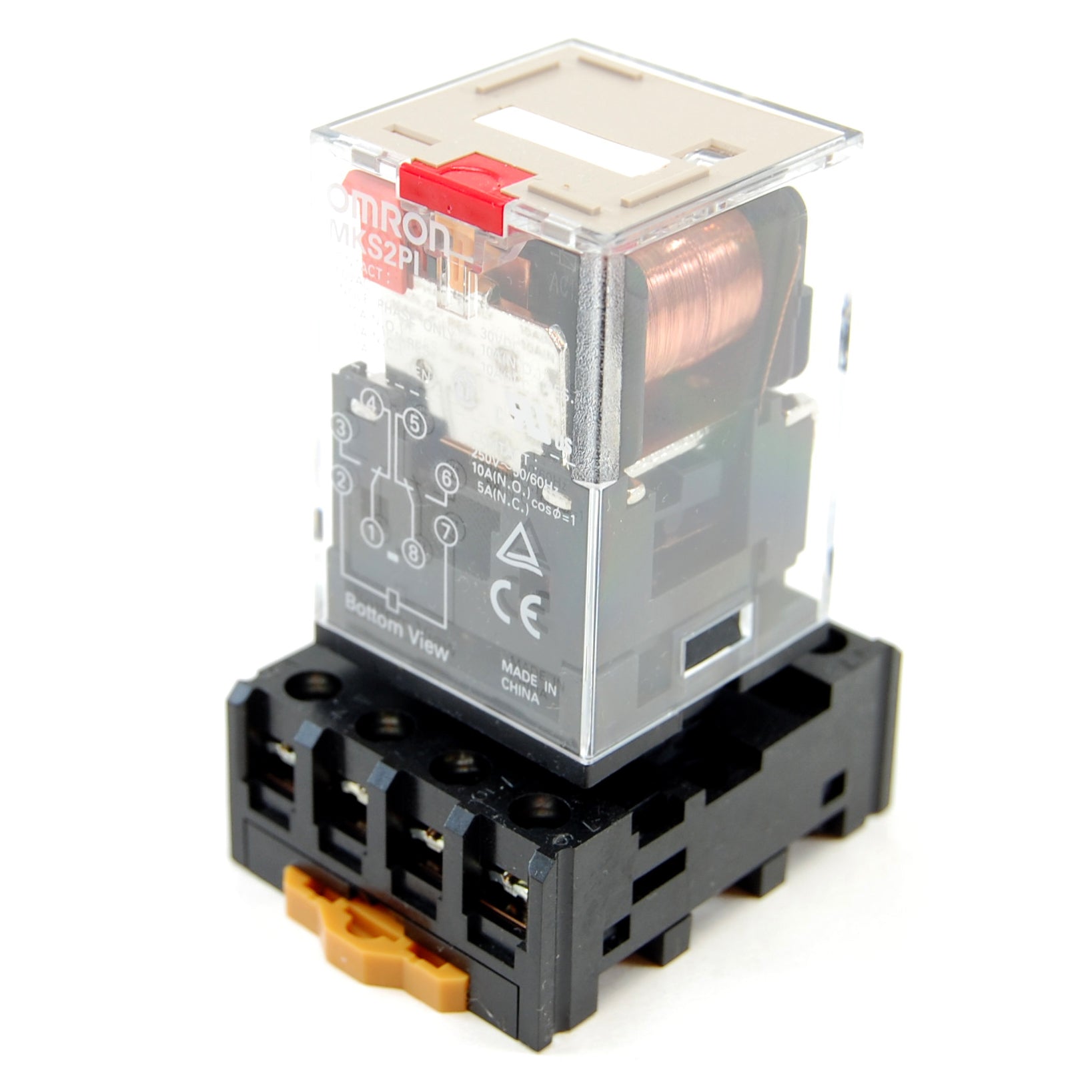

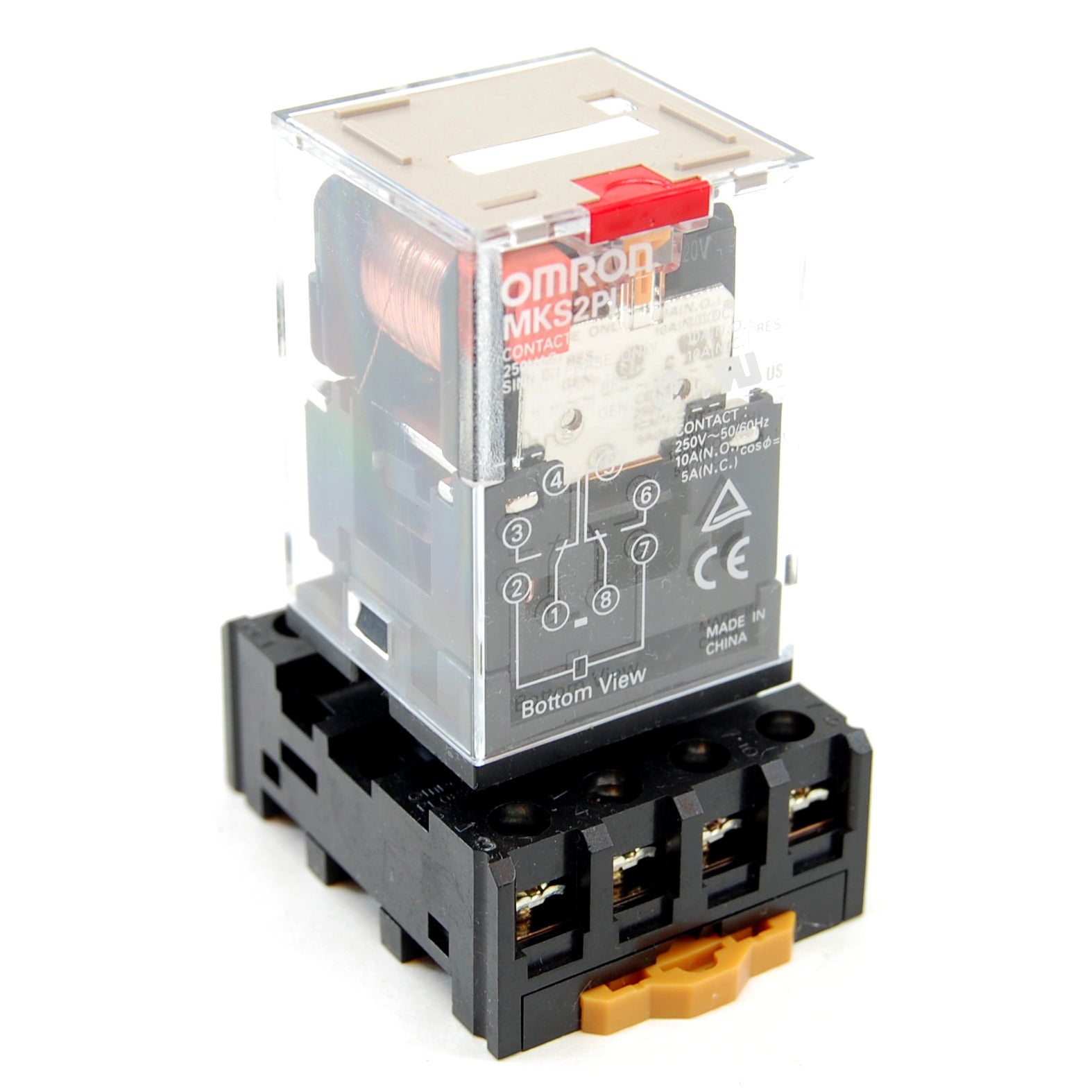

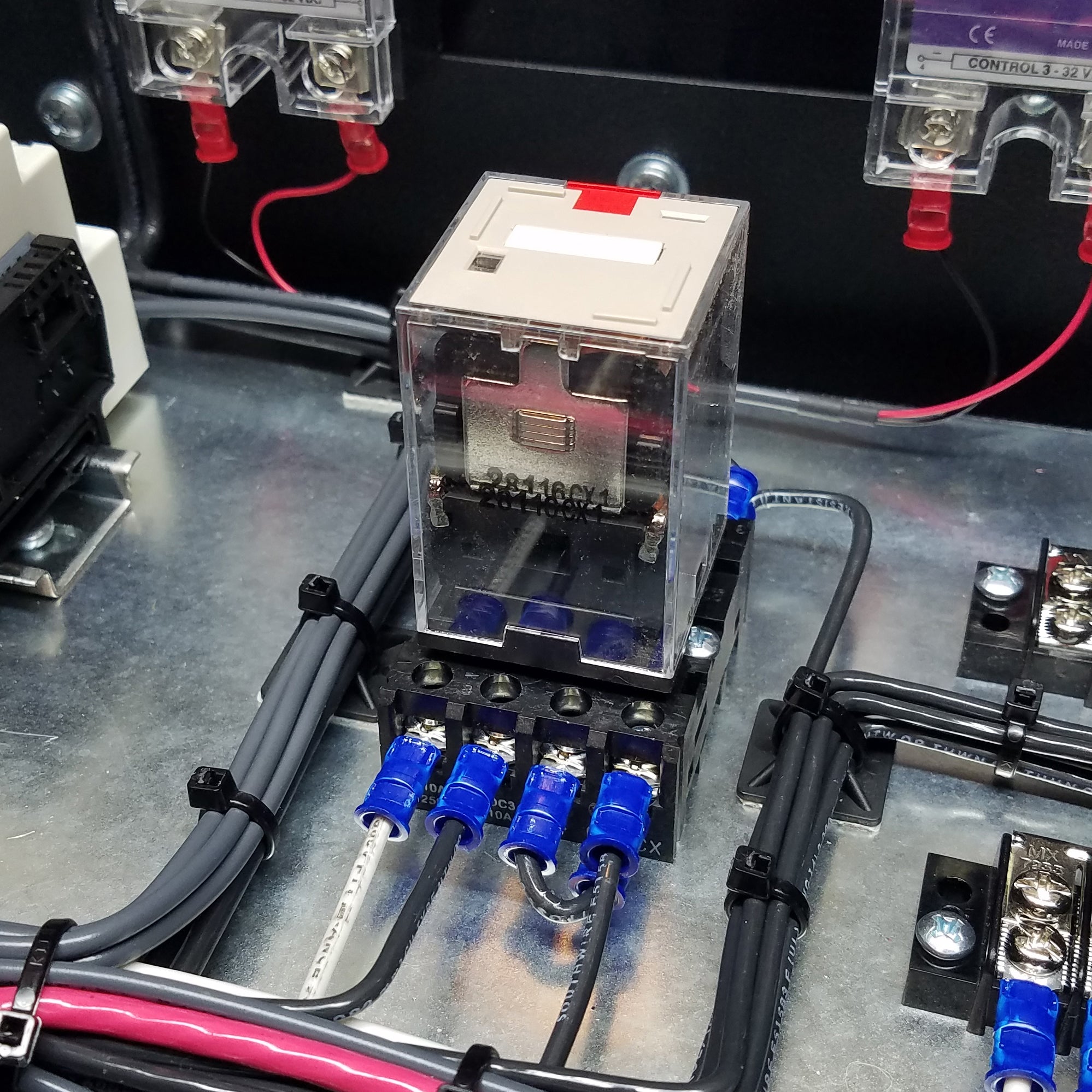

10A 8-pin 2-pole ice cube plug-in relay with socket, 110-120V AC coil
$29.95 USD
Used to implement the safe start feature found in our Electric Brewery Control Panels. Includes socket. DIN rail mountable. Included in our Electric Brewery Control Panel kits.
10A 8-pin 2-pole ice cube plug-in relay with socket, 220-240V AC coil
$29.95 USD
Used to implement the safe start feature found in our Electric Brewery Control Panels. Includes socket. DIN rail mountable. International version for 220-240V countries (United Kingdom, Australia, New Zealand, many parts of Europe, etc.). Included in our Electric Brewery Control Panel...

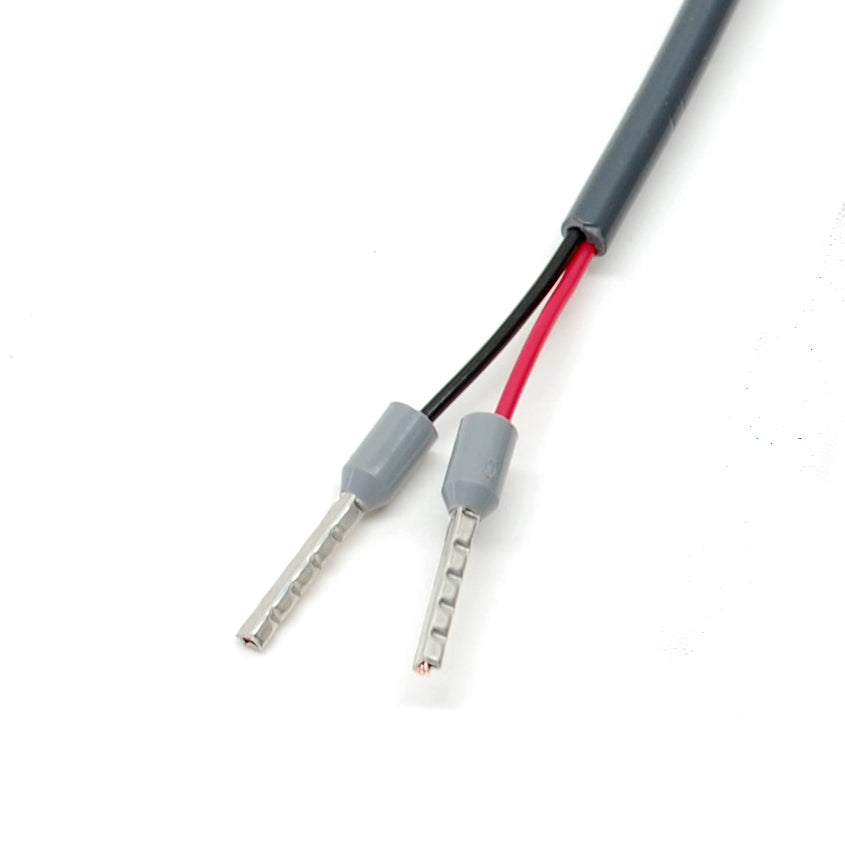

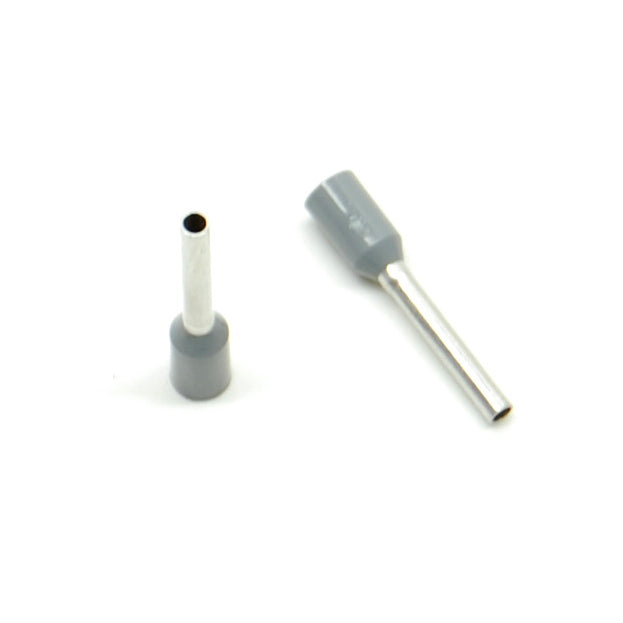

22 gauge wire ferrule (10 pack)
$2.49 USD
22 Gauge wire ferrule for use in DIN style wiring. Fits (1) 22 gauge wire, ferrule length of .39". Requires special DIN wire ferrule crimping tool. Package of 10

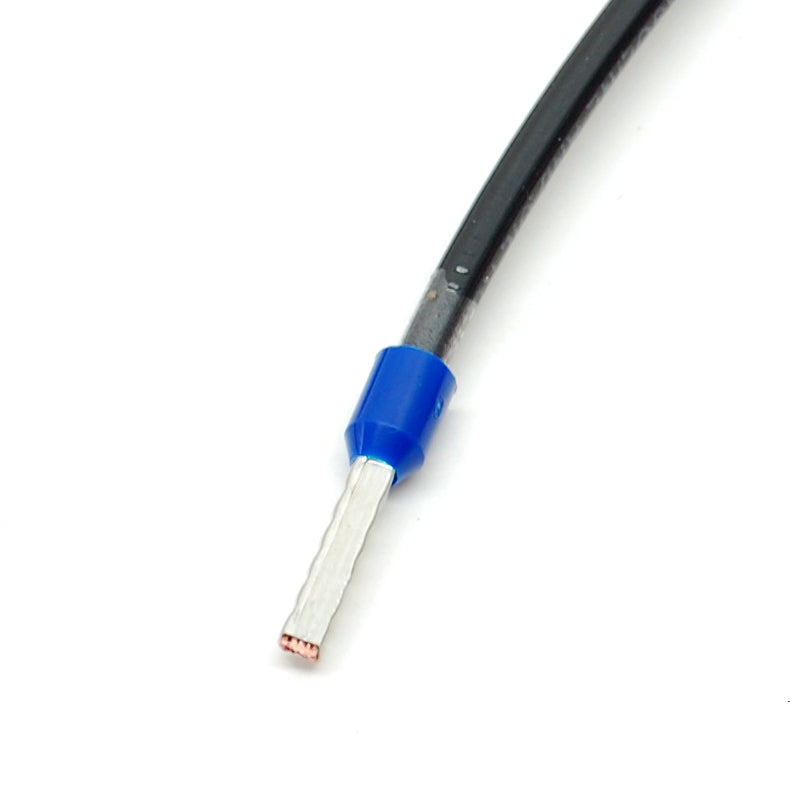

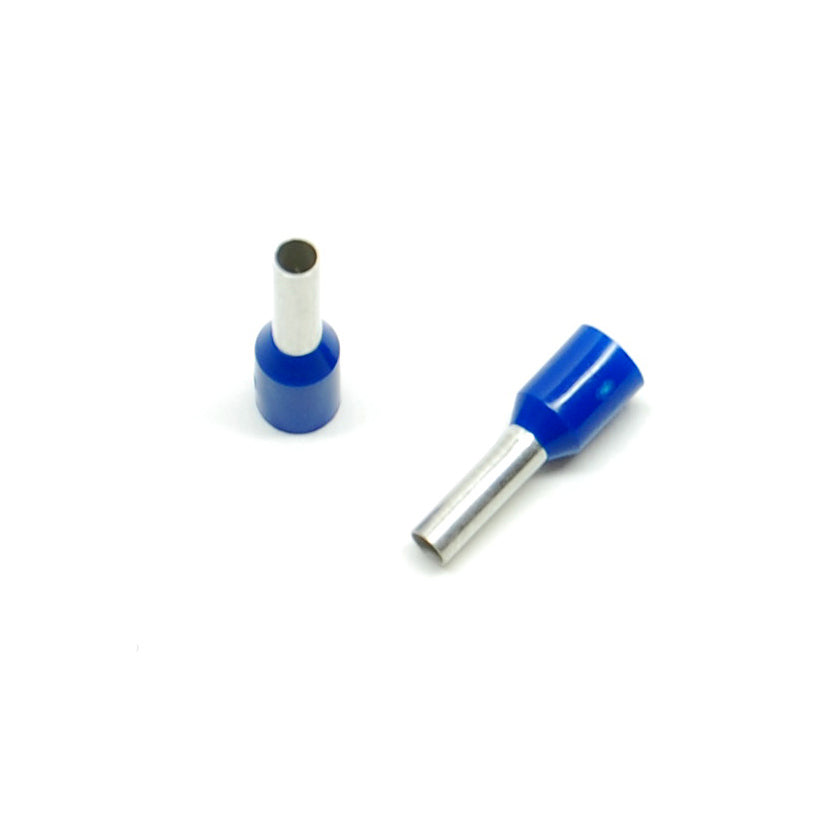

14 gauge wire ferrule, blue (25 pack)
$1.49 USD
14 Gauge wire ferrule for use in DIN style wiring. Fits (1) 14 gauge wire, ferrule length of .31". Requires special DIN wire ferrule crimping tool. Package of 25

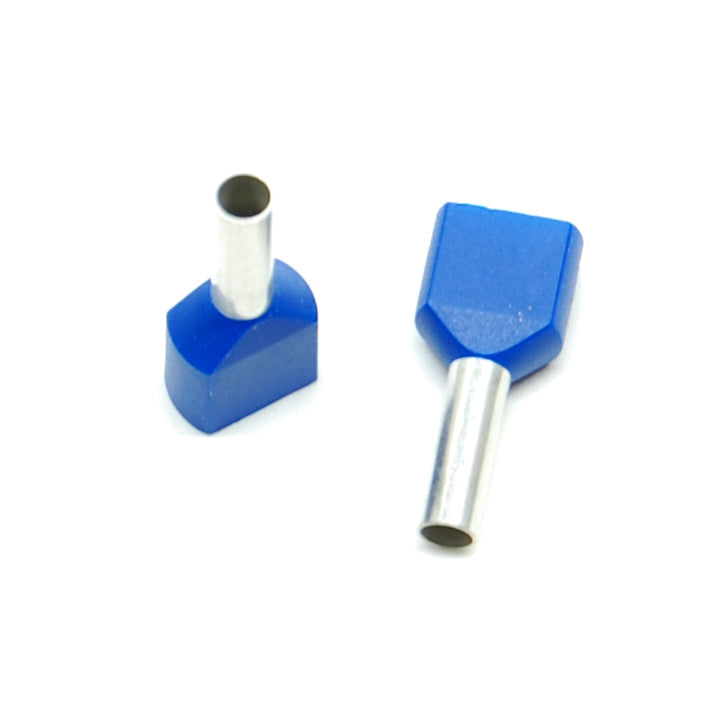

14 gauge x 2 wire ferrule, blue (25 pack)
$3.95 USD
Dual 14 gauge wire ferrule for use in DIN style wiring. Fits (2) 14 gauge wires, ferrule length of .39". Requires special DIN wire ferrule crimping tool. Package of 25

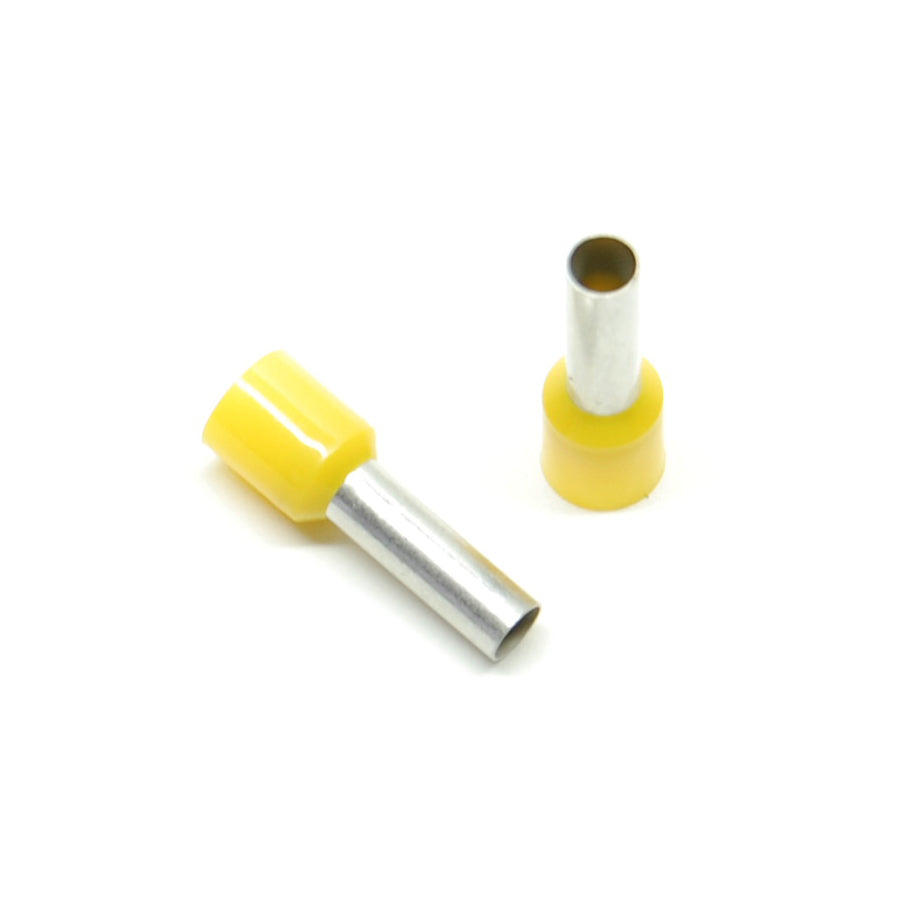

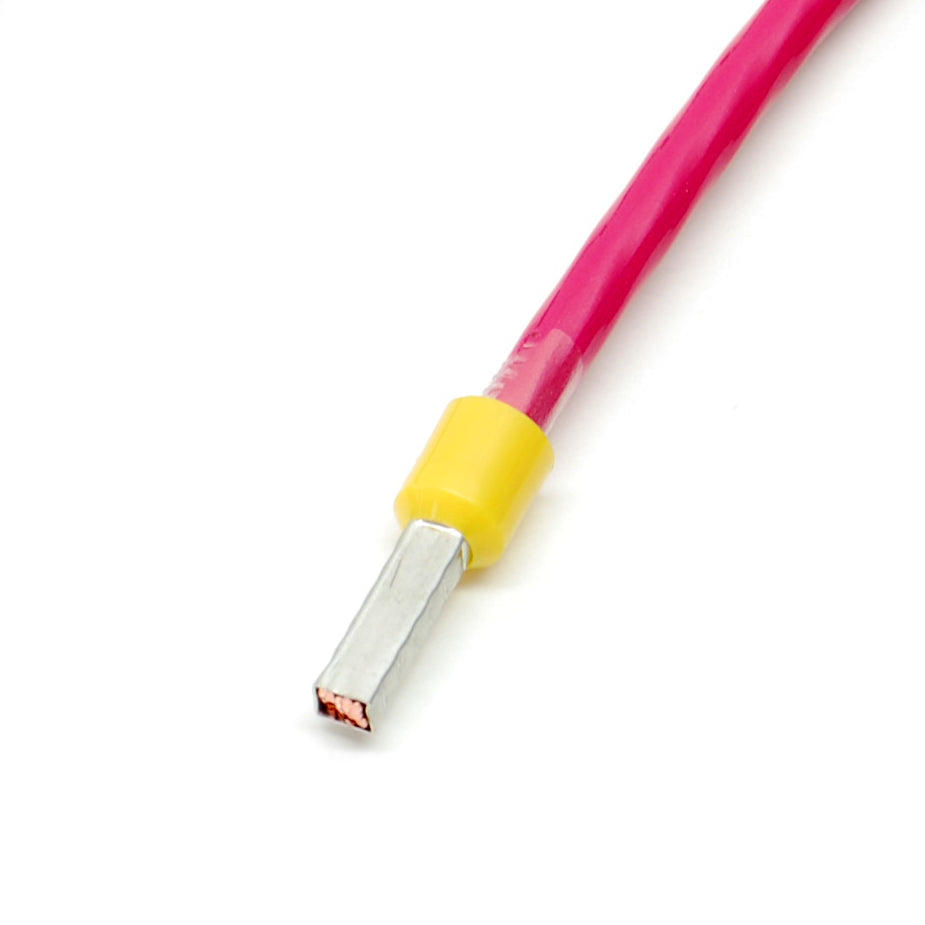

10 gauge wire ferrule, yellow (25 pack)
$3.95 USD
10 Gauge wire ferrule for use in DIN style wiring. Fits (1) 10 gauge wire, ferrule length of .47". Requires special DIN wire ferrule crimping tool. Package of 25

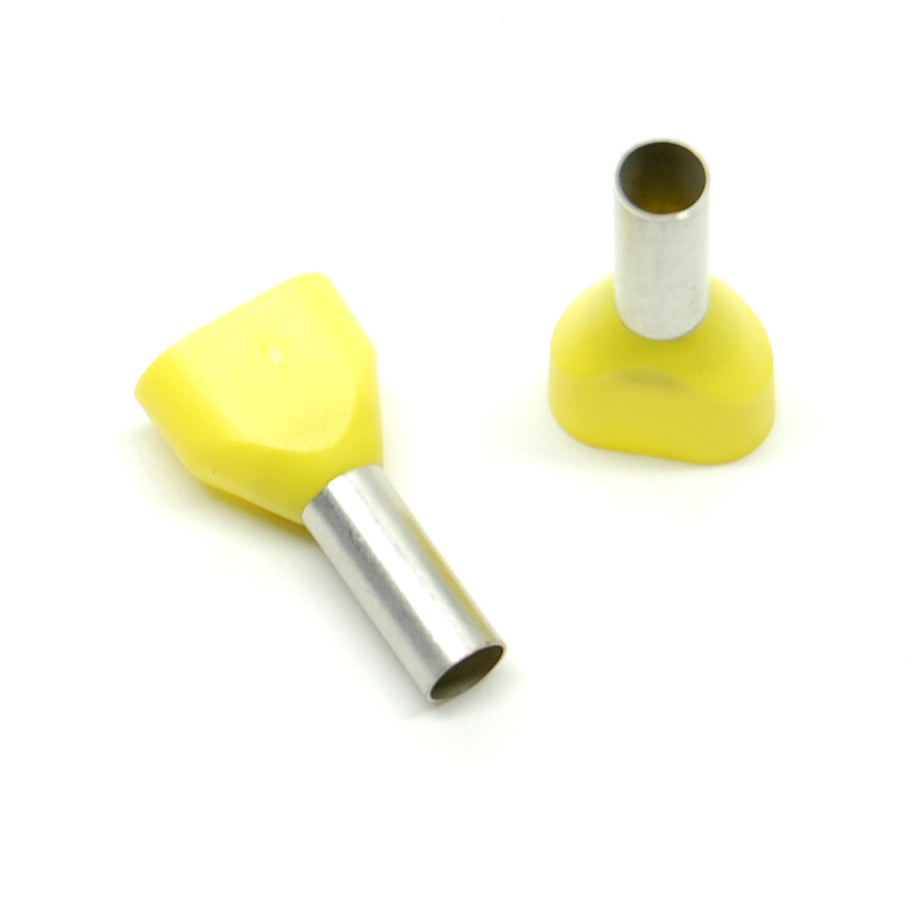

10 gauge x 2 wire ferrule, yellow (10 pack)
$2.95 USD
Dual 10 gauge wire ferrule for use in DIN style wiring. Fits (2) 10 gauge wires, ferrule length of .47". Requires special DIN wire ferrule crimping tool. Package of 10

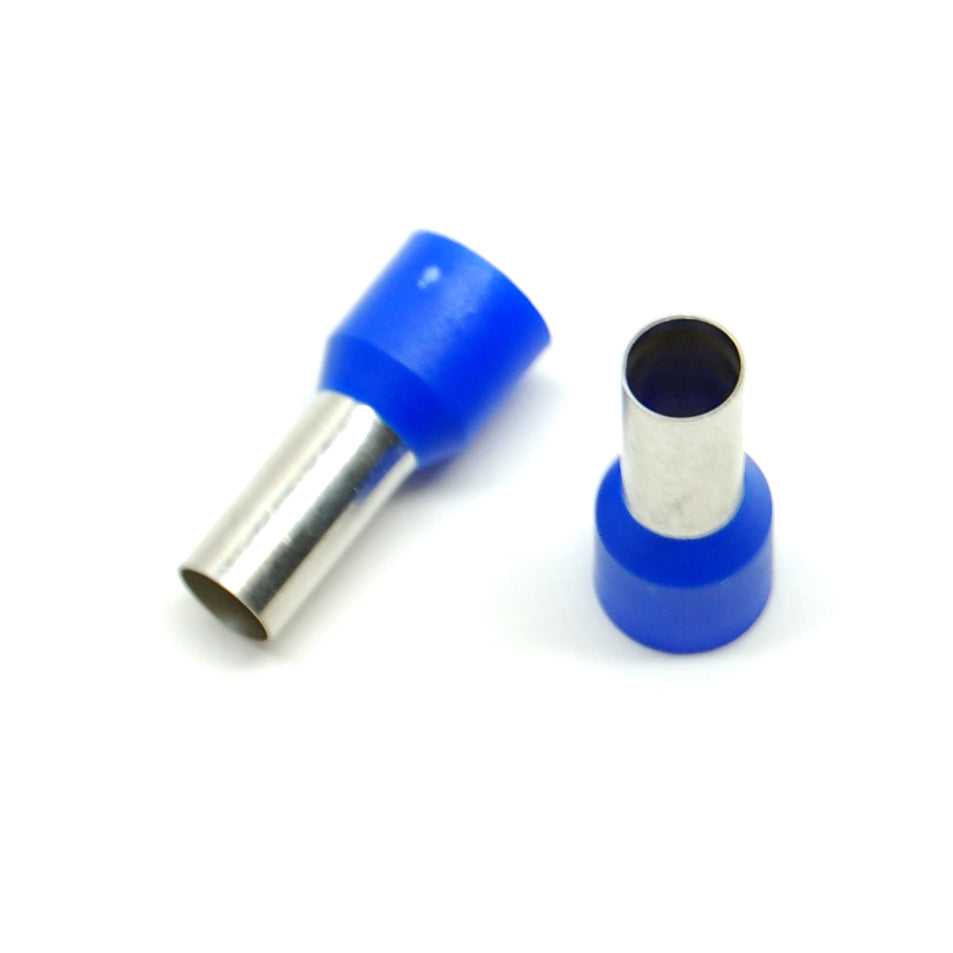

6 gauge wire ferrule, blue (10 pack)
$2.49 USD
6 Gauge wire ferrule for use in DIN style wiring. Fits (1) 6 gauge wire, ferrule length of .47". Requires special DIN wire ferrule crimping tool. Package of 10
