THE BEST BOIL KETTLE HOP FILTER AVAILABLE!
Stop using inefficient bags, tea balls, or hop spiders which limit hop utilization - let your hops roam free! The new Hop Stopper 2.0 is the best Boil Kettle hop filter we've ever used! Version 2.0 has been completely revamped and updated to maximize hop and hot break filtration while saving time. No recirculation required, no settling time required, no whirlpool required. Start draining immediately after the boil to better lock in those bright late addition hop flavours.
Works equally well with intensely hop-heavy IPAs, DIPAs, and NEIPAs with pounds of hops, to delicate light lagers with only an ounce or two. Low quantities of hops can actually be harder to filter as the hot break and other fine particulates that settle out can form a thin layer on whatever filter you're using which in turn blocks the flow. Not a concern with the Hop Stopper 2.0!
Models to fit just about any kettle are available.
Money back guarantee
The Hop Stopper 2.0 comes with a very generous return policy: Use it for up to a year from the date of purchase and if you don't like it for whatever reason, you can return it. Along the way we will work personally with every customer if they need it.
What's new in version 2.0?
- Increased filtration: The new inverted design puts the largest filtering area at the bottom of kettle to provide maximum filtration at the end of draining (where you need it the most). The innovative “Hop Cone” feature provides a pocket for hops to settle while providing maximum screen area for filtration. This new design works wonderfully with all beer styles from hoppy IPAs with a pound or more of hops to light lagers with only an ounce or two.
- Faster filtering: Previously the pump had to be slowed once the filter was exposed to air. This is no longer true with the Hop Stopper 2.0. Keep the pump running at higher speed for reduced chill times. We cool 12 gallons of wort to pitch temp in less than 15 minutes! Faster cooling means better locking in of late hop addition flavours, important for hop forward beers.
- Recirculation: Improved performance for immersion chillers and recirculation processes. (Refer to the user's manual for speed details).
- Reduced height: Low profile design meant for tight spaces, including under heating elements.
- Quick push-fit dip tube: The new high temperature silicone grommet eliminates all clamps and screws and can be used with virtually any existing dip tube.

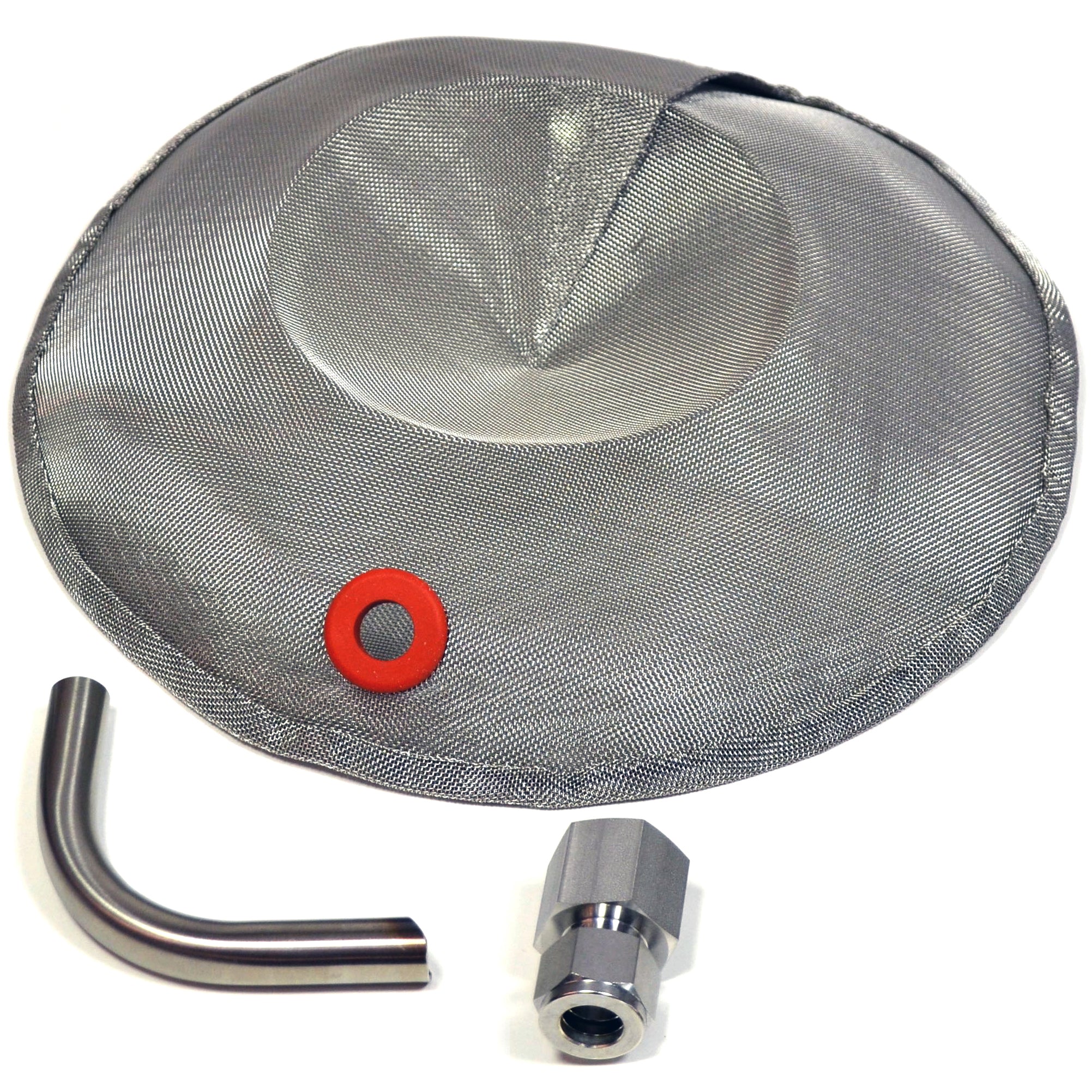

- More kettle options: Available for just about any boil kettle, with optional custom dip tubes and NPT connectors for kettles with threaded fittings.
What does the Hop Stopper 2.0 filter? What kind of hops can I use?
The Hop Stopper 2.0 filters out any types of hops you want to throw at it including pellet hops and whole leaf (cone) hops. It also filters out hot break and other coagulates, as well as any spices or special kettle additions you may wish to use. If using an immersion chiller it will also filter out cold break.
How does the Hop Stopper 2.0 compare to using strainer bags or hop spiders?
Some brewers like to put their hops in little bags, tea balls, spice infusers, or hop spiders that hang off the side of the kettle. While these solutions can filter out hops at the end of the boil, they do nothing to keep the hot break, cold break, and other coagulates out of your fermenter. They only filter out hops. Most cause the hops to clump together, reducing oil extraction. Fine mesh hop spiders and bags restrict flow which further reduces hop utilization. The fabric bags that some brewers use may not be food safe.
The Hop Stopper 2.0 on the other hand allows for efficient filtering of hop break, cold break (if using an immersion chiller), and hops. Quite a bit of research and testing went into developing the Hop Stopper 2.0 resulting in a mesh that is fine enough to filter out debris, but still large enough to allow flow through the screen. The Hop Stopper 2.0 ensures maximum possible hop utilization since the hops are not contained but free in the total boil volume and then filtered after the boil is over. Maximize your hop potential by letting your hops roam free! (Same as when dry hopping).
What kettles will the Hop Stopper 2.0 work with?
Hop Stoppers are available for any kettle size from just about any manufacturer. See out complete line of Hop Stopper products. Not sure what's right for you? Contact us with your kettle brand, size, and type of fitting.
What sizes of Hop Stopper 2.0 are available?

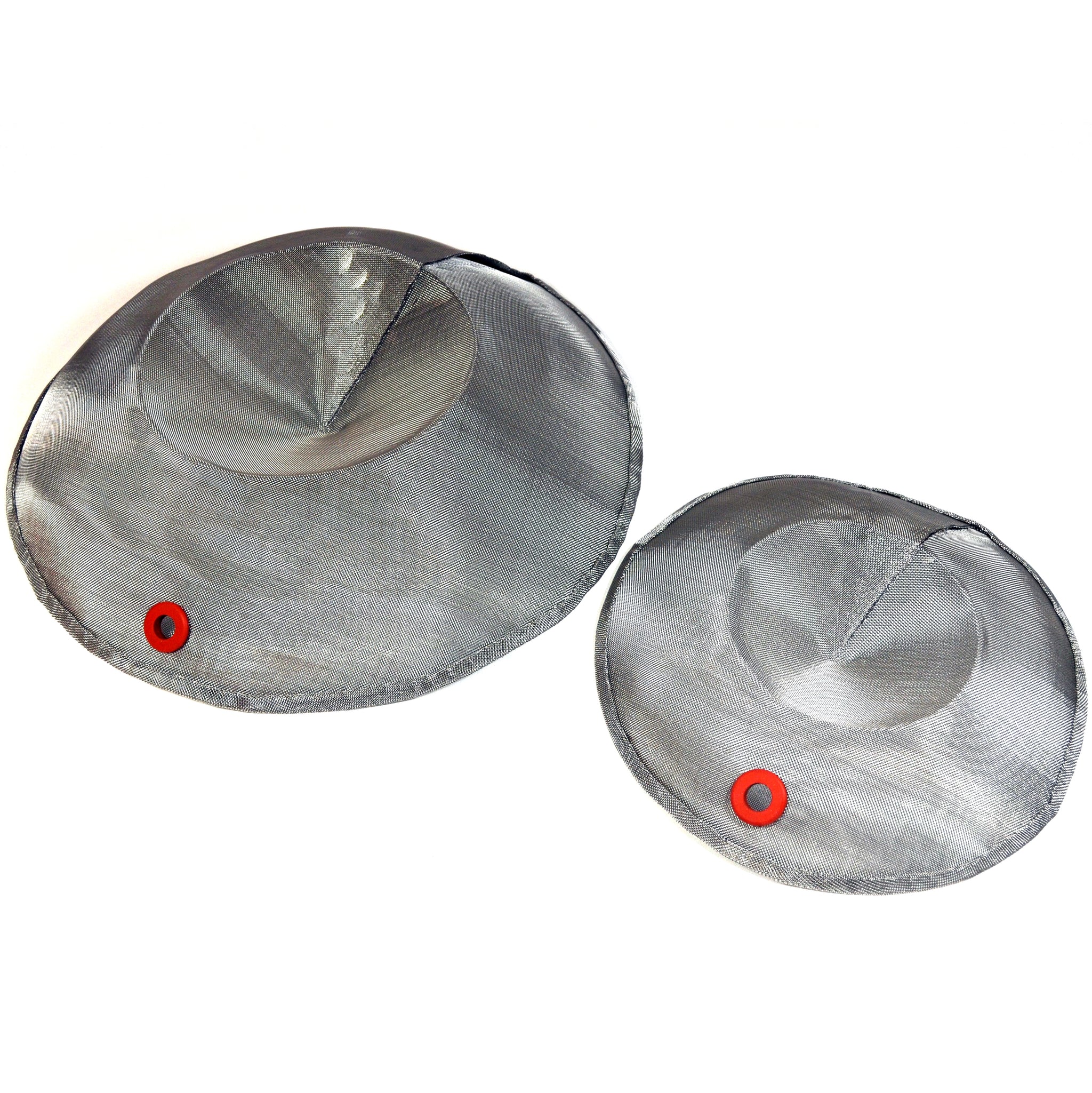

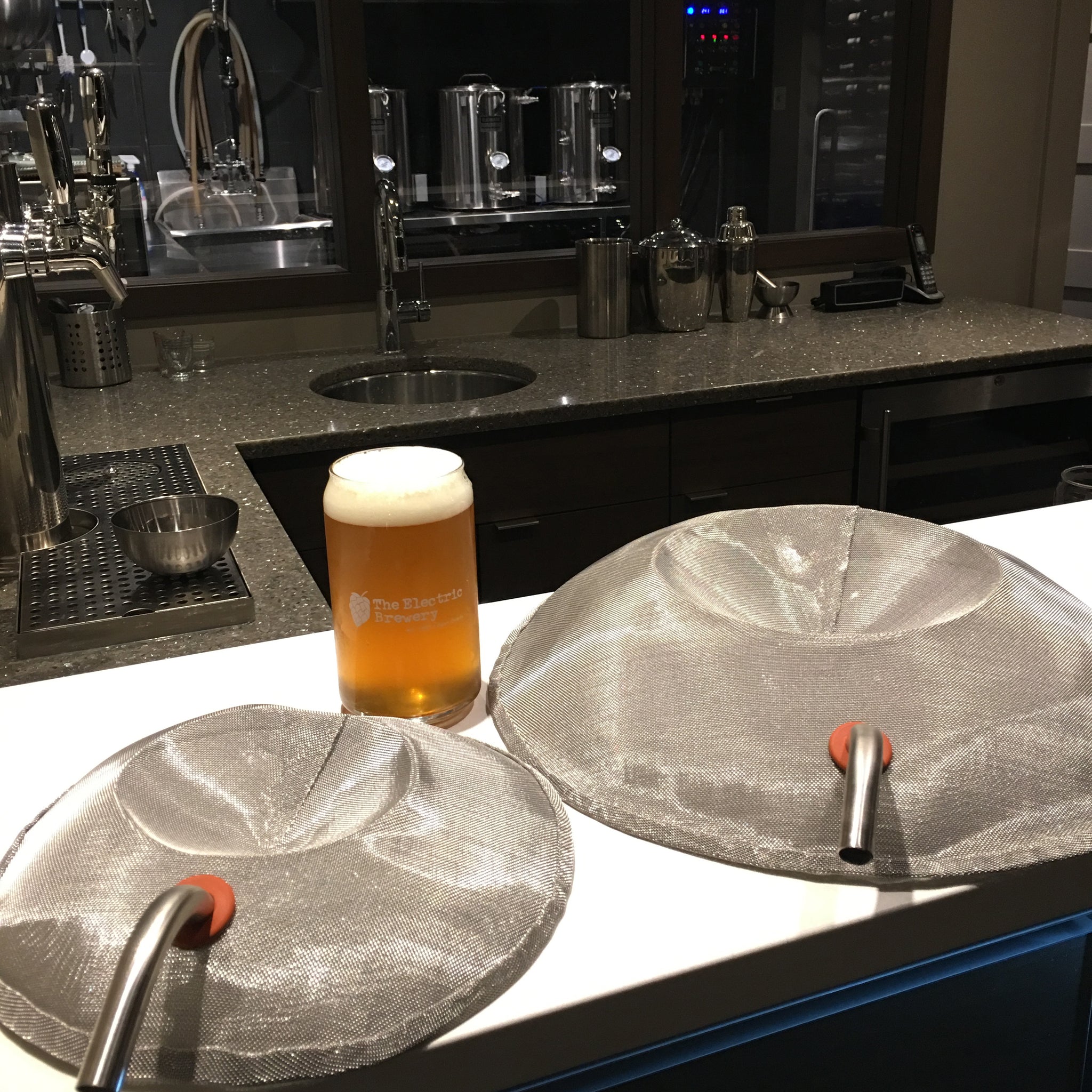

Two sizes are available: Standard and XL (extra large). The standard is 9.75" in diameter and 2" high (minus dip tube) while the XL version is 14.25" in diameter and 3" high (minus dip tube).
What size do I need? What is the maximum amount of hops the Hop Stopper 2.0 can handle?
- Hop Stopper 2.0: For kettles up to and including 30 gallons in size
- Hop Stopper 2.0 XL: For kettles larger than 30 gallons in size
The Hop Stopper 2.0 was designed to offer filtering performance regardless of your processes, however, things like immersion chilling and recirculation create an added workload for the screen. The standard Hop Stopper 2.0 should be able to handle any hop load (including overhopped IPAs and NEIPAs) for kettles up to 30 gallons. For kettles larger than 30 gallons or for situations that require an extra amount of filtering such as boil kettle recirculating setups, the Hop Stopper 2.0 XL is recommended as the larger size provides more than double the surface filtering area.
Note: While your boil kettle may be able to accommodate the diameter of the Hop Stopper 2.0 XL, be sure to take into account other items installed in your kettle such as heating elements which may make it difficult to maneuver the Hop Stopper 2.0 XL into position. For example, our Blichmann 20 gallon kettle with a heating element will not accept the Hop Stopper 2.0 XL even though the overall diameter of the kettle is nearly 4" wider than required and we have enough clearance below the heating element. The issue is that there simply isn't enough room to maneuver the Hop Stopper 2.0 XL into position due to the heating element (centered 4" from the bottom). No concerns here as the standard sized Hop Stopper 2.0 provides excellent filtering for even heavily hop loaded beers in kettles up to and including 30 gallons in size.
Does the Hop Stopper 2.0 work with gas and electric setups?
Yes. How you heat (gas, electric, or steam) does not matter.
Does the Hop Stopper 2.0 work with gravity fed setups?
Yes. The Hop Stopper 2.0 does not require a pump to work.
Does the Hop Stopper 2.0 work with all-grain, extract, 3-kettle, 2-kettle, single kettle or BIAB setups?
Yes. You can brew both extract and all-grain in any type of kettle setup including BIAB (Brew in a Bag).
Do I still need to whirlpool?
No! That's a huge benefit of the Hop Stopper: After the boil there is no need to whirlpool and then allow your trub and hops to settle in a cone before draining the kettle. You can start draining immediately after the boil. Flame (or element) off and start chilling immediately. This not only saves time, but also helps locks in those bright late addition hop flavours instead of simply adding more bitterness. Ideal for IPAs, DIPAs, and NEIPAs.
I whirlpool to sanitize my chiller. Can I still do that?
Yes. Keep the speed below 1 GPM (gallon per minute). Faster flow doesn't offer any benefits when sanitizing. Refer to the user's manual for more information.
Can I replace my original Hop Stopper with the Hop Stopper 2.0?
Yes. Assuming you purchase the same size (standard or XL) the Hop Stopper 2.0 is a drop in replacement for the original Hop Stopper and will fit in your setup. No modifications required.
Can I re-use the dip tube from my original Hop Stopper with the Hop Stopper 2.0?
Maybe. You can reuse the dip tube from your old Hop Stopper if you trim the end to make it shorter horizontally. For example, a typical dip tube for the old BK30 model was over 6” long, but it could be cut down to about 3” to be used with the Hop Stopper 2.0 screen. If in doubt, order your Hop Stopper 2.0 with a new dip tube.
Can I use the dip tube from my Blichmann kettle with the Hop Stopper 2.0?
Yes, but with a modification: While the Hop Stopper 2.0 dip tube supplied for a Blichmann kettle is the same height and length as the one that Blichmann ships with their kettles, the Hop Stopper 2.0 dip tube has a special notch cut out that is critical for the proper functioning of the filter. To use your existing Blichmann dip tube, this notch will also have to be cut. See the user's manual for instructions. We recommend not altering your kettle's original dip tube in case it ever needs to be repurposed, and instead ordering a Hop Stopper 2.0 made specifically for a Blichmann kettle as the special notched dip tube is already included.
Can I use the Hop Stopper 2.0 with a SS Brewtech kettle (non-BME version)?
Yes, the dip tube will require modification however. Three options are available:
- Purchase a Hop Stopper for SS Brewtech and we will include a modified dip tube. Keep your existing (unmodified) dip tube as a backup.
- Send us your existing dip tube for modification and order a Hop Stopper 2.0 (screen only option). We will modify your dip tube for free and return it with your Hop Stopper order. Contact us if interested.
- Modify your own dip tube and order the Hop Stopper 2.0 screen only. See below for modification instructions.
The kettle dip tube uses a proprietary design with O-rings and O-ring grooves to mount into the specially designed outlet port (see picture below):
To use the existing SS Brewtech dip tube the trub dam must be removed. The tube surface then has to be smoothed to fit into the sealing grommet on the Hop Stopper, and the end of the tube must be notched to assure wort flow at all times. The modifications are not difficult, but do require a bit of care. Refer to the video below:
Can I supply my own dip tube? Can I buy just the screen?
Yes. The two sizes of Hop Stopper 2.0 screens may be purchased separately without dip tubes.
How do I measure the vertical height of the kettle outlet?
When ordering a Hop Stopper with a custom dip tube we need to know your outlet port height relative to the bottom of the kettle (distance 'X' in the figure below):
Place a board or other straight and rigid object across the top of the kettle or keg (a 2 x 4 works well). Measure from the underside of the board down to the bottom center of the kettle (Dim A). Write this number down. Now measure from the underside of the board down the outside of the kettle to the center of the outlet fitting (Dim B). Subtract B from A to get X. X is the dip tube vertical height. Although the figure above shows a converted keg, this procedure also works for flat bottomed kettles.
Can I use a pump with the Hop Stopper 2.0?
In cases where a pump will be used, it is recommended to keep the flow rate below 1 GPM (gallon per minute). The reason for this is to avoid compacting trub on the surface of the screen and potentially drawing a negative pressure inside the screen cavity. A pump makes it possible to flow wort through the screen faster than it can naturally flow which can pull negative pressure inside the screen cavity and potentially collapse it. Keeping the flow rate below 1 GPM will help keep this from happening.
Due to the new design of the Hop Stopper 2.0, there should be no need to slow the pump rate to a very slow trickle as soon as the Hop Stopper 2.0 becomes exposed to air (as was the case in the original design). Keep the same rate throughout the chill.
How do I clean the Hop Stopper 2.0?

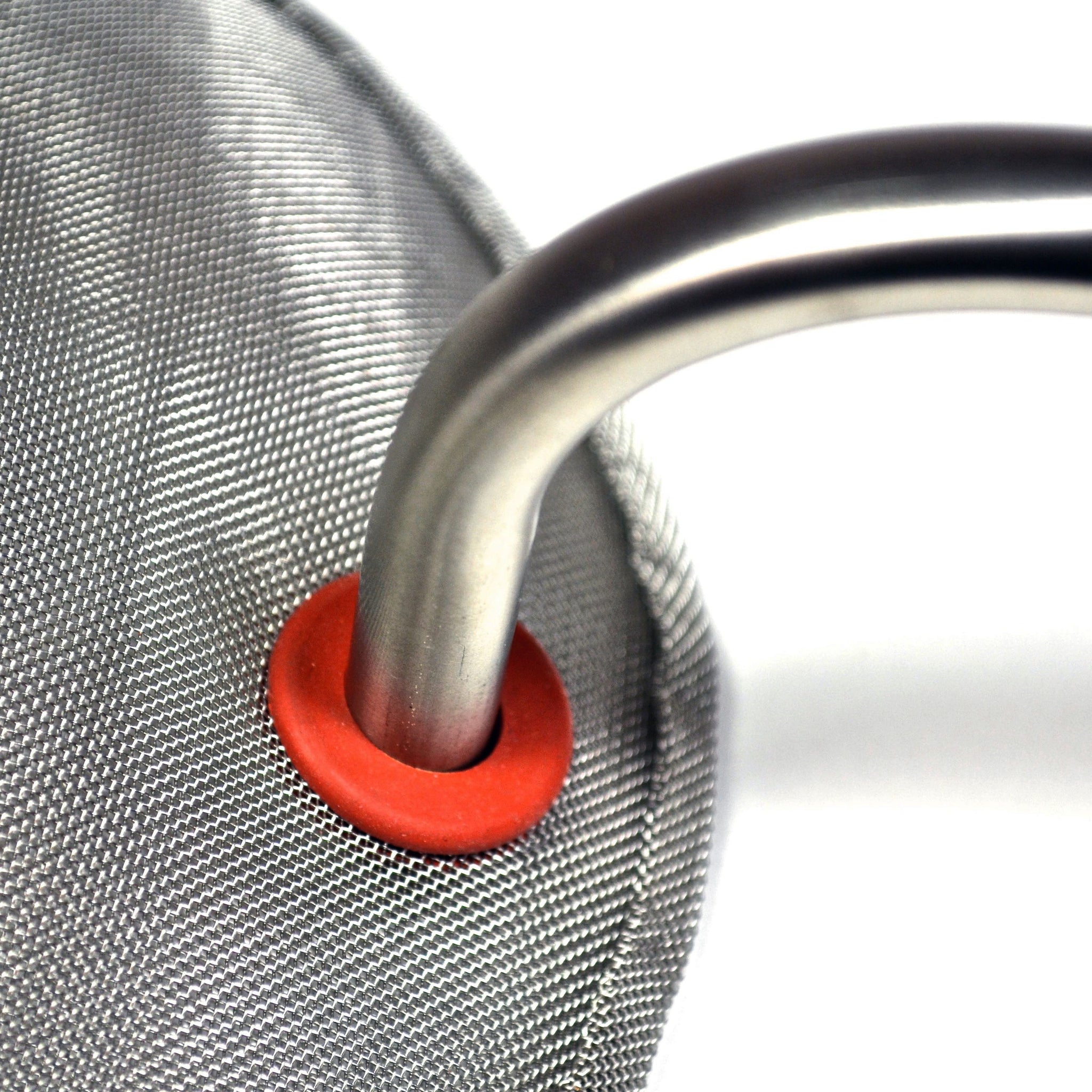

The silicone grommet provides a perfect seal around the dip tube and allows for quick and easy removal for cleaning. A quick 30 second spray with a hose is all it takes. We then allow the Hop Stopper to air dry. Refer to the video below:
Who uses the Hop Stopper?
Brewers worldwide (both professional and hobbyists) use the Hop Stopper. This includes brewers in all 50 United States, every continent except Antarctica, and dozens of countries including Australia, Belgium, Brazil, Canada, Czech Republic, Denmark, England, Finland, France, Greece, Hong Kong, Iceland, Ireland, Japan, Malta, New Zealand, Norway, Romania, Senegal, Singapore, South Africa, Spain, Sweden, Switzerland, Thailand.
What is the Hop Stopper made of?
The Hop Stopper mesh is made of 304 stainless steel (18-8 grade). The red o-ring is made of high temperature silicone that is FDA compliant and can withstand temperatures from -65F to +450F.
Hop Stopper 2.0 User's Manual
Hop Stopper 2.0 user's manual (2mb PDF)
The user's manual covers the following topics:
2. Using the Hop Stopper™ 2.0
3. Rinsing and Storing
4. Periodic Cleaning
5. Frequently Asked Questions
"Just wanted to let you know I used the new hop stopper 2.0 for the first time this morning and all I can say is wow. Well worth the investment and fixes all of the problems of the first version. I am very, very impressed and won't hesitate to recommend it to my friends with similar setups!" - Justin B.
"The Hop Stopper worked beautifully! This was the end running of a NEIPA with 8oz of cryo hops in the kettle. It cleaned up perfectly within about 5 minutes too! Thanks @theelectricbrewery!!" - tmarshall826 (See Instagram pictures)
"New hop filter from #theelectricbrewery and it does exactly what they claim. Full marks to Kal and his team!" - trignz (See Instagram pictures)
"Daaaaamn, that Hop Stopper 2.0 is awesome. Ran a constant flow out of the bk, as fast as i could go, based on my cooling water temp. Hose from bk to pump drained, closed the valve, ran it for another minute cracked open, got maybe another pint out of it. and that was it, i literally couldn't get any more volume out of the bk since there was nothing left!"
"Did a west coast ipa on sunday, 10.5 oz of hops in the kettle. Performed flawlessly."
"Used this again yesterday, 4.5 oz hops in a porter. Hop/break residue was caked/hardened to the hopstopper and the bottom of the kettle after draining and i don't mean in a bad way, more like 'all the liquid has been sucked out and there is nothing left'! I've actually reduced batch volumes by a half gallon or so because of how efficient it is at grabbing all the liquid. After kegging the first couple brews, i was all 'wtf, how come i have so much beer left over?
I used the 1.0 version for about 30 brews and i have to admit, it could be frustrating at times. The 2.0 version is almost a night and day difference, such a better design. I recently started using a conical for fermentation and bumped up my recipes by a half gallon or so to compensate for the 'lost volume' between the racking port and the conical bottom but with the Hop Stopper 2.0, I had to dial everything back to the original volumes since I am getting more wort out of the bk now compared to the 1.0.'" - Forum user itsnotrequired
"Hop Stopper 2.0 deep in the boil kettle worked like a champ. I was a little nervous not doing a whirlpool - that meant one pass through the counterflow chiller but at 1 GPM everything worked perfect - straight to the conical. 200F to 60F with in-line O2 crystal clear." - east_millcreek_brewing (see Instagram video)
"I have used version 2.0 twice now. I was a version 1.0 user but had mixed results. I have brewed twice with hop stopper 2.0. First batch was 10 oz of whole hops in the 20g kettle. Second batch was a ~6 oz pellet hops batch. In both cases, version 2.0 worked absolutely perfectly. I could not believe how dry the pellet hops were with very little if any wort left behind. I did not slow the wort transfer down at all, and I can chill at a pretty crisp pace. Cleanup was easy. In summary, version 2.0 is absolutely a joy to use and functions perfectly for me. Great work and a no brainer purchase in my mind. UPDATE: The Hop Stopper 2.0 has continued to function admirably. On the brewing side I have a very close to Kal clone of the electric brewery — Blichmann original kettles, etc. I originally used the hop stopper 1.0 for at least a year. It was a mixed bag with the shortcomings being always air that would enter the pump while liquid was in the BK at or well above the indentation that supports the screen in the mash tun. I tried the blichmann hop stopper which let way too much stuff into the fermenter. I also used the original wort filter from brewersfriend. It worked great when it was before the pump, except on various hoppy beers that would fill it. Then you were in quite a pickle to resolve the situation. A hot mess. Placing it after the pump resolved those problems but also made it apparent that it caught far less hops/trub in this configuration. Way too much getting into the fermenter. With the original hop stopper I did significantly slow the flow rates when the wort volume was low. I suspect that even while doing this the code shape simply did not allow enough surface area when the wort level was below the upper screen to prevent air from infiltrating. I suspect the very wide and flat base of version 2.0 makes up for this by allowing far more access for the last 1-2 gallons of wort to enter (from which direction I am not sure). So far I have nothing but success with the 2.0 version with whole hops and pellet." - Forum user mvakoc
"Great job guys! Put our new Hop Stopper 2.0 in today on a 1.5 bbl (46.5 gal) batch. Nearly two pounds of hops and no trouble whatsoever. Cleaned off in less than a minute." - Saints Row Brewing (See Instagram pictures)
"Hazy IPA had alllooottttttt of hops today. Pellets and leaf. Hop stopper 2.0 had no struggles. Here is how it came out of the kettle." - TontoAleWorks (See Instagram picture)
"Truly remarkable piece of kit Kal. First brew since the summer and the Hop Stopper exceeded my expectations!!" - Darrel J Pemberton (See Instagram picture)
"Super happy with the Hop Stopper 2.0." - deadsquid (See Instagram picture)
"Trying out The Electric Brewery's Hop Stopper 2.0 XL with 68 gal batch with 20oz of hops. Performance was excellent. Cut approximately 15 mins from the chilling process. Next brew will have 36oz of hops. Will be very interest in seeing how it works. Nice product Kal." - paul.card4523 (See Instagram picture)
"The hopstopper 2.0 is KILLER! @theelectricbrewery this thing is amazing. Drained every drop of my 13 gal batch with no issues. 10oz of hops in this American IPA boil. Whirlpooling is a thing of the past!" - akroessler (See Instagram picture)
"Impressed with v2 of the hopstopper. Noticeable difference @theelectricbrewery - Granted this is not a big IPA but I still can tell it drained better without throttling it down at all. 👍🏼🍻" - anticlimaddox (See Instagram picture)
"I bought a Hop Stopper last week and used it last weekend to brew a Belgian Dubbel. This was the first time I did not use a hop bag for my hop additions and on top of that I used some pureed organic raisins near the end of the boil. I'm happy to report that the hop stopper left all the hops, raisin fiber and hot break in the kettle! I have an American Brown on the itinerary with whole and leaf hops and I have no doubt now the Hop Stopper will handle that with ease too. It's nice not to have to mess with those bags. Thank you for a good product and especially for your quick response time." - Harvey H.
"Did a west coast ipa on sunday, 10.5 oz of hops in the kettle. Performed flawlessly." - Forum user itsnotrequired
"Cannot believe how well these @theelectricbrewery #hopstoppers work.. 14.5 oz in this IIPA and it sucked it dry till the last oz, wort still clean as. All the malt from @voyager_craft_malt and trying their SM40 in this batch. Love the color 👍🏽❤️”. - gbizzle1979 (See Instagram picture)
"Hop Stopper works as advertised. Drained to within a half pint of dead empty, and no hop material I could see made it to the fermentor. This was a pound of hops in a 6 gallon batch!”. - chixbeachmadsciencelabs (See Instagram picture)
"Had a brew day today and tried out some new additions to my setup. Turns out the Hop Stopper 2.0 works an absolute treat. 100g of Hallertau pellets in 40L, 50% wheat malt, and not a single drop of wort left in the kettle. I've tried out a few filtering devices and this is easily the best. Great product @theelectricbrewery 👍”. - thezymurgyguy (See Instagram pictures)
"Hop Stopper worked as advertised! Brewed Electric Hop Candy (NEIPA) and pegged the numbers”. (See Instagram picture)
Visit our official Hop Stopper product thread in our forum.
Questions? Email us at HopStopper@TheElectricBrewery.com
