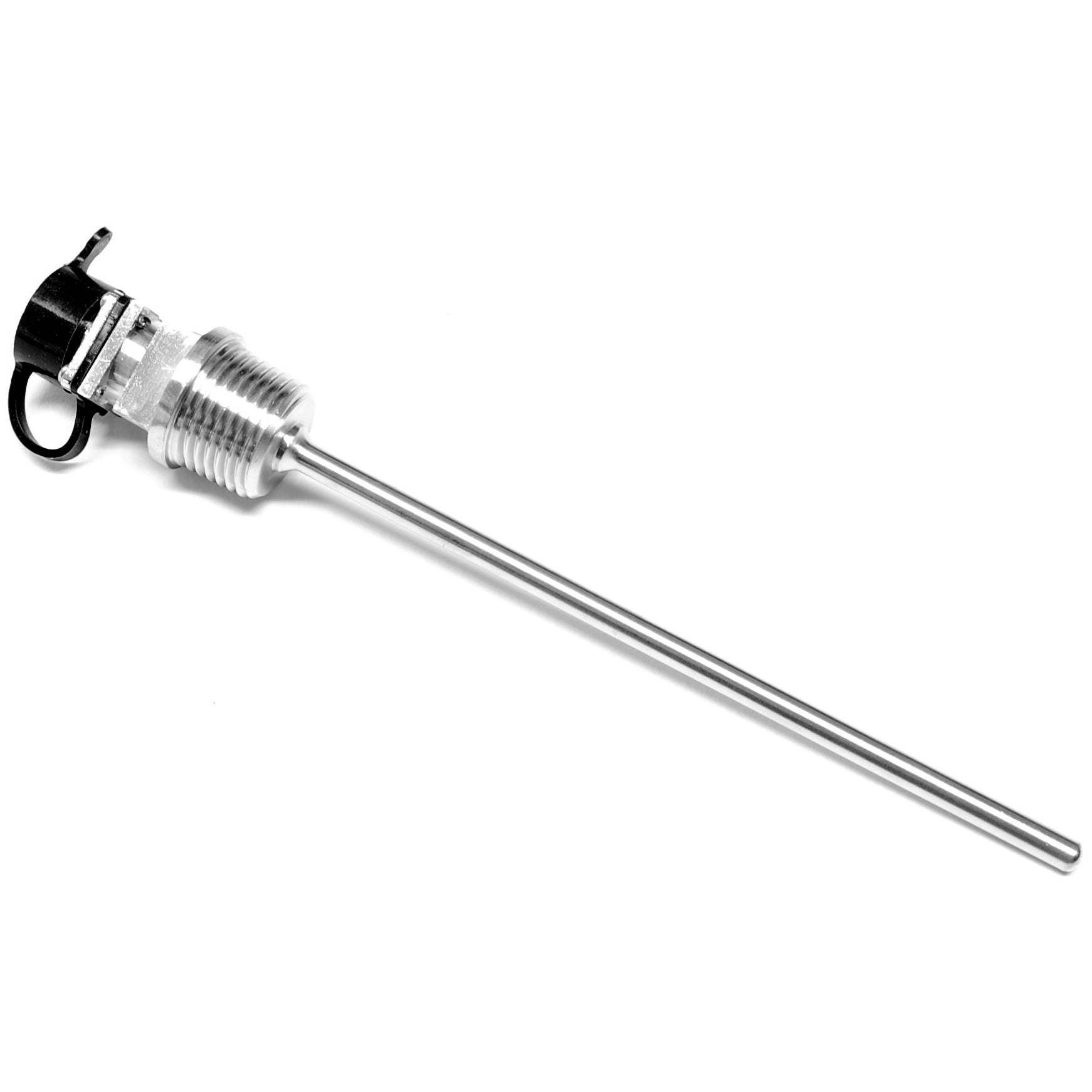

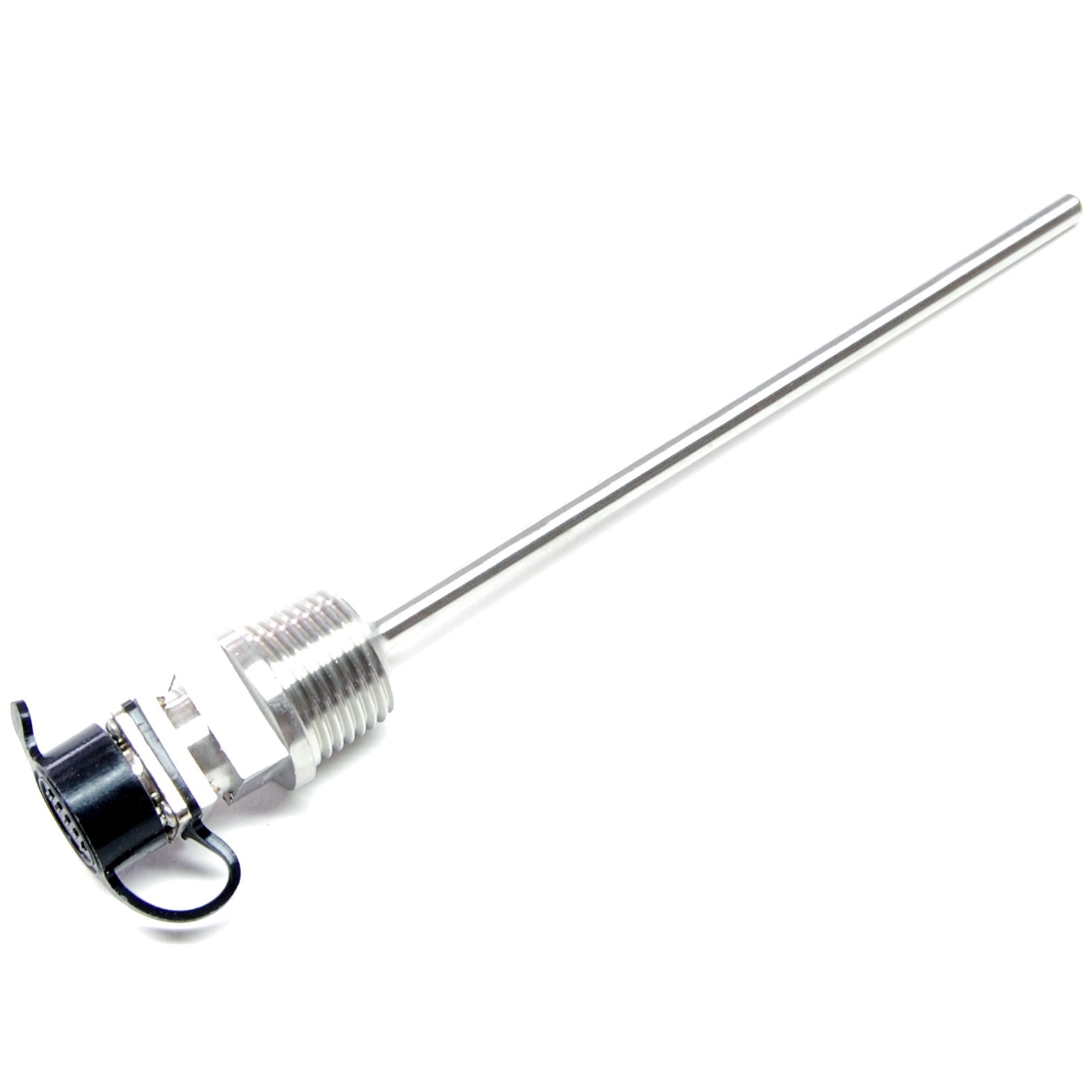

Temperature probe tip, 1/2" NPT, 6" probe length
PROBE1/2NPT-6
$33.95 USD
NPT (tapered) thread probes are normally attached directly to plumbing, or existing kettle fittings. Stainless steel probe body. Mounts into 1/2" NPT thread (as well as 1/2" BSPP and BSPT). 6" long probe (measured from the back part of the threads to the probe tip). Detachable connector with a spring lock. Cable sold separately. Includes water-resistant/splash-proof silicone temperature probe cap.
Our temperature probes use 3-wire RTD (resistive thermal device) Pt100 sensors instead of 2-wire K-type thermocouples (TC) as they offer greater accuracy over the brewing temperature range. RTDs also remain more accurate over time (less drift which means less re-calibration). To use, connect to a device that supports 3-wire RTD temperature probes such as our Electric Brewery Control Panels. Cable sold separately.
Are temperature probe tips interchangeable?
Yes. Any of our temperature probe tips can be used with any of our temperature probe cables.
Specifications
Sensor: RTD (resistive thermal device) Pt100
Max sensor temperature: 248 °F (120 °C)
Accuracy: Class A (+/- 0.15°C at 0°C) per International Electrotechnical Commission (IEC) 60751
Alpha coefficient: 0.003850
